Name: Emko ESM-1520-N.8.11.0.2/01.00/2.0.0.0 Bang-bang, PID Temperature controller Pt100 -50 up to +400 °C 5 A relay (L x W x
Brand: Emko
SKU: 3031455
Availability: InStock

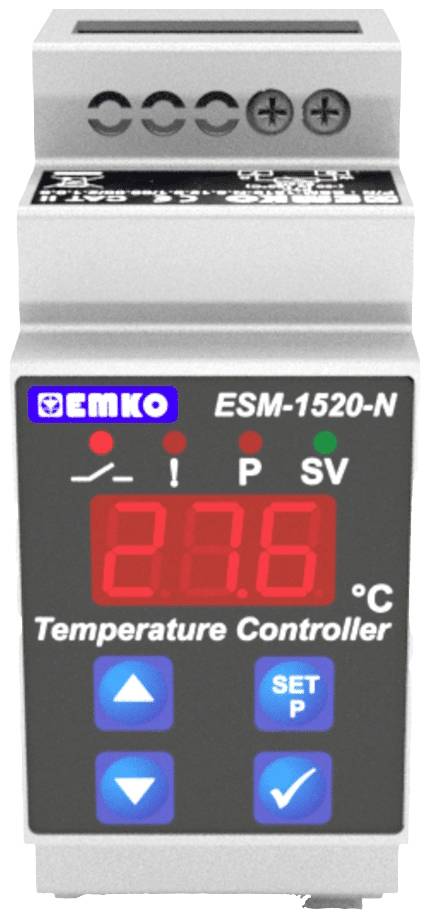

A digital temperature control unit with display, model 'EMKO ESM-1520-N', shows the current temperature in Celsius.

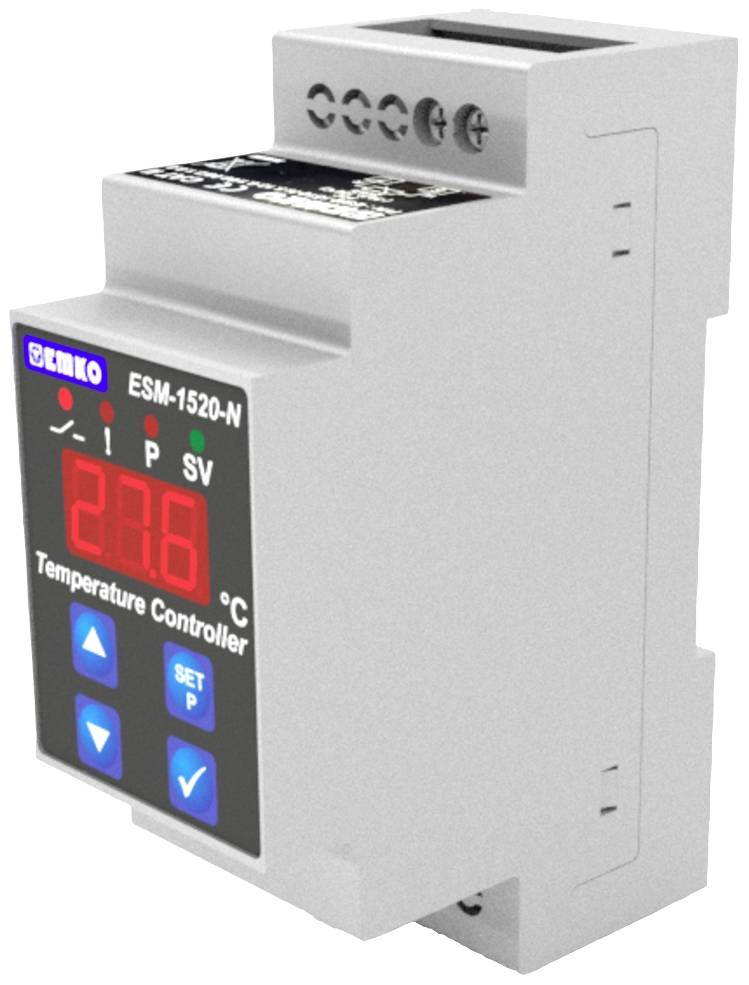

Temperature controller with digital display and control buttons for settings. Housing designed for mounting, suitable for industrial applications.

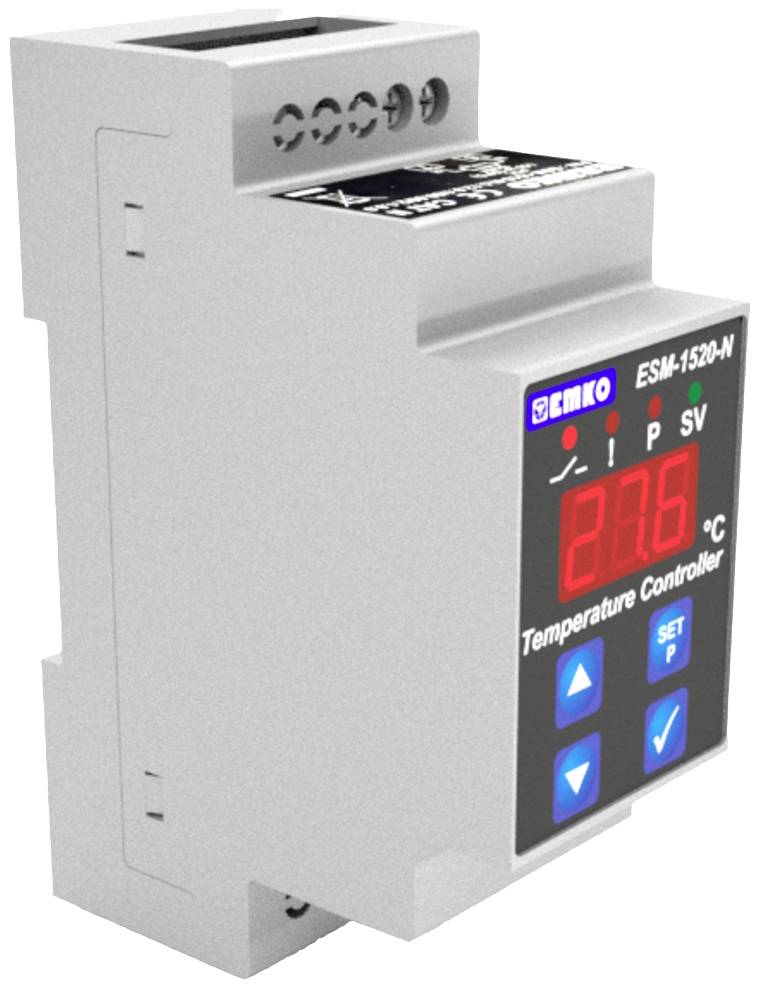

A temperature controller with a digital display shows '88.8' degrees Celsius. Four control buttons are visible underneath.

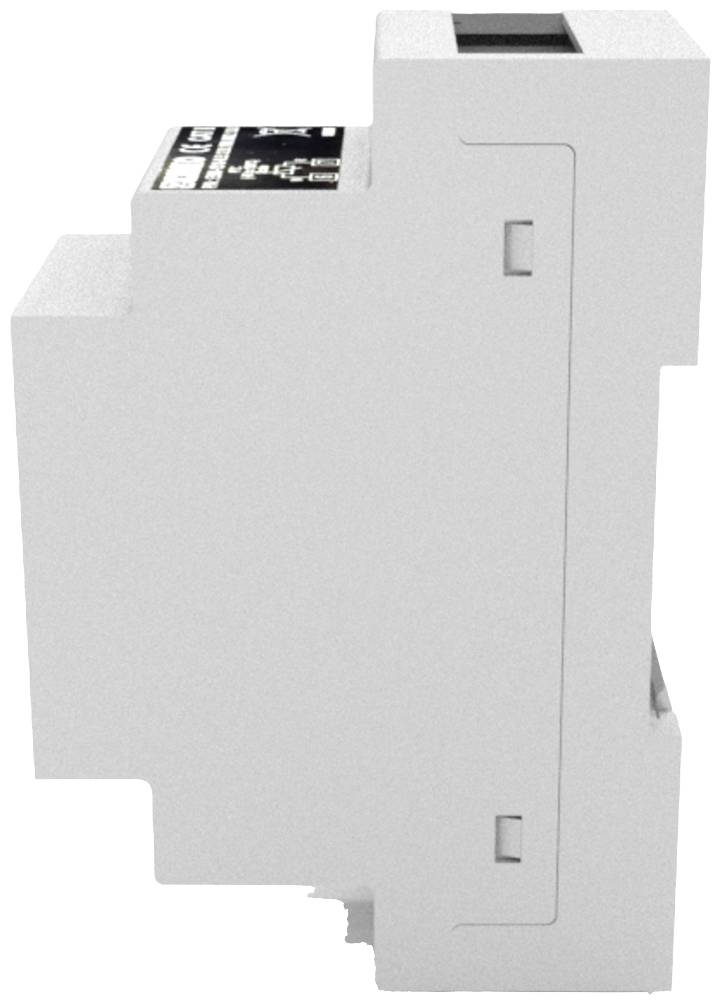

Side view of a white electronic device with switches and ports on the top surface.

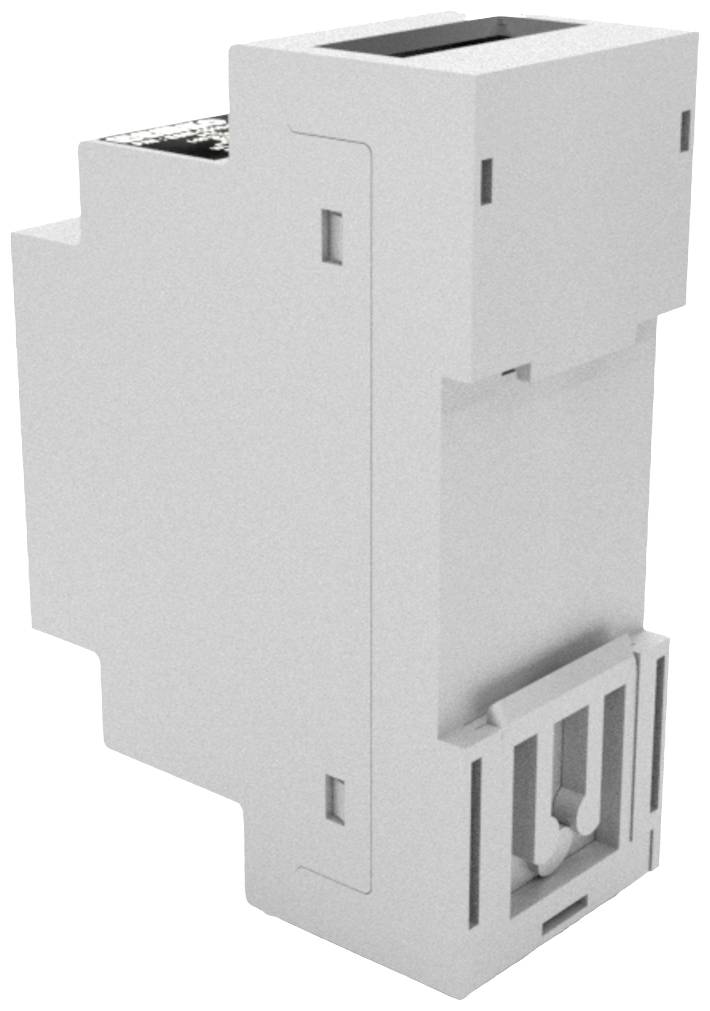

A white electrical component designed for mounting on a DIN rail, typically used in control cabinets, with plug connections at the top and bottom.

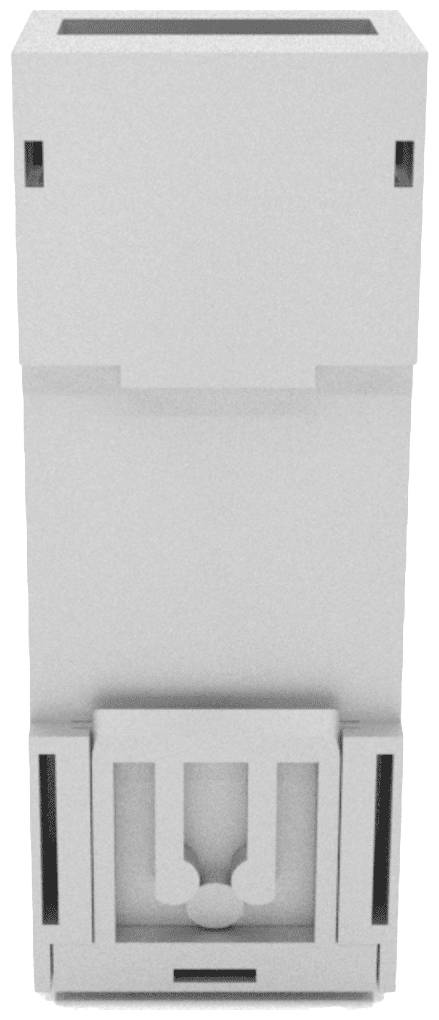

A grey, rectangular, tower-shaped plastic container with a structured design and vertical slots on the sides.

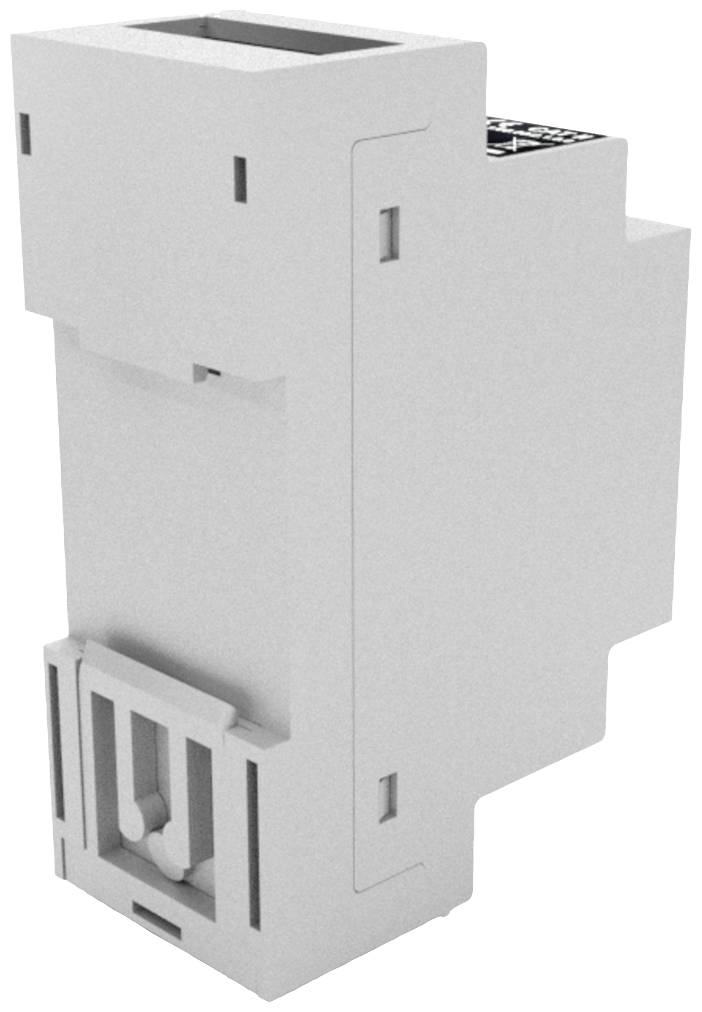

A grey electrical component, vertically positioned, with rectangular cutouts and connections, likely for a control cabinet.

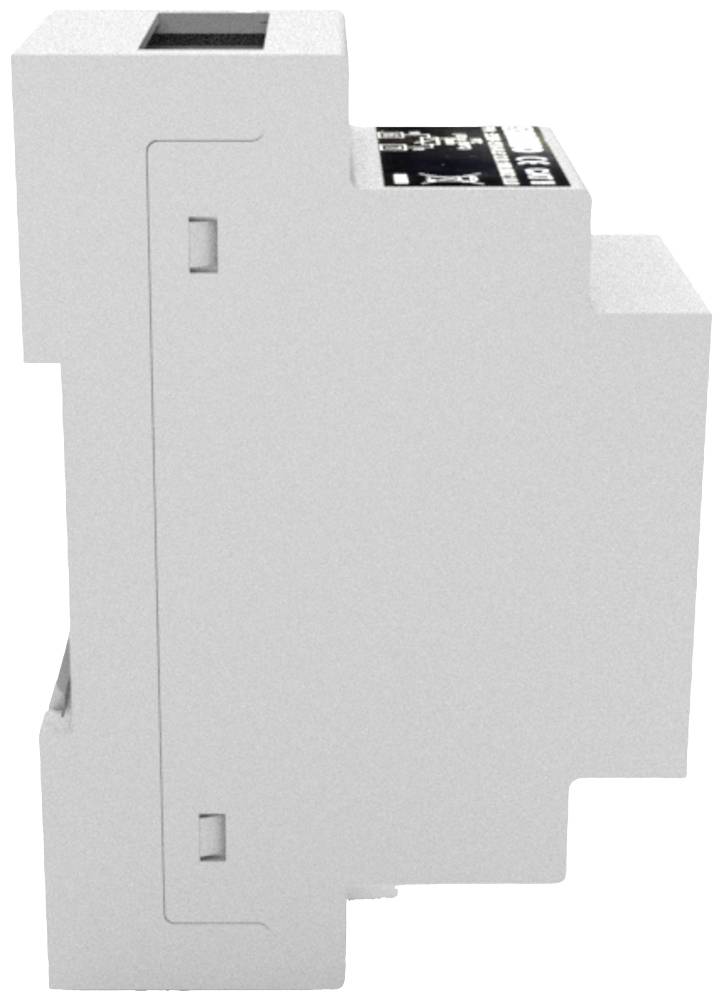

Side view of a white electronic device with multiple ports on the top.

1/8

Product type

Temperature controller

Thermostat type

Bang-bang, PID

Operating voltage

30 V

Max. temperature reading

+400 °C

Outputs (thermostats)

5 A relay

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Wed 4 Nov

4 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 75.99 / piece)

€ 75.99

incl. VAT

Only 4 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Operating temperature: -20°C to +70 °C
Accuracy 1%
9 mm red 3-digit LED display
Overvoltage category II
Pollution level II

Product type: Temperature controller

Type: ESM-1520-N.8.11.0.2/01.00/2.0.0.0

Thermostat type: Bang-bang, PID

Operating voltage: 30 V

Reading range: -50 up to +400 °C

Max. temperature reading: +400 °C

Min. temperature reading: -50 °C

Outputs (thermostats): 5 A relay

No. of relay outputs: 1

Dim: (L x W x H) 61.2 x 35 x 90 mm

Factory colour: White

Height: 90 mm

Length: 61.2 mm

Width: 35 mm

: IP20

Sensor type: Pt100

Manufacturer part #: ESM-1520-N.8.11.0.2/01.00/2.0.0.0

Mounting type: DIN rail

Sensor type: PT100

Weight: 140 g

Variants(All information include VAT, plus shipping costs)

Sensor type

Max. temperature reading

Sensor type

Operating voltage

Emko ESM-1520-N.8.11.0.2/01.00/2.0.0.0 Bang-bang, PID Temperature controller Pt100 -50 up to +400 °C 5 A relay (L x W x H) 61.2 x 35 x 90 mm

Item no:3031455

Fast track dispatch on Wed 4 Nov

4 Piece(s)Conrad Electronic

This article

Pt100

+400 °C

PT100

30 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 75.99^*

Emko ESM-1520-N.2.05.0.2/01.00/2.0.0.0 Bang-bang, PID Temperature controller J 0 up to +800 °C 5 A relay (L x W x H) 61.2 x 35 x 90 mm

Item no:3031446

Available soon

Conrad Electronic

+800 °C

24 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 114.99^*

Emko ESM-1520-N.2.11.0.2/01.00/2.0.0.0 Bang-bang, PID Temperature controller Pt100 -50 up to +400 °C 5 A relay (L x W x H) 61.2 x 35 x 90 mm

Item no:3031448

Fast track dispatch on Wed 4 Nov

3 Piece(s)Conrad Electronic

Pt100

+400 °C

PT100

24 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 114.99^*

Emko ESM-1520-N.2.12.0.2/01.00/2.1.0.0 Bang-bang, PID Temperature controller PTC -50 up to +150 °C 5 A relay (L x W x H) 61.2 x 35 x 90 mm

Item no:3031449

Available soon

Conrad Electronic

PTC

+150 °C

PTC

24 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 119.99^*

Emko ESM-1520-N.2.14.0.2/01.00/2.0.0.0 Bang-bang, PID Temperature controller Pt1000 -50 up to +400 °C 5 A relay (L x W x H) 61.2 x 35 x 90 mm

Item no:3031450

Available soon

Conrad Electronic

Pt1000

+400 °C

Pt1000

24 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 114.99^*

Emko ESM-1520-N.2.18.0.2/01.00/2.3.0.0 Bang-bang, PID Temperature controller NTC -50 up to +100 °C 5 A relay (L x W x H) 61.2 x 35 x 90 mm

Item no:3031451

Available soon

Conrad Electronic

NTC

+100 °C

NTC

24 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 119.99^*

Emko ESM-1520-N.5.05.0.2/01.00/2.0.0.0 Bang-bang, PID Temperature controller J 0 up to +800 °C 5 A relay (L x W x H) 61.2 x 35 x 90 mm

Item no:3031439

Available soon

Conrad Electronic

+800 °C

230 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 83.99^*

Emko ESM-1520-N.5.10.0.2/01.00/2.0.0.0 Bang-bang, PID Temperature controller K 0 up to +999 °C 5 A relay (L x W x H) 61.2 x 35 x 90 mm

Item no:3031440

Fast track dispatch on Wed 4 Nov

4 Piece(s)Conrad Electronic

+999 °C

230 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 83.99^*

Emko ESM-1520-N.5.11.0.2/01.00/2.0.0.0 Bang-bang, PID Temperature controller Pt100 -50 up to +400 °C 5 A relay (L x W x H) 61.2 x 35 x 90 mm

Item no:3031441

Fast track dispatch on Wed 4 Nov

9 Piece(s)Conrad Electronic

Pt100

+400 °C

PT100

230 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 83.99^*

Emko ESM-1520-N.5.14.0.2/01.00/2.0.0.0 Bang-bang, PID Temperature controller Pt1000 -50 up to +400 °C 5 A relay (L x W x H) 61.2 x 35 x 90 mm

Item no:3031444

Fast track dispatch on Wed 4 Nov

1 Piece(s)Conrad Electronic

Pt1000

+400 °C

Pt1000

230 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 57.99^*

Documents & Downloads

Datasheet

Datasheet 3031455 Emko ESM-1520-N.8.11.0.2/01.00/2.0.0.0 Bang-bang, PID Temperature controller Pt100 -50 up to +400 °C 5 A relay (L x W x

User & Safety Instructions

User & Safety Instructions 3031455 Emko ESM-1520-N.8.11.0.2/01.00/2.0.0.0 Bang-bang, PID Temperature controller Pt100 -50 up to +400 °C 5 A relay (L x W x

Description

The ESM-1520N series temperature controllers are designed to measure and control the temperature. With its on/off control form, the heating and cooling regulation form and the easy-to-operate properties, they can be used in many applications.
