Name: Emko ESM-3700-N.8.20.00/00.00/0.0.0.0 Process display
Brand: Emko
SKU: 2352337
Availability: InStock

Highlights & Details

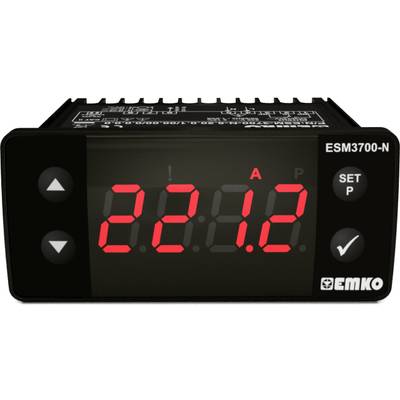

Emko ESM-3700-N.8.20.00/00.00/0.0.0.0 Process display

4-digit process display
Universal measuring input for 0-10 V, 0-1 V, 0-60 mV, 0-20 mA, 4-20 mA
Scalable from -1999 to 9999
Adjustable decimal point
Storage of minimum and maximum values
Minimum and maximum values can also be set as permanent display
Optionally with alarm output 5 A or SSR
Password protection for program settings

Technical specifications

Product type: Process display

Reading type: Amperage
DC current
DC voltage

Reading range (min.): 0 V
0 A
4 mA

Type: ESM-3700-N.8.20.00/00.00/0.0.0.0

Reading range (max.): 1 V
10 V
20 mA

Display technology: LED

: Front: IP65 / connection: IP20

Recess width: 76 mm

Display (counts): 9999

Recess height: 35 mm

Operating voltage: 10 V DC
12 V DC
24 V DC
30 V DC

Dim: (L x W x H) 71 x 76 x 35 mm

Weight: 200 g

Display lighting: red

Recess depth: 65 mm

Factory colour: Black

Width: 76 mm

Height: 35 mm

Length: 71 mm

Frame width: 7.6 cm

Frame height: 3.5 cm

Interfaces: RS485

Interfaces: Modbus RTU

Documents & Downloads

Datasheet

Datasheet 2352337 Emko ESM-3700-N.8.20.00/00.00/0.0.0.0 Process display

User & Safety Instructions

User & Safety Instructions 2352337 Emko ESM-3700-N.8.20.00/00.00/0.0.0.0 Process display

Description

Digital process displays of the ESM-3700-N series are used to measure a process value. They can be used in many applications with their simple operation, alarm output and universal measuring input.

With the separately available PROKEY stick the program settings can be transferred to other devices, so the parameters do not have to be set individually on each device. With the separately available RS-485 MODULE stick, the process display can be extended by a RS485 Modbus RTU interface.
