Emko ESM-7700.1.20.2.1/00.00/0.0.0.0 Process display

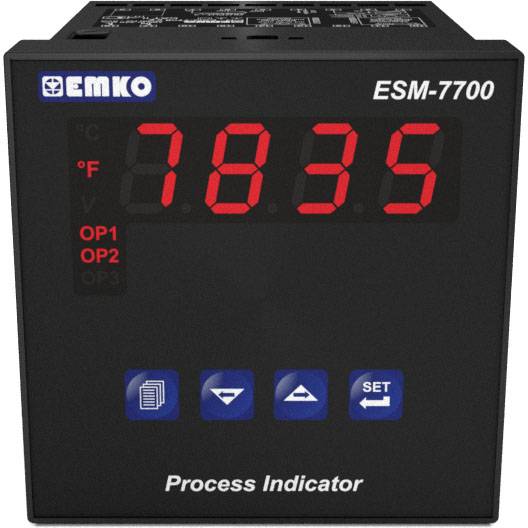

Digital Process Indicator ESM-7700 displays the temperature '78.35°F'. Blue function keys below for control.

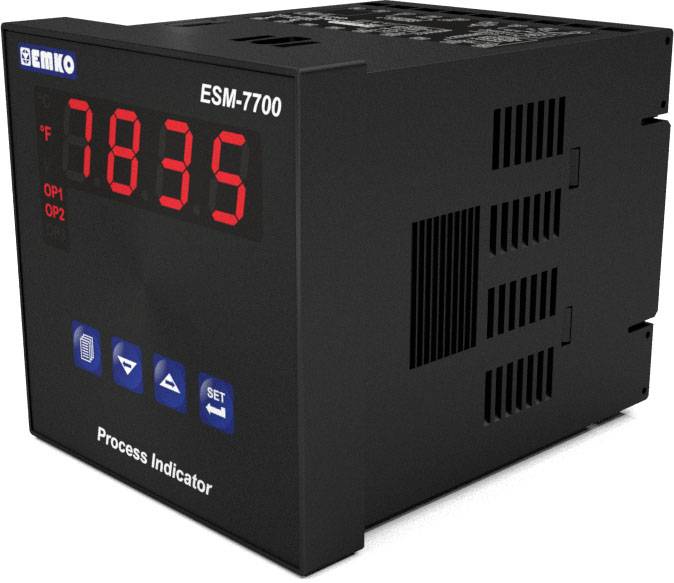

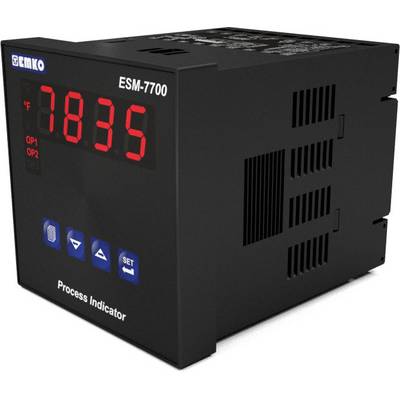

A digital process indicator displays the temperature '7835 °F'. Four buttons below are used for control and adjustment.

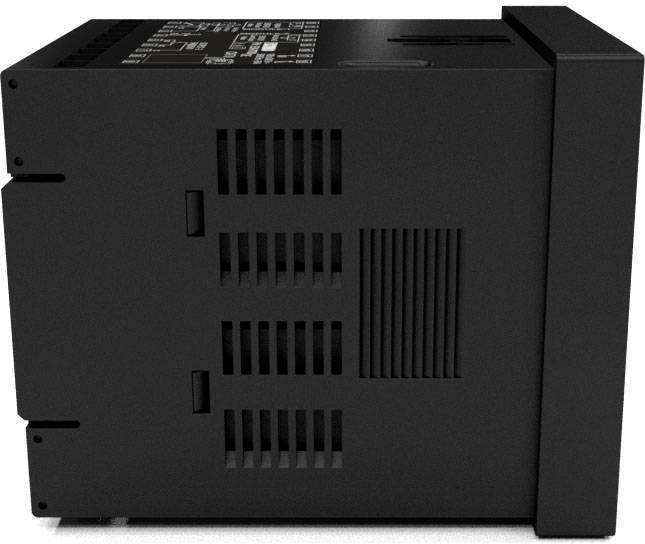

A black, rectangular electronic device with ventilation slots on the side and technical information on the top surface.

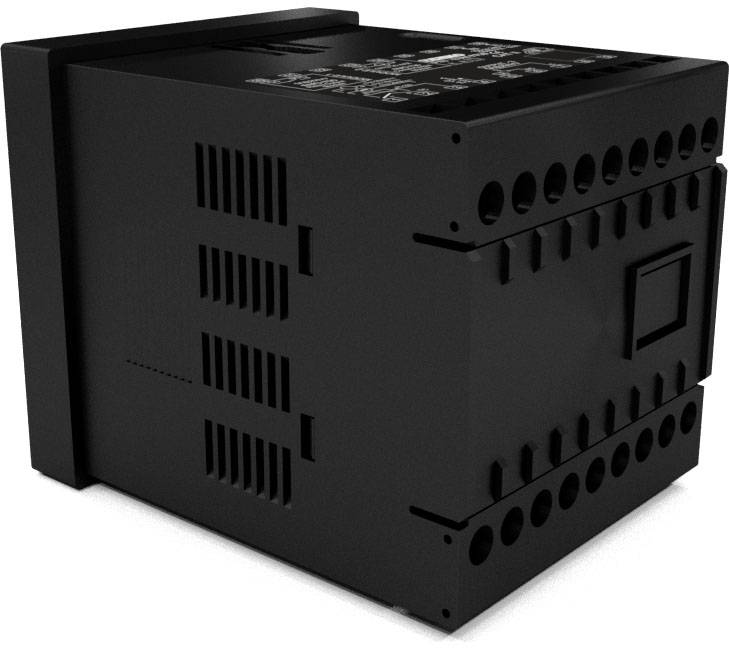

Black electronic device with multiple ports on the front, suitable for industrial applications and control systems.

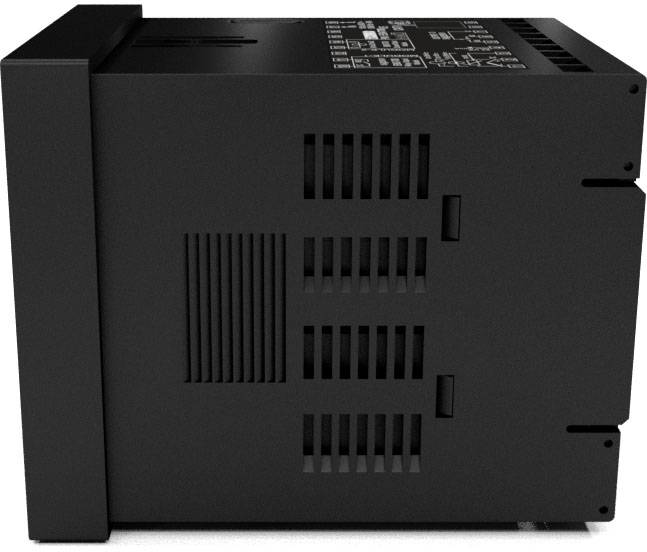

A black electronic enclosure with ventilation slots and control elements on the top surface. Suitable for industrial applications.

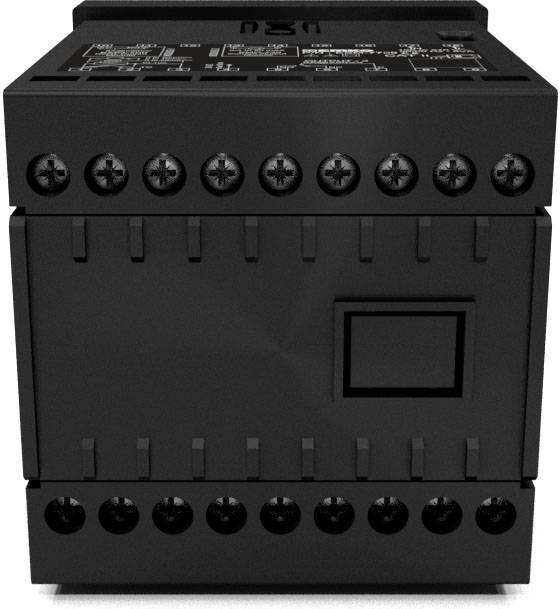

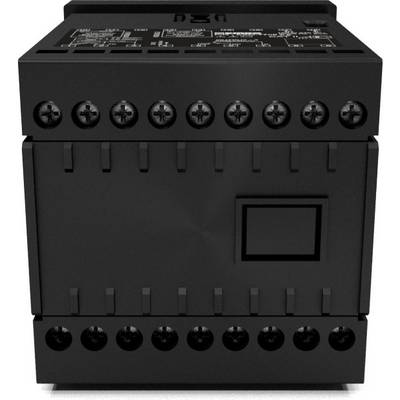

A black electronic device with multiple screw terminals on the front, likely for electrical installations.

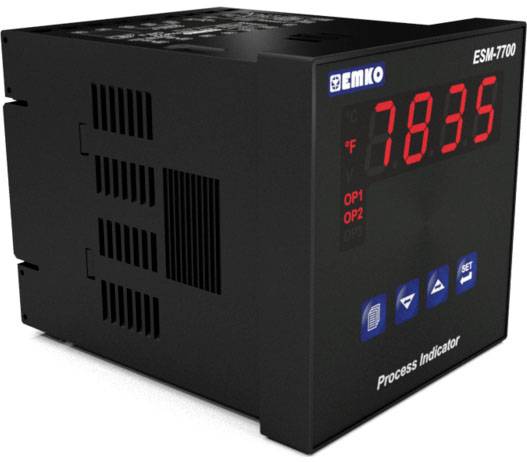

Temperature display of a process indicator by EMKO ESM-7700, showing '7835 °F'; contains buttons for settings and options.

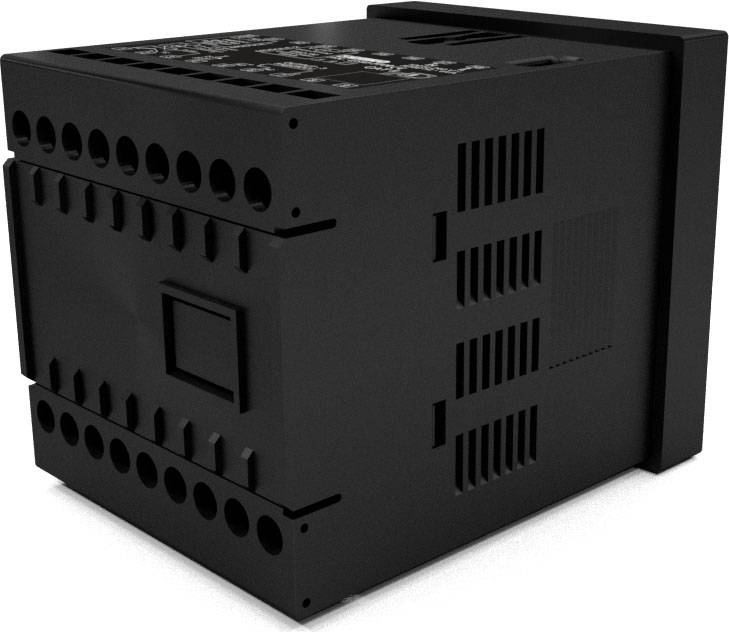

Black electronic device with ventilation slots, square button on the front, suitable for industrial applications.
1/8
Datasheet (PDF)
EAN:
Part number:
Item no:
Available soon
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 189.99 / piece)
€ 189.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Emko Process display

  • 4-digit process display
  • Universal measuring input for Pt100, L, J, K, R, S, T, B, E, N, C, 0-50 mV, 0-10 V, 0/4-20 mA
  • Two-point or multi-point calibration Analogue signals
  • Alarm values
  • Hysteresis
  • Offset values
  • Relay output
  • Password protection for program settings
  • Communication interface
  • 2 slots for EMO-700 series output expansion modules

Technical specifications

Product type

Process display

Reading type

Temperature

DC voltage

Amperage

DC current

Reading range (min.)

0 V

0 mA

4 mA

-200 °C

Type

ESM-7700.1.20.2.1/00.00/0.0.0.0

Reading range (max.)

10 V

20 mA

5 V

2300 °C

Display technology

LED

Front: IP65 / connection: IP20

Recess width

72 mm

Display (counts)

9999

Recess height

72 mm

Operating voltage

115 V AC

230 V AC

Dim

(L x W x H) 88 x 72 x 72 mm

Weight

270 g

Display lighting

red

Recess depth

76 mm

Factory colour

Black

Width

72 mm

Height

72 mm

Length

88 mm

Frame width

72 mm

Frame height

7.2 cm

Interfaces

1 x RS 485 Modbus RTU

Interfaces

Analogue amperage

Documents & Downloads

Datasheet

Datasheet 2352556 Emko ESM-7700.1.20.2.1/00.00/0.0.0.0 Process display

User & Safety Instructions

User & Safety Instructions 2352556 Emko ESM-7700.1.20.2.1/00.00/0.0.0.0 Process display

Description

ESM-7700 is a process display for temperature or analogue signal. In the basic version, the process display has a universal input for temperature sensors and analogue signal, communication interface and a relay output. The display can be expanded with output modules via two slots. The EMO-700 output modules relay output, SSR output, transistor output and 0/4-20 mA analogue output are available.
