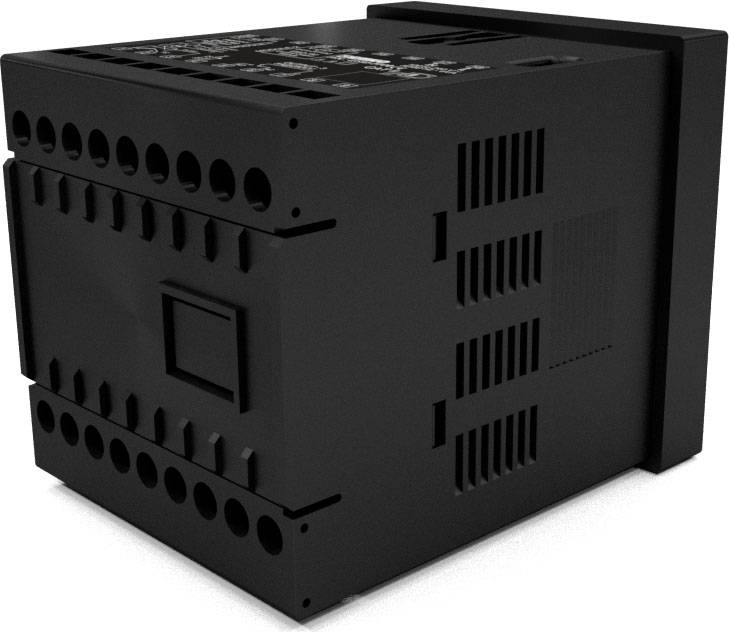

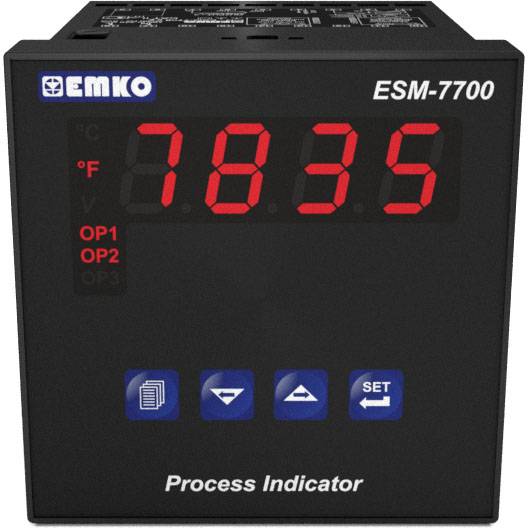

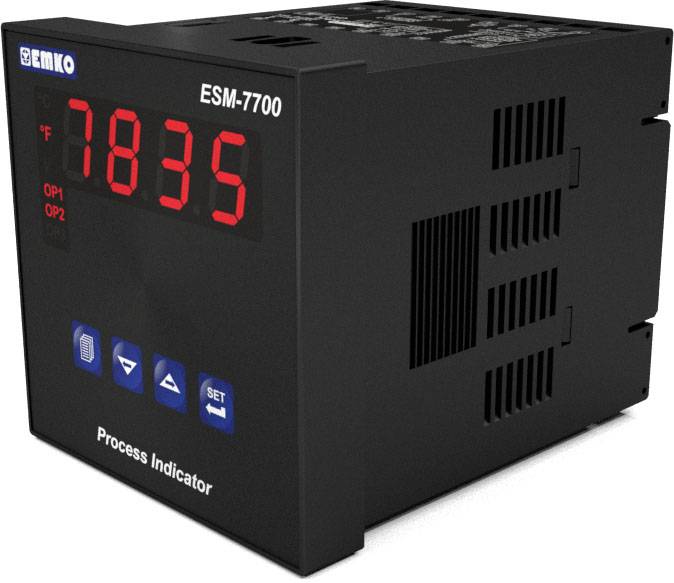

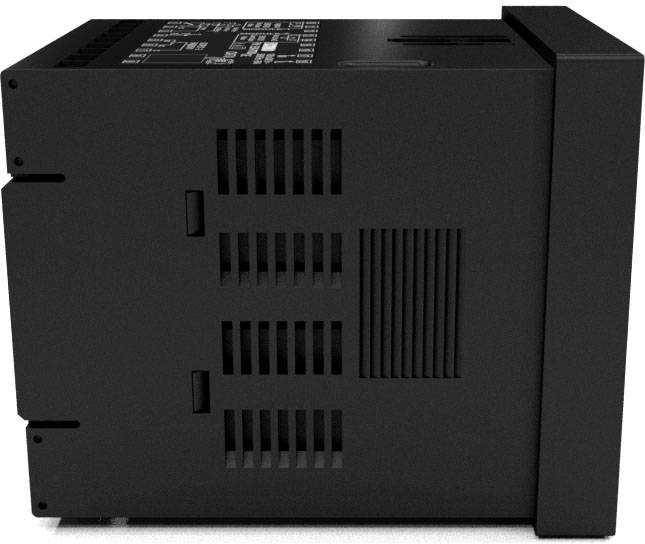

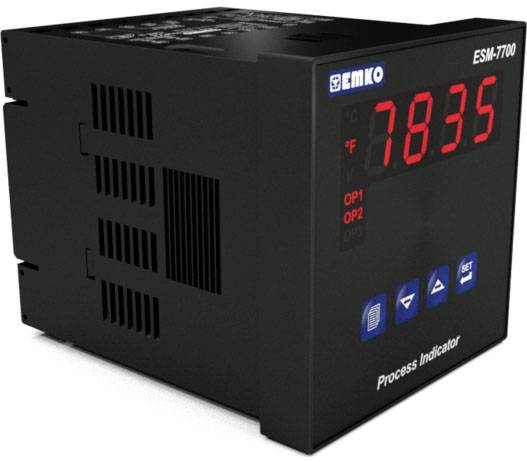

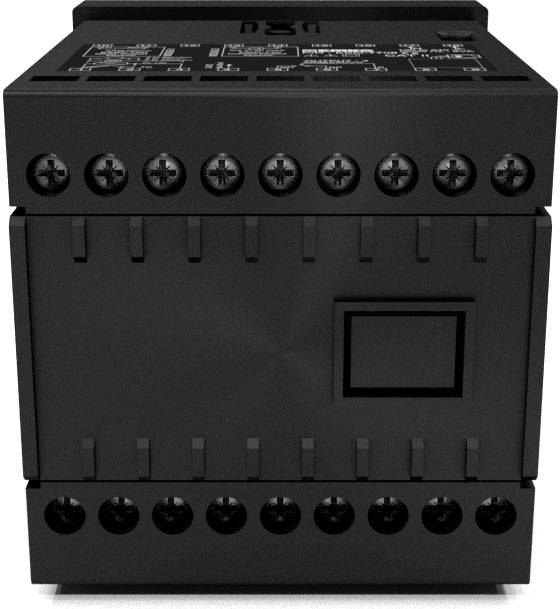

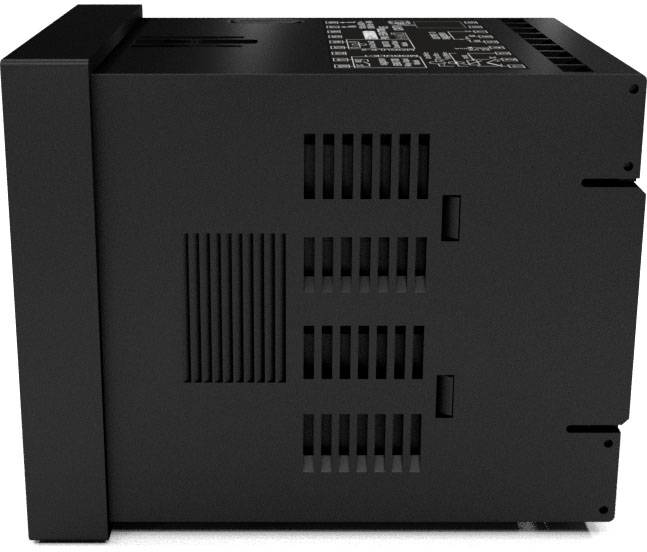

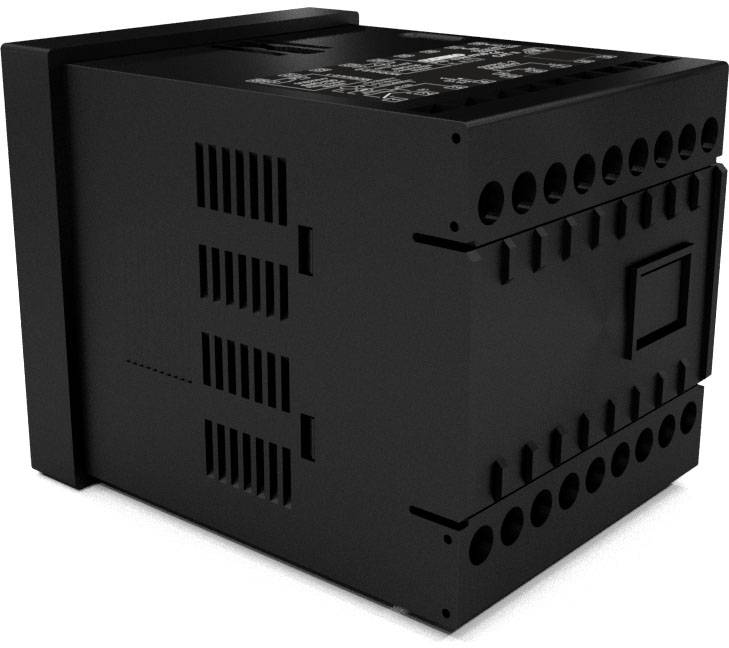

Emko ESM-7700.2.20.2.1/00.00/0.0.0.0 Process display
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 189.99 / piece)
€ 189.99
incl. VAT
14-day return policy included
Highlights & Details
Emko Process display
- 4-digit process display
- Universal measuring input for Pt100, L, J, K, R, S, T, B, E, N, C, 0-50 mV, 0-10 V, 0/4-20 mA
- Two-point or multi-point calibration Analogue signals
- Alarm values
- Hysteresis
- Offset values
- Relay output
- Password protection for program settings
- Communication interface
- 2 slots for EMO-700 series output expansion modules
Technical specifications
- Product type
Process display
- Reading type
Temperature
DC voltage
Amperage
DC current
- Reading range (min.)
0 V
0 mA
4 mA
-200 °C
- Type
ESM-7700.2.20.2.1/00.00/0.0.0.0
- Reading range (max.)
10 V
20 mA
5 V
2300 °C
- Display technology
LED
Front: IP65 / connection: IP20
- Recess width
72 mm
- Display (counts)
9999
- Recess height
72 mm
- Operating voltage
24 V DC/AC
- Dim
(L x W x H) 88 x 72 x 72 mm
- Weight
270 g
- Display lighting
red
- Recess depth
76 mm
- Factory colour
Black
- Width
72 mm
- Height
72 mm
- Length
88 mm
- Frame width
72 mm
- Frame height
7.2 cm
- Interfaces
1 x RS 485 Modbus RTU
- Interfaces
Current (4 - 20 mA)
Documents & Downloads
Datasheet
Datasheet 2352553 Emko ESM-7700.2.20.2.1/00.00/0.0.0.0 Process display
User & Safety Instructions
User & Safety Instructions 2352553 Emko ESM-7700.2.20.2.1/00.00/0.0.0.0 Process display
Description

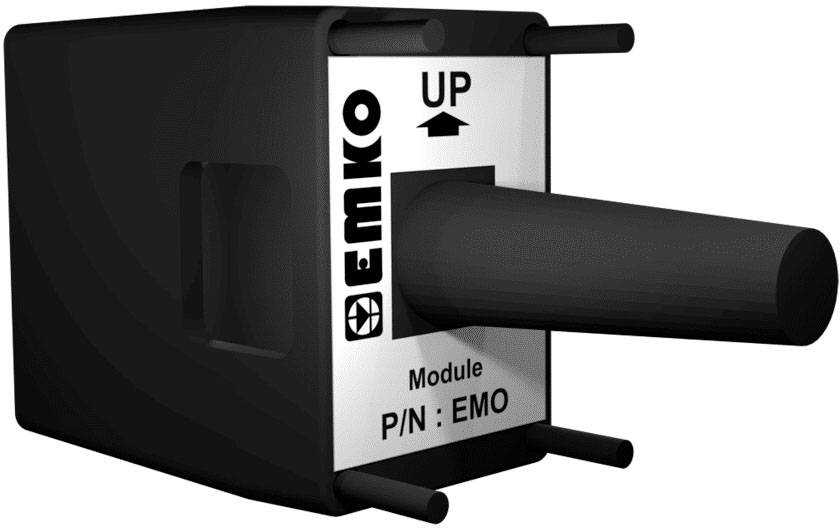

ESM-7700 is a process display for temperature or analogue signal. In the basic version, the process display has a universal input for temperature sensors and analogue signal, communication interface and a relay output. The display can be expanded with output modules via two slots. The EMO-700 output modules relay output, SSR output, transistor output and 0/4-20 mA analogue output are available.
This text is machine translated.
This text is machine translated.
