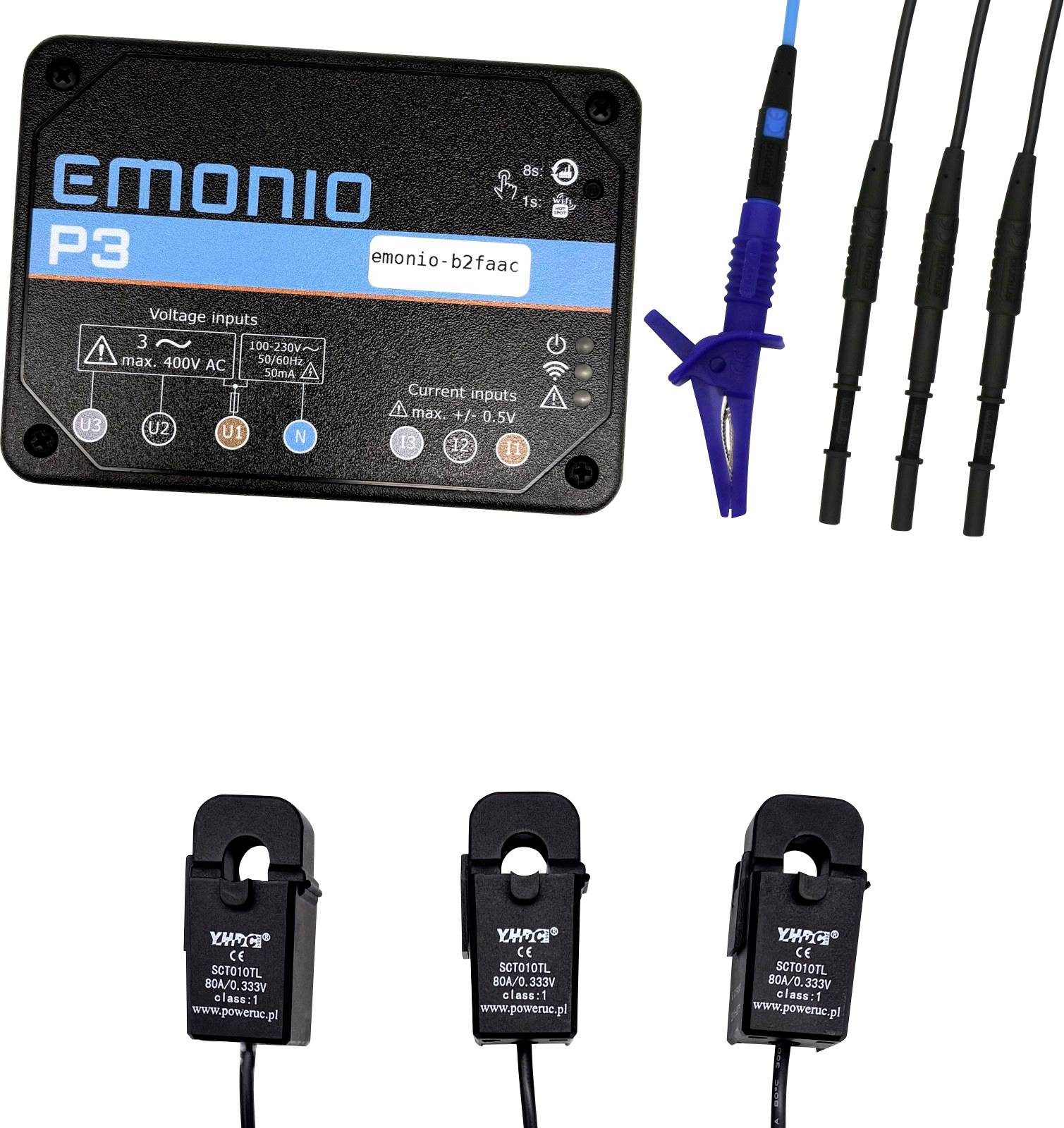

'Emonio P3' energy monitoring device with voltage inputs, connected sensors, and current clamps. Used for electrical data tracking.

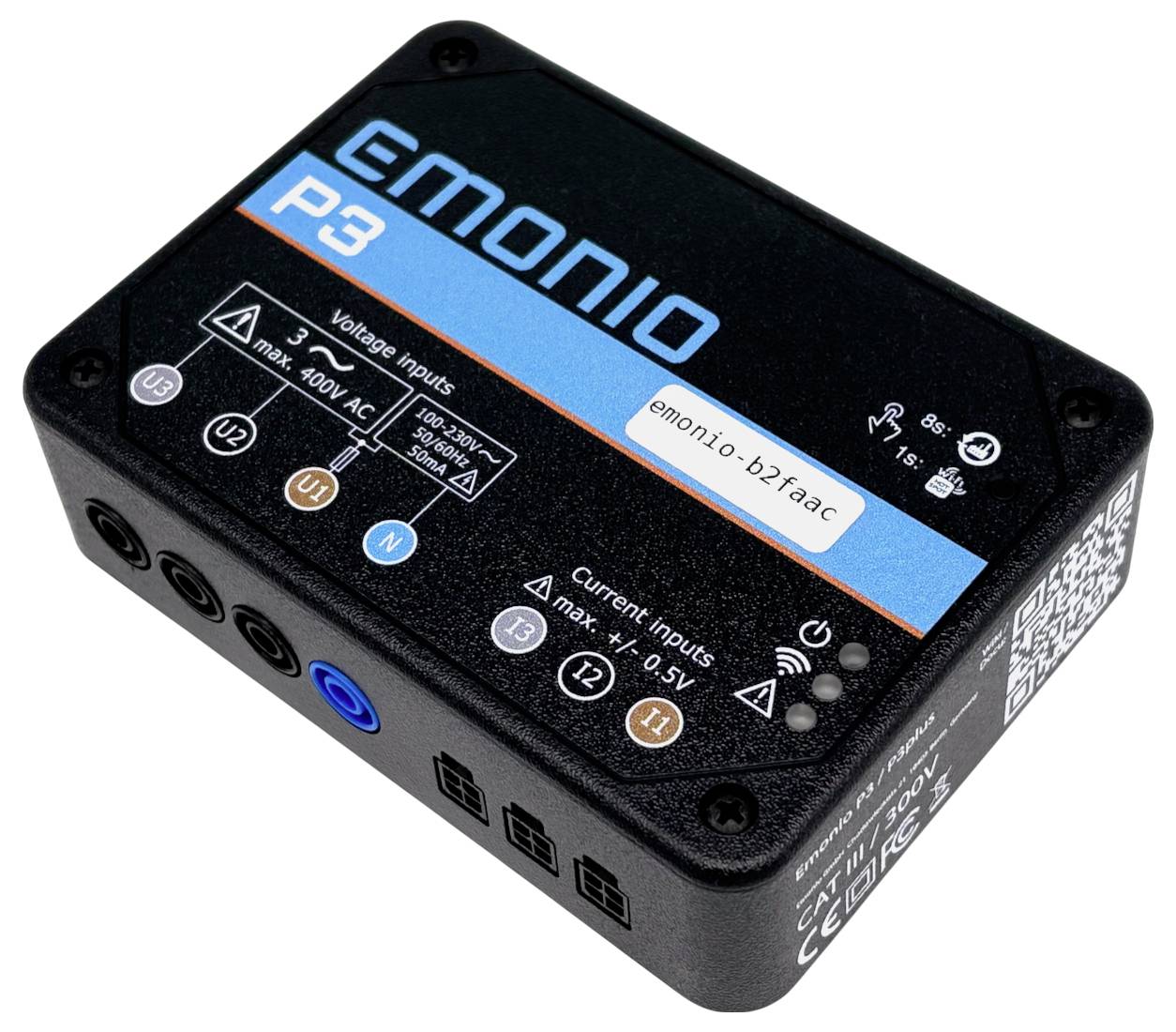

An Emonio P3 device for measuring electrical inputs, showing voltage and current inputs.

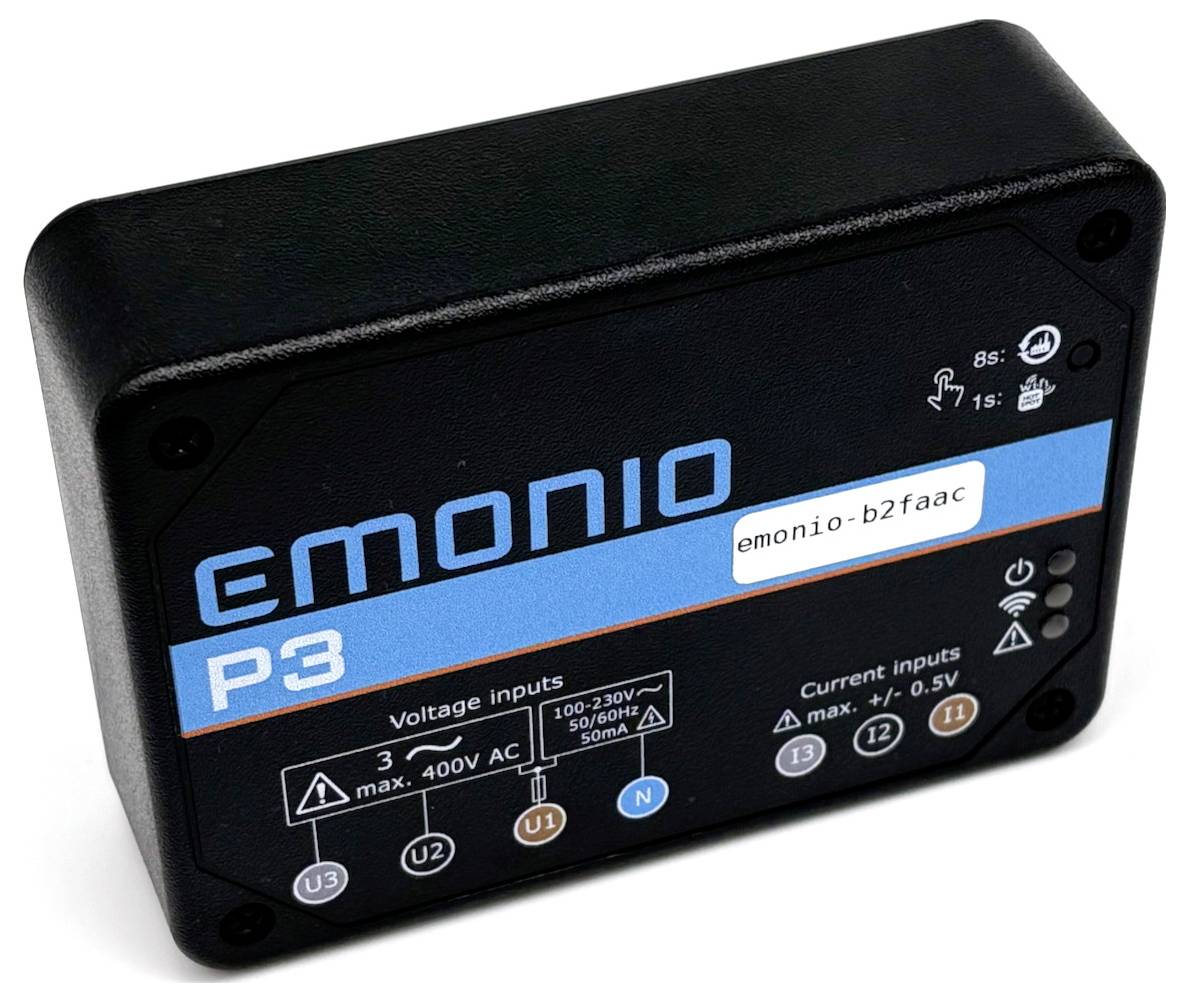

Black rectangular device labeled 'EMONIO P3', showing electrical input specifications and connection points.

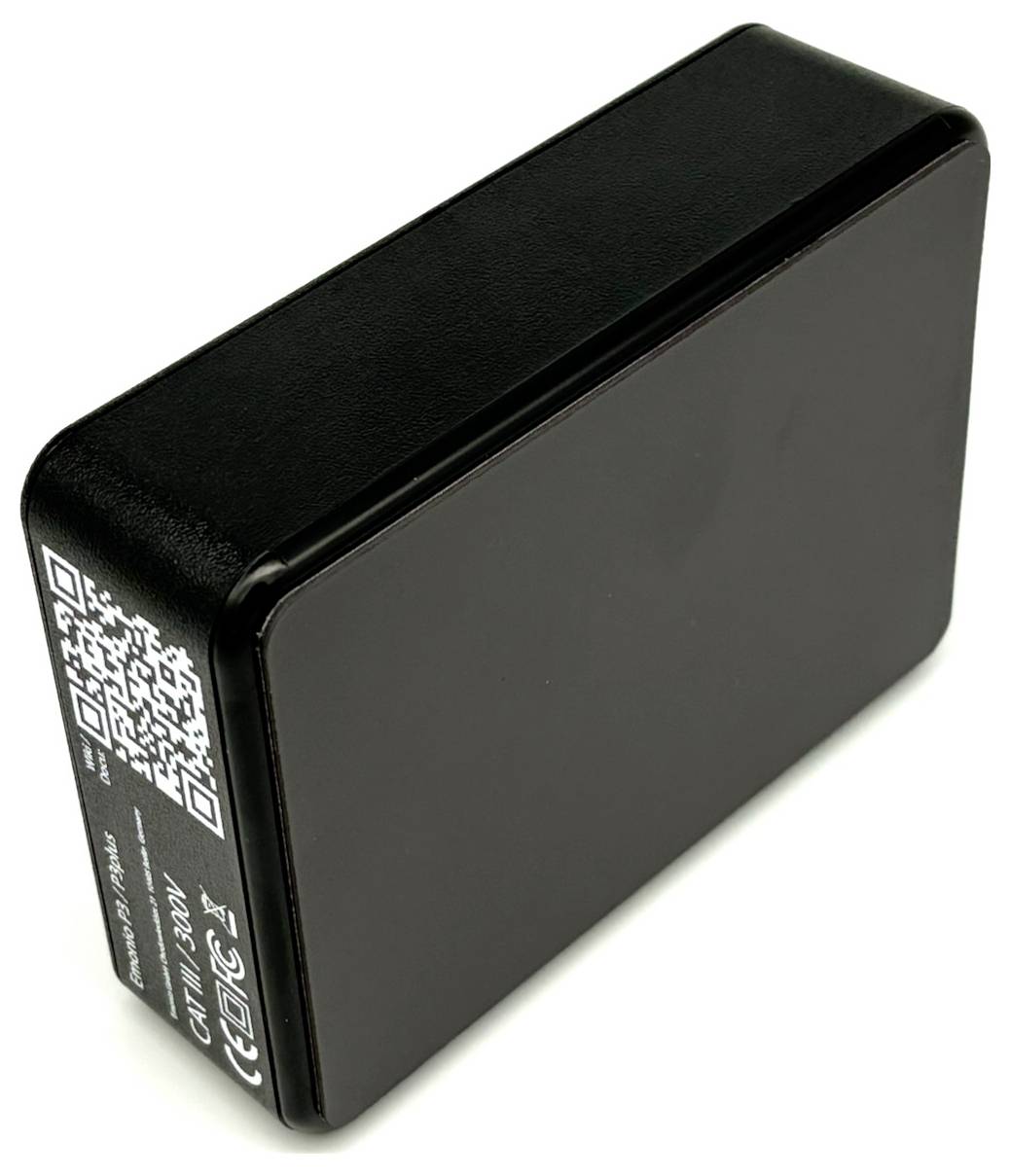

A black, rectangular electronic device with rounded edges featuring QR codes and technical labels on its side.

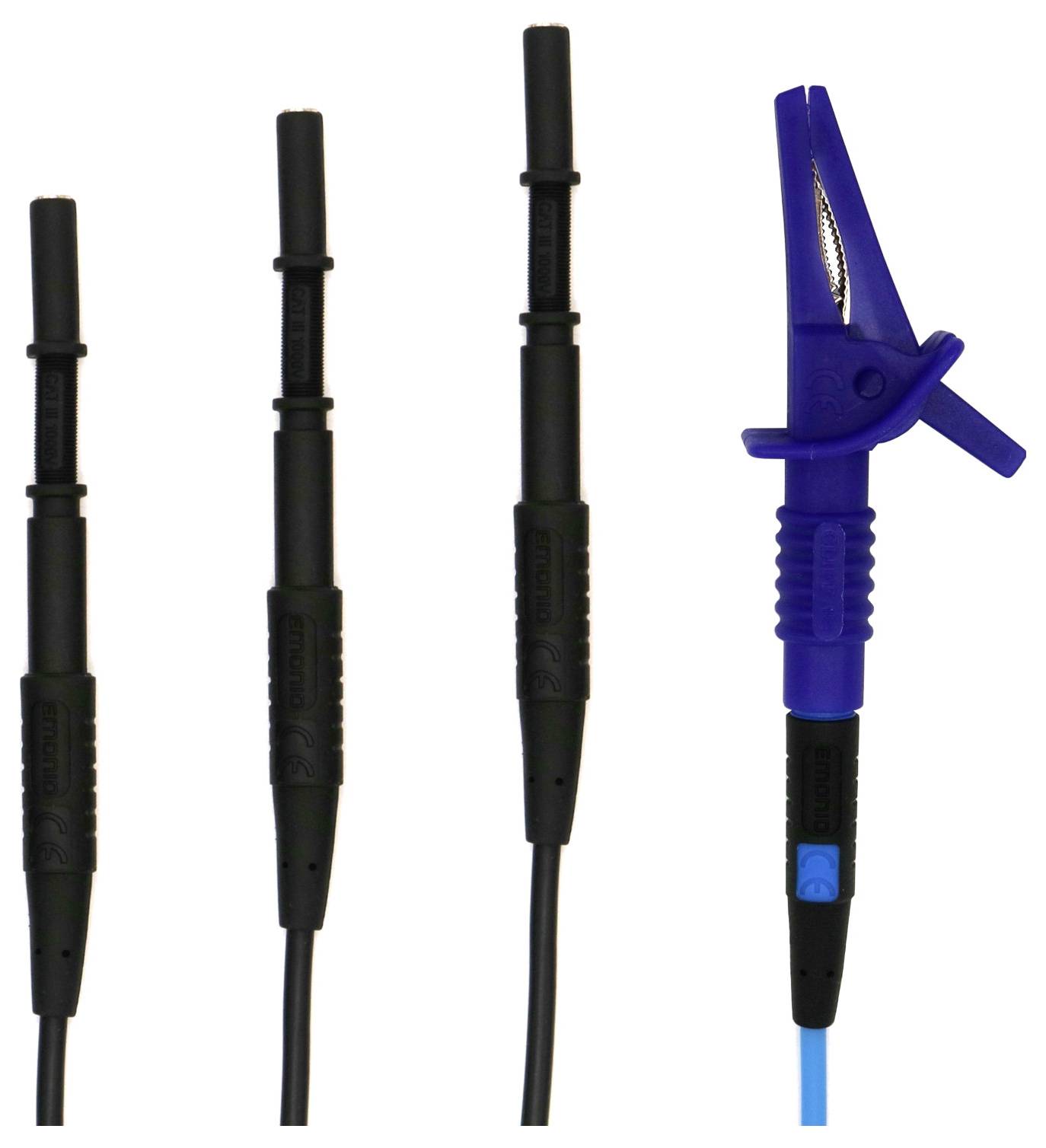

Three black electrical test probes and one blue alligator clip connector on wires, used for measuring electrical signals.

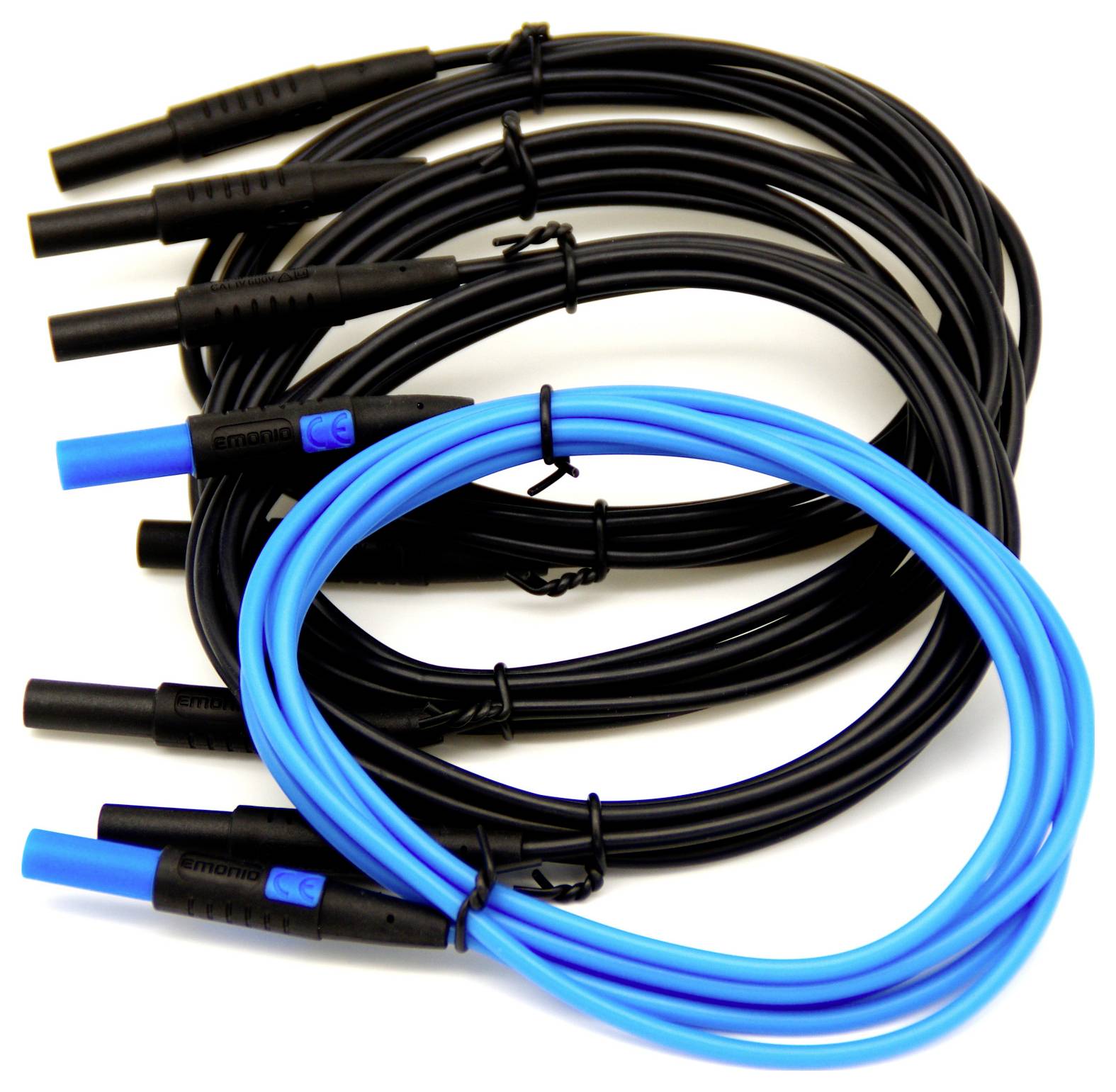

A set of electrical test leads: four black and one blue, with banana plug connectors, coiled and arranged flat against a white background.

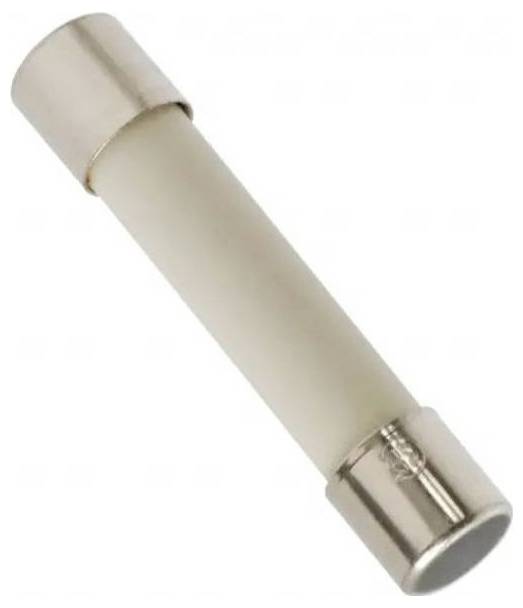

A cylindrical fuse with metal caps at both ends, used for electrical circuit protection.

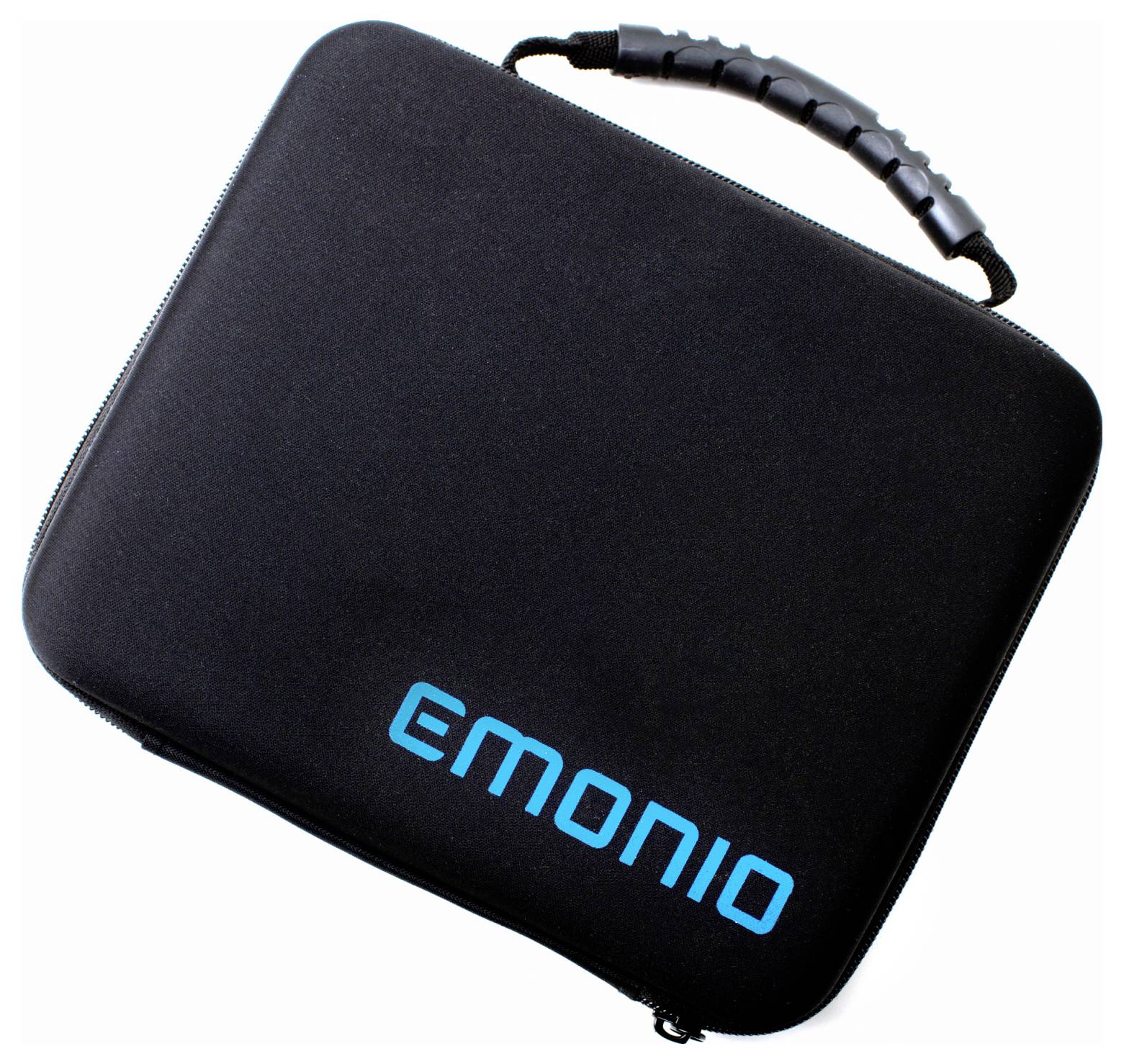

A black zippered carrying case with a textured handle and 'EMONIO' printed in blue on the front.
1/8
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Wed 18 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 995.00 / piece)
€ 995.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Emonio P3 80A Energy consumption meter set

  • Emonio

Technical specifications

  • Power supply: Via test leads N and U1 and integrated power supply
  • Operating voltage 100-240V ±10%, 50Hz/60Hz (between neutral and U1)
  • Fuse: Hollywood 6FF-0250H1: 6x32mm, 250mA FF, 1000V, Ik=100kA
  • 3+1 voltage inputs, 3 current inputs
  • Sampling rate 32,000 samples/s
  • VOLTAGE INPUT LEVEL: 230V: N <=> U1, 400V: U1 <=> U2 = <> U3
  • Level current inputs: Max. ±0.5Vpp
  • Measurement uncertainty: ± 1% for U, I, P, S, L and Q, all devices are calibrated and are being used
  • Shipped with dated initial certificate.
  • Power quality
  • Measurements: IEC 61000-4-30 Class S, IEC 61000-4-7 harmonic analysis,
  • Total harmonic distortion, power factor, IEC 62053-21
  • AND IEC 62053-22; EN50470-3; OIML R46; AND ANSI C12.20
  • Supports reactive power standards: IEC 62053-23, IEC 62053-24
  • Telemetry data buffer: Fully automatic up to 1 year in the event of an Internet connection failure
  • Data storage: 32 GB data storage on integrated SDHC card, suffices up to two
  • Years for a second record
  • Current consumption (max., typical): 50mA / 15mA
  • Communication: WiFi: 802.11 b/g/n/e/i (802.11n @ 2.4 GHz up to 150 Mbit/s or
  • BT: V4.2 BR/EDR and BT Low Energy (BLE)
  • Security: IEEE 802.11 with all standards, incl. WFA, WPA/WPA2/WPA2-Enterprise and WAPI, TLS 1.2
  • Firmware update: OTA (via network) / manual transmission with browser
  • WiFi modes: Station/SoftAP/SoftAP+station/P2P
  • ENCRYPTION: AES/RSA/ECC/SHA
  • Network protocols: MQTT, Modbus/TCP, DHCP, HTTP, NTP, SMTP, FTP, Telnet
  • Display: 3 status LEDs
  • Operating conditions: -5ºC to 40ºC, max. 80% RH, 2000m max. Height
  • Measuring category CAT III / 300V (according to EN61010-2-030)
  • Overvoltage category: OVC III (according to EN61010-1)
  • IP class IP20
  • Mounting: Via magnetic rear side or DIN rail mounting kit
  • Weight 237g
  • Dimensions in mm (WxHxD): 116.0 x 84.5 x 35.40 mm
Product type

Energy consumption meter set

Type

P3 80A

Reading type

Amperage

Nominal voltage range

100 up to 240 V AC

Mains voltage (max.)

240 V AC

Mains voltage (min.)

100 V AC

Recording time (max.) (details)

24

IP20

MID-approved

No

Dim

(L x W x H) 35.4 x 116 x 84.5 mm

Height

84.5 mm

Length

35.4 mm

Width

116 mm

Reading category

CAT III 300 V

Documents & Downloads

Datasheet

Datasheet 3462224 Emonio P3 80A Energy consumption meter set

User & Safety Instructions

User & Safety Instructions 3462224 Emonio P3 80A Energy consumption meter set

Description

The smart way to measure power consumption

This text is machine translated.

Scope of delivery

  • Emonio P3 Energy Meter with 32 GB Memory,
  • 3x MRC16 Rogowski coil with 25mm inner diameter, 50mV/kA, 0.5% accuracy
  • 4x measuring lead 20cm (1x blue, 3x black)
  • 3x Magnetic Measuring tip, flexible, 6.2mm
  • 1x alligator clip, blue
  • 1x spare fuse 6x32mm, 1000V, 250mA, FF
  • Carrying case 21 x 17 x 7 cm

System requirements

  • WLAN or Bluetooth-enabled device
