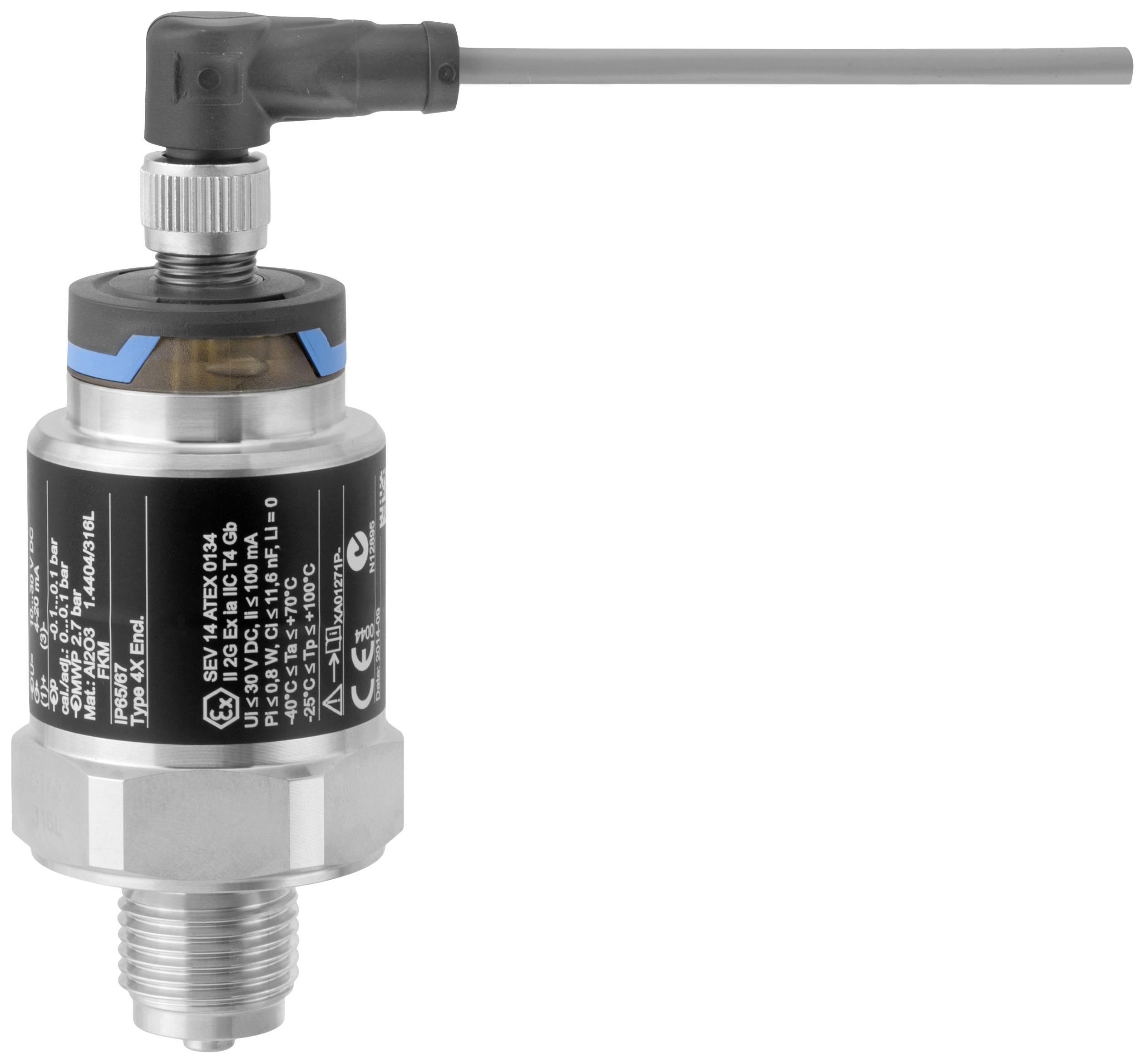

Endress+Hauser PMC21-AA1U1EBWBJA Pressure sensor 1 pc(s) -0.25 bar up to 0.25 bar G 1/2" Analogue Single
EAN:
Part number:
Item no:
Packaging type
Single
Product type
Pressure sensor
Connector
G 1/2"
Model
Relative pressure
Pressure reading range (max.)
0.25 bar
Number
Total (€ 284.87 / piece)
€ 284.87
plus VAT.
Highlights & Details
Absolute and relative pressure sensor Cerabar PMC21-AA1U1EBWBJA 4-20 mA solenoid connector ISO4400 M16, IP65 NEMA type 4X ENCL.
- Output type: Analogue output
- ABS/Gauge pressure: Pressure gauge
- Pluggable: M16 square connector
- Output 4-20 mA
- Electrical connection: ISO4400 M16 solenoid connector, IP65 NEMA type 4X Encl.
- Sensor range: 250mbar/25kPa/3.75psi pressure gauge, overload: 5bar/500kPa/75psi
- Calibration Unit: Sensor range mbar/bar
- Process connection: Thread ISO228 G1/2 EN837, 316L
Technical specifications
- Packaging type
Single
- Product type
Pressure sensor
- Type
PMC21
- Connector
G 1/2"
- Model
Relative pressure
- Outputs
Analogue
- Output signal (min.)
4 mA
- Output signal (max.)
20 mA
- Interfaces
Current (4 - 20 mA)
- Accuracy
0.3 %
- Pressure reading range (min.)
-0.25 bar
- Pressure reading range (max.)
0.25 bar
- Pressure reading range
-0.25 bar up to 0.25 bar
- Contact type
Analogue
IP65
- Hose connection
G1/2 AG
- Min. temperature
-25 °C
- Max. temperature
+100 °C
- RoHS-compliant
Yes
- Content
1 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2886235 Endress+Hauser PMC21-AA1U1EBWBJA Pressure sensor 1 pc(s) -0.25 bar up to 0.25 bar G 1/2" Analogue Single
User & Safety Instructions 2886235 Endress+Hauser PMC21-AA1U1EBWBJA Pressure sensor 1 pc(s) -0.25 bar up to 0.25 bar G 1/2" Analogue Single
Description
The Cerabar PMC21 is a very compact pressure transmitter with capacitive, oil-free ceramic sensor that can measure absolute or overpressure from 100mbar to 40bar (depending on configuration) in gases, vapors, liquids and dust. It is designed for the harsh conditions in the process industry and has a degree of protection up to IP68, a highly abrasion-resistant ceraphie membrane and a high-quality 316L housing. It can be used in most areas as it has different certifications such as Ex zones or Marine certificates.
This text is machine translated.
This text is machine translated.
Features
- Easy to use
- High performance
- Long-term stability
- High material quality
