Name: Endress+Hauser PMP21-AA1U1WBWJJ Pressure sensor 1 pc(s) -1 bar up to 400 bar G 1/2" Single
Brand: Endress+Hauser
SKU: 2886250
Availability: BackOrder

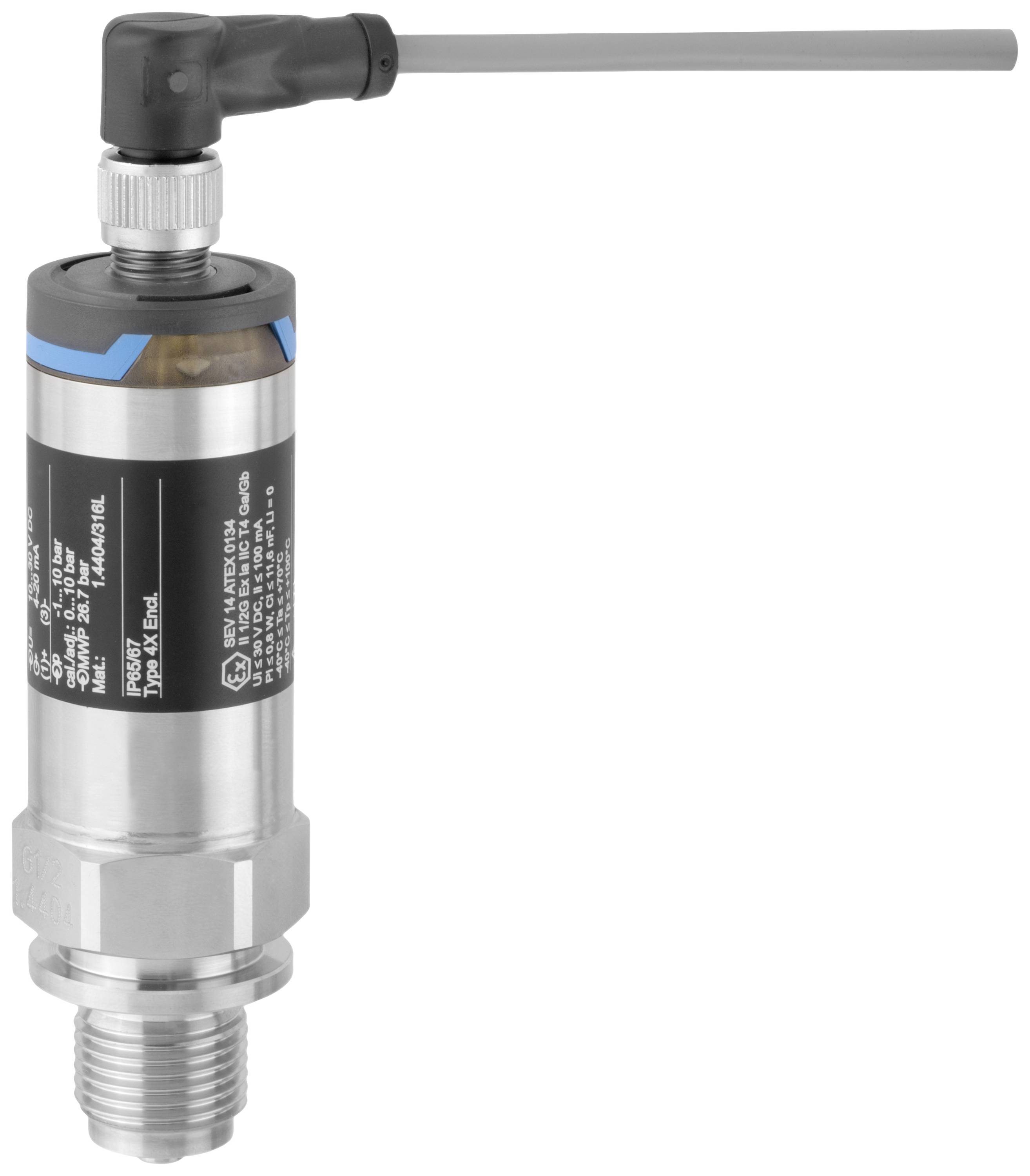

A cylindrical pressure transmitter with one connection and an antenna on top, used for monitoring pressure values in industrial applications.

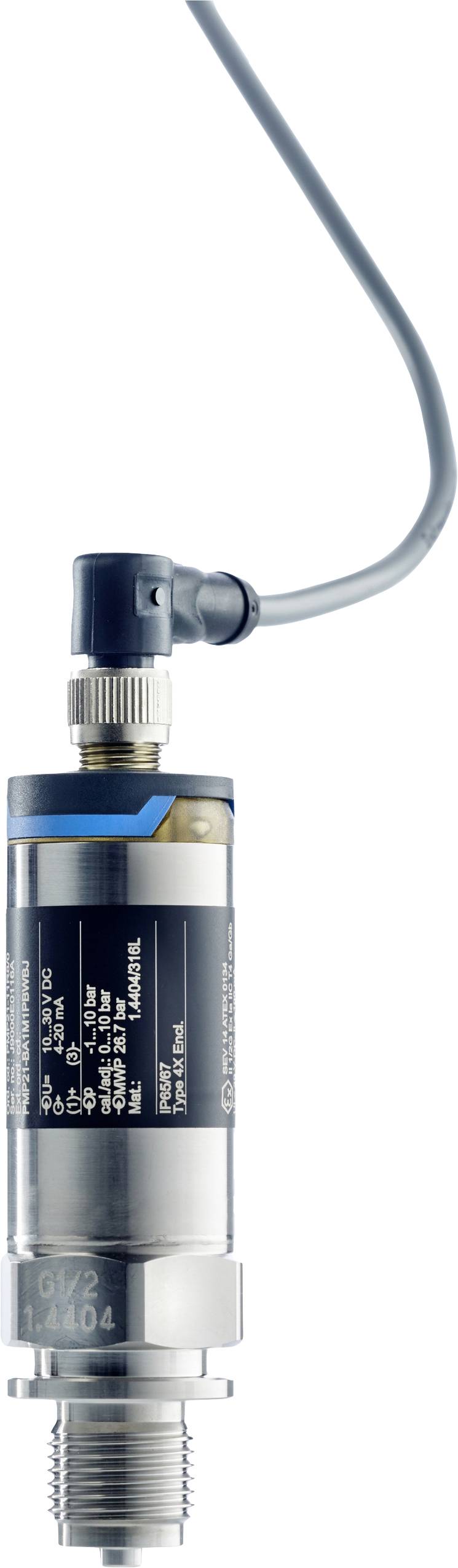

A pressure sensor with cable connection, in a cylindrical shape and with scale markings on the surface.

1/2

Packaging type

Single

Product type

Pressure sensor

Connector

G 1/2"

Pressure reading range (max.)

400 bar

Type

PMP21

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 335.00 / piece)

€ 335.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Absolute and relative pressure sensor Cerabar PMP21-AA1U1WBJJ 4-20 mA square connector ISO4400 M16, IP65 NEMA type 4X ENCL.

Output type: Analogue output
ABS/Gauge pressure: Pressure gauge
Pluggable: M16 square connector
Output 4-20 mA
Electrical connection: ISO4400 M16 solenoid connector, IP65 NEMA type 4X Encl.
Sensor range: 400bar/40MPa/6000psi Manometer, overload: 600bar/60MPa/9000psi
Calibration Unit: Sensor range mbar/bar
Process connection: Thread ISO228 G1/2 DIN3852, form E, 316L, flush mounting

Technical specifications

Packaging type: Single

Product type: Pressure sensor

Type: PMP21

Connector: G 1/2"

Outputs: Analogue

Output signal (min.): 4 mA

Output signal (max.): 20 mA

Accuracy: 0.3 %

Pressure reading range (min.): -1 bar

Pressure reading range (max.): 400 bar

Pressure reading range: -1 bar up to 400 bar

: IP65

Min. temperature: -40 °C

Max. temperature: +100 °C

RoHS-compliant: Yes

Content: 1 pc(s)

Variants(All information include VAT, plus shipping costs)

Pressure reading range (max.)

Endress+Hauser PMP21-AA1U1WBWJJ Pressure sensor 1 pc(s) -1 bar up to 400 bar G 1/2" Single

Item no:2886250

Available soon

Conrad Electronic

This article

400 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 335.00^*

Endress+Hauser PMP21-AA1M1PBWJJ Pressure sensor 1 pc(s) -1 bar up to 40 bar G 1/2" Single

Item no:2886253

Available soon

Conrad Electronic

40 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 335.00^*

Endress+Hauser PMP21-AA1U1NBWJJ Pressure sensor 1 pc(s) -1 bar up to 6 bar G 1/2" Single

Item no:2886251

Available soon

Conrad Electronic

6 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 335.00^*

Endress+Hauser PMP21-AA1U1PBWBJ Pressure sensor 1 pc(s) -1 bar up to 10 bar G 1/2" Single

Item no:2886252

Dispatches on Thu 12 Nov

Conrad Electronic

10 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 335.00^*

Endress+Hauser PMP21-AA1U1PBWJJ Pressure sensor 1 pc(s) -1 bar up to 10 bar G 1/2" Single

Item no:2886249

Fast track dispatch on Tue 3 Nov

2 Piece(s)Conrad Electronic

10 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 335.00^*

Endress+Hauser PMP21-AA1U1QBWJJ Pressure sensor 1 pc(s) -1 bar up to 16 bar G 1/2" Single

Item no:2886257

Available soon

Conrad Electronic

16 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 335.00^*

Endress+Hauser PMP21-AA1U1UBWBJ Pressure sensor 1 pc(s) -1 bar up to 100 bar G 1/2" Single

Item no:2886255

Available soon

Conrad Electronic

100 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 335.00^*

Endress+Hauser PMP21-AA1U1UBWJJ Pressure sensor 1 pc(s) -1 bar up to 100 bar G 1/2" Single

Item no:2886256

Available soon

Conrad Electronic

100 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 335.00^*

Endress+Hauser PMP21-AA1U2PBWJJ Pressure sensor 1 pc(s) 0 bar up to 10 bar G 1/2" Single

Item no:2886248

Available soon

Conrad Electronic

10 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 335.00^*

Endress+Hauser PMP21-AA1U2SBWJJ Pressure sensor 1 pc(s) 0 bar up to 40 bar G 1/2" Single

Item no:2886254

Available soon

Conrad Electronic

40 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 335.00^*

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2886250 Endress+Hauser PMP21-AA1U1WBWJJ Pressure sensor 1 pc(s) -1 bar up to 400 bar G 1/2" Single

Description

The Cerabar PMP21 is a very compact pressure transmitter with piezoresistive sensor that can measure absolute or overpressure from 400mbar to 40bar (depending on configuration) in gases, vapors, liquids and dust with an accuracy of 0.3%. The PMP21 is designed to withstand the harsh conditions in the process industry with protection classes up to IP 68 and high-quality materials such as 316L.
