Endress+Hauser Pressure switch 1 pc(s) PTP33B -1 bar up to 10 bar 1 PNP Single

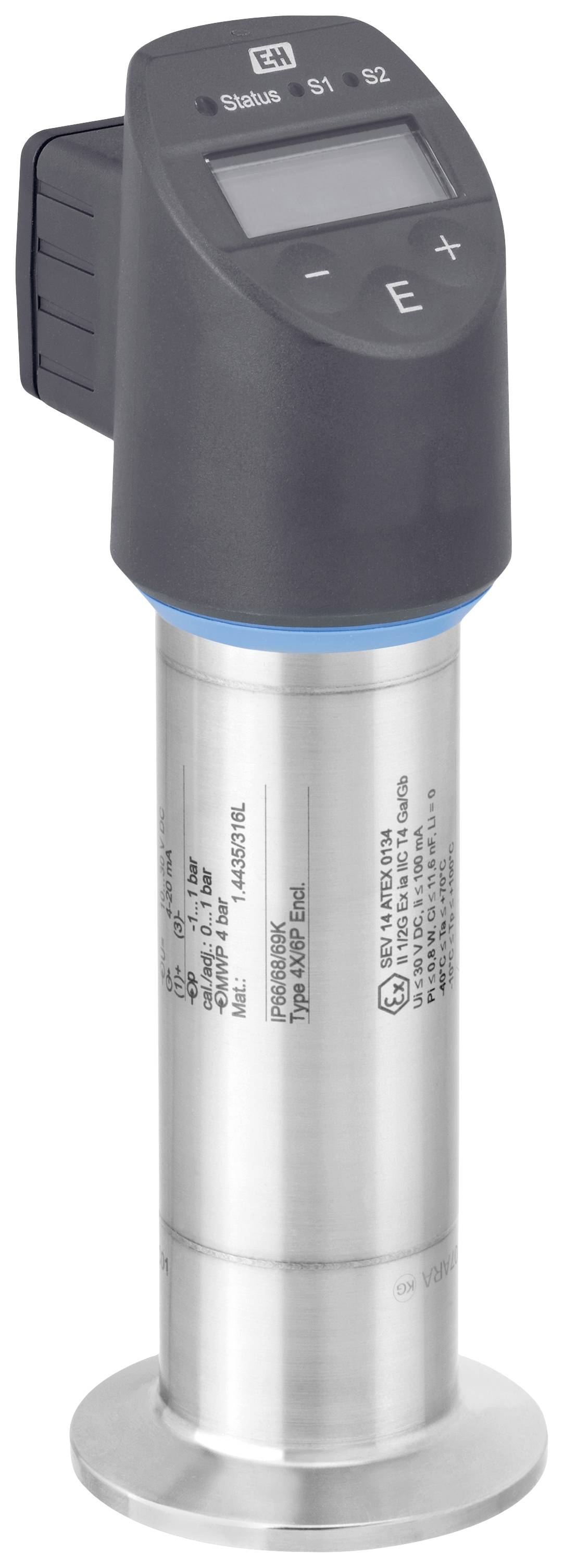

A pressure and temperature measuring device with a digital display and control elements on a metallic base. Suitable for industrial applications.
Packaging type
Single
Product type
Pressure switch
Model
Positive pressure
Pressure reading range (max.)
10 bar
Contact type
1 PNP
EAN:
Part number:
Item no:
Available soon
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 565.00 / piece)
€ 565.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Absolute and relative pressure switch Ceraphant PTP33B-AA7M1PGB1JJ 10bar/1MPa/150psi overpressure, overload: 40bar/4MPa/600psi PNP + 4-20 mA, IO-Link, 4-wire

  • Output type: Analogue output
  • ABS / Pressure gauge: Manometer
  • M12 plug
  • Type of protocol: IO-Link
  • Hygienic approval 3 A
  • Sensor range: 10bar/1MPa/150psi Manometer, overload: 40bar/4MPa/600psi
  • Output PNP + 4-20 mA, IO-Link, 4-wire
  • Electrical connection: Connector M12, IP65/67 NEMA type 4X Encl.
  • PROCESS CONNECTION: DIN11851 DN40 PN40, 316L, 3A, EHEDG
  • Reference accuracy: Standard 0.5%

Technical specifications

  • Supply voltage 10 30 V/DC
Packaging type

Single

Product type

Pressure switch

Type

PTP33B

Model

Positive pressure

Outputs

Analogue

Output signal (min.)

4 mA

Output signal (max.)

20 mA

Interfaces

IO-Link

Accuracy

0.5 %

Pressure reading range (min.)

-1 bar

Pressure reading range (max.)

10 bar

Pressure reading range

-1 bar up to 10 bar

Contact type

1 PNP

IP65/67

Hose connection

DN 40

Min. temperature

-40 °C

Max. temperature

+100 °C

RoHS-compliant

Yes

Content

1 pc(s)

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2886273 Endress+Hauser Pressure switch 1 pc(s) PTP33B -1 bar up to 10 bar 1 PNP Single

User & Safety Instructions 2886273 Endress+Hauser Pressure switch 1 pc(s) PTP33B -1 bar up to 10 bar 1 PNP Single

Description

The Ceraphant PTP33B is a pressure switch with metal membrane for a safe measurement and monitoring of absolute and over pressure. The pressure switch in a compact design is extremely stable and overload protected. The PTP33B with stainless steel housing is 3-A and EHEDG approved. The IO-Link capability enables simple integration and parameterization of the device.

This text is machine translated.
