Image similar

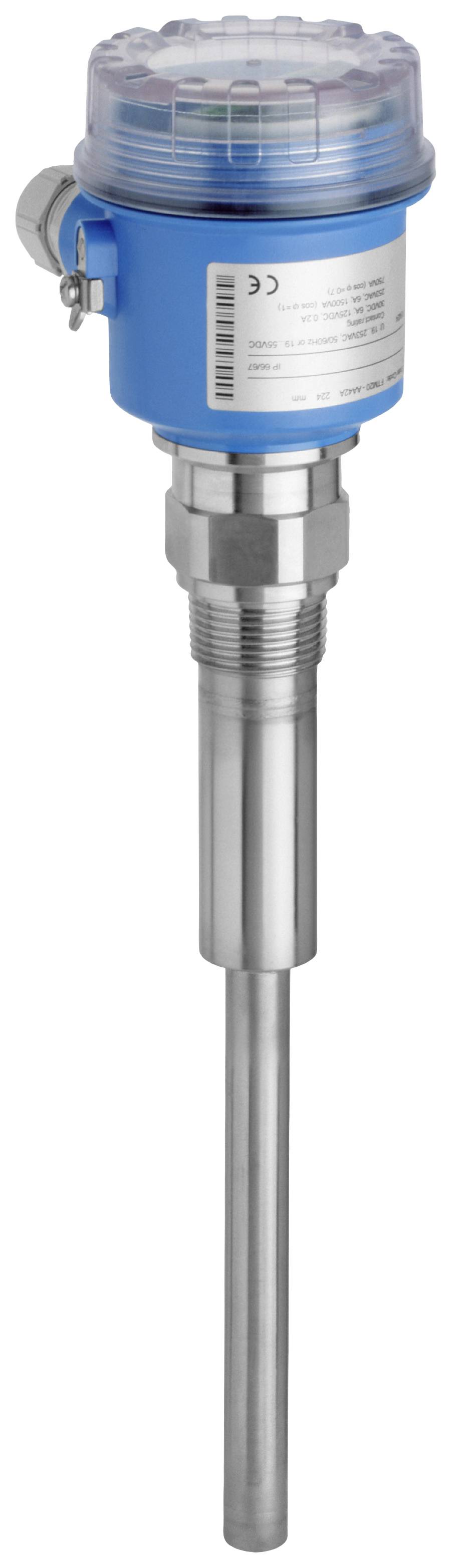

Endress+Hauser Vibronic point level switch FTM20 FTM20-AG25A 1 pc(s)
Product type
Vibronic point level switch
Type
FTM20
Outputs
PNP
Material
Stainless steel
Enclosure material
Aluminium
EAN:
Part number:
Item no:
Number
Total (€ 509.00 / piece)
€ 509.00
incl. VAT
14-day return policy included
Highlights & Details
Vibrant fill level switch Soliphant T FEM22; 3-wire PNP 10-45 V/DC
- Approval: Non-explosive area
- Process connection: Thread EN10226 R1-1/2, 316L
- Electronic output: FEM22; 3-wire PNP 10-45 V/DC
- Housing cable entry: F18 Aluminium IP66/67 NEMA4X; M20 cable gland
Technical specifications
- Medium density min. 200 g/l
- Sensor length 225 mm
- Product type
Vibronic point level switch
- Type
FTM20
- Outputs
PNP
- Material
Stainless steel
- Enclosure material
Aluminium
IP66/IP67
- Length
225 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
- Thread size
R1 1/2"
- Switching voltage
45 V DC
- Max. temperature
+150 °C
- Min. temperature
-40 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2886182 Endress+Hauser Vibronic point level switch FTM20 FTM20-AG25A 1 pc(s)
Description
The Soliphant FTM20 is a limit switch for applications with fine or coarse-grained, non-fluidized bulk materials. Through the different designs, the device has a broad range of applications. Approvals are also available for use in areas where there is a risk of dust and explosion.
This text is machine translated.
This text is machine translated.
