enduro 16658 Charger
EAN:
Part number:
Item no:
Number
Total (€ 100.83 / piece)
€ 100.83
plus VAT.
Only 5 Piece(s) available
Highlights & Details

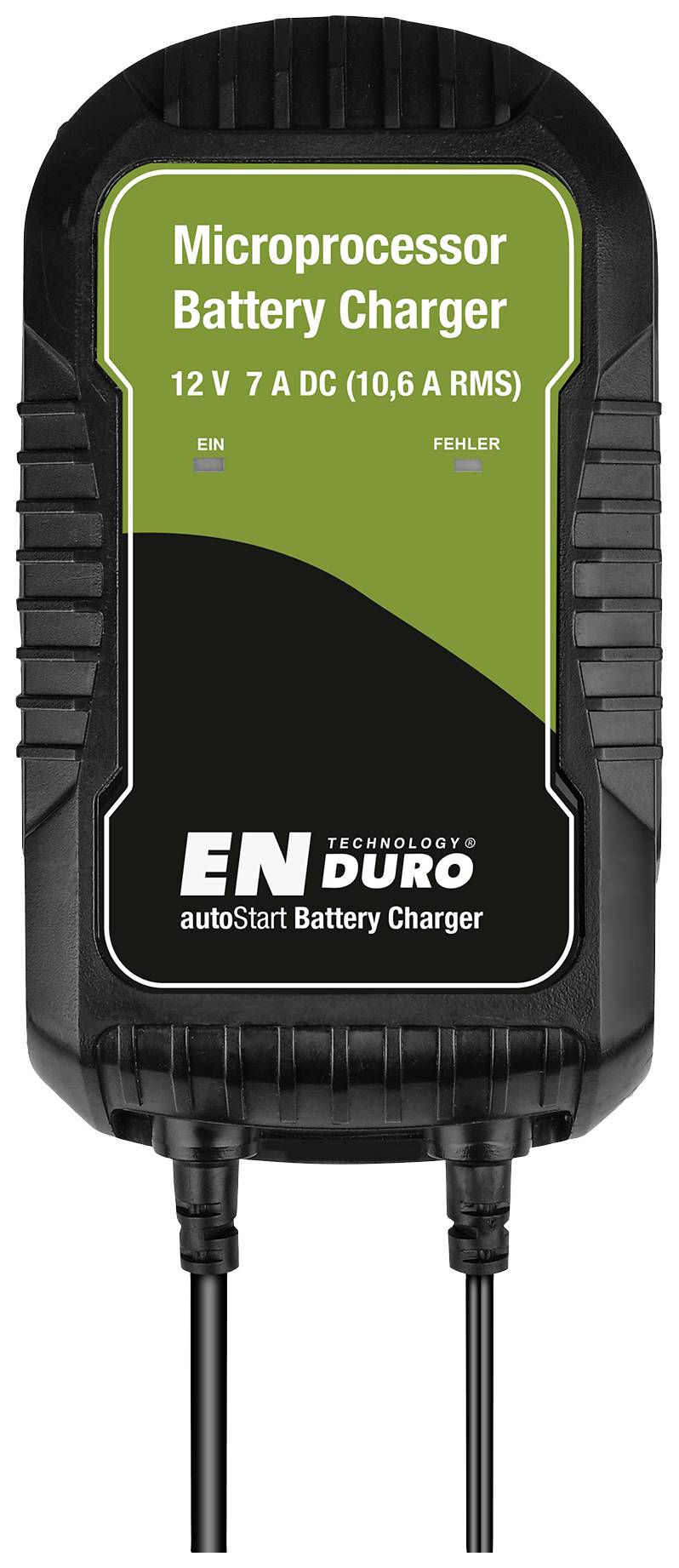

enduro 16658 Charger
- Fully automatic intelligent battery charger
- Ideal for fixed installation in caravans, mobile homes or boats
- Complete automatic charging – without pressing a button
- For all 12 V lead, gel, AGM and maintenance-free lead-acid batteries (MF) from 14 – 230 Ah
- Input 220 – 240 V AC, 50 / 60 Hz, 1.2 A max.
- OUTPUT 14.4 V ± 0.25 V DC, 7.0 A ± 10% (10 A RMS)
- Charger output 14.6 V / 3A
- Splash waterproof IP65
- Size (LxWxH): Approx. 20 x 11 x 6 cm
Technical specifications
- Input 220 – 240 V AC, 50 / 60 Hz, 1.2 A max.
- OUTPUT 14.4 V ± 0.25 V DC, 7.0 A ± 10% (10 A RMS)
- Temperature report --20°C – 50°C.
- Battery type: 12 V lead-acid batteries (wet, AGM, gel, maintenance-free MF)
- Battery capacity 14 - 230 Ah
- Product type
Charger
- Dim
(L x W x H) 115 x 60 x 200 mm
- Operating voltage
220 - 240 V
- Recommended battery capacity at 12 V max.
230 Ah
- Recommended battery capacity at 12 V min.
14 Ah
- Suitable for
VRLA AGM
PbCa
SLA
Lead acid
VRLA AGM
- Weight
680 g
- Features
Charge monitoring
- Width
60 mm
- Height
200 mm
- Length
115 mm
- Depth
11 cm
IP65
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2898146 enduro 16658 Charger
Description
This charger is Ideal for fixed installation in your caravan, mobile home or boat
movement. Enables safe, fast and automatic charging. The charging process is started
Automatically started when the charger is connected to the 230 V power supply.
This text is machine translated.
movement. Enables safe, fast and automatic charging. The charging process is started
Automatically started when the charger is connected to the 230 V power supply.
This text is machine translated.
Scope of delivery
- Pole clamp adapter
- Ring eyelets adapter
- 2 x Velcro tape, self-adhesive
- User manual
