EPH Elektronik DGS 24/03 M DC speed controller 3 A 24 V DC
Product type
DC speed controller
Output voltage (max.)
24 V DC
Max. rotor current
3 A
Type
DGS 24/03 M
Nominal voltage
24 V DC
Datasheet (PDF)
EAN:
Part number:
Item no:
Total (€ 87.99 / piece)
€ 120.00
-27 %
€ 87.99
incl. VAT
14-day return policy included
Technical specifications
- Product type
DC speed controller
- Type
DGS 24/03 M
- Nominal voltage
24 V DC
- Output voltage (max.)
24 V DC
- Max. rotor current
3 A
- Type
35 mm rail mount
- Dim
(L x W x H) 40 x 40 x 25 mm
- Length
40 mm
- Width
40 mm
- Manufacturer part #
576b.03.0/4146
- Height
25 mm
- Output voltage
0 - 24 V/DC (depending on the operating voltage)
- Type
For 35 mm DIN rail
- Operating voltage
10 - 36 V DC
Documents & Downloads
Datasheet
Datasheet 430036 EPH Elektronik DGS 24/03 M DC speed controller 3 A 24 V DC
User & Safety Instructions
User & Safety Instructions 430036 EPH Elektronik DGS 24/03 M DC speed controller 3 A 24 V DC
Description

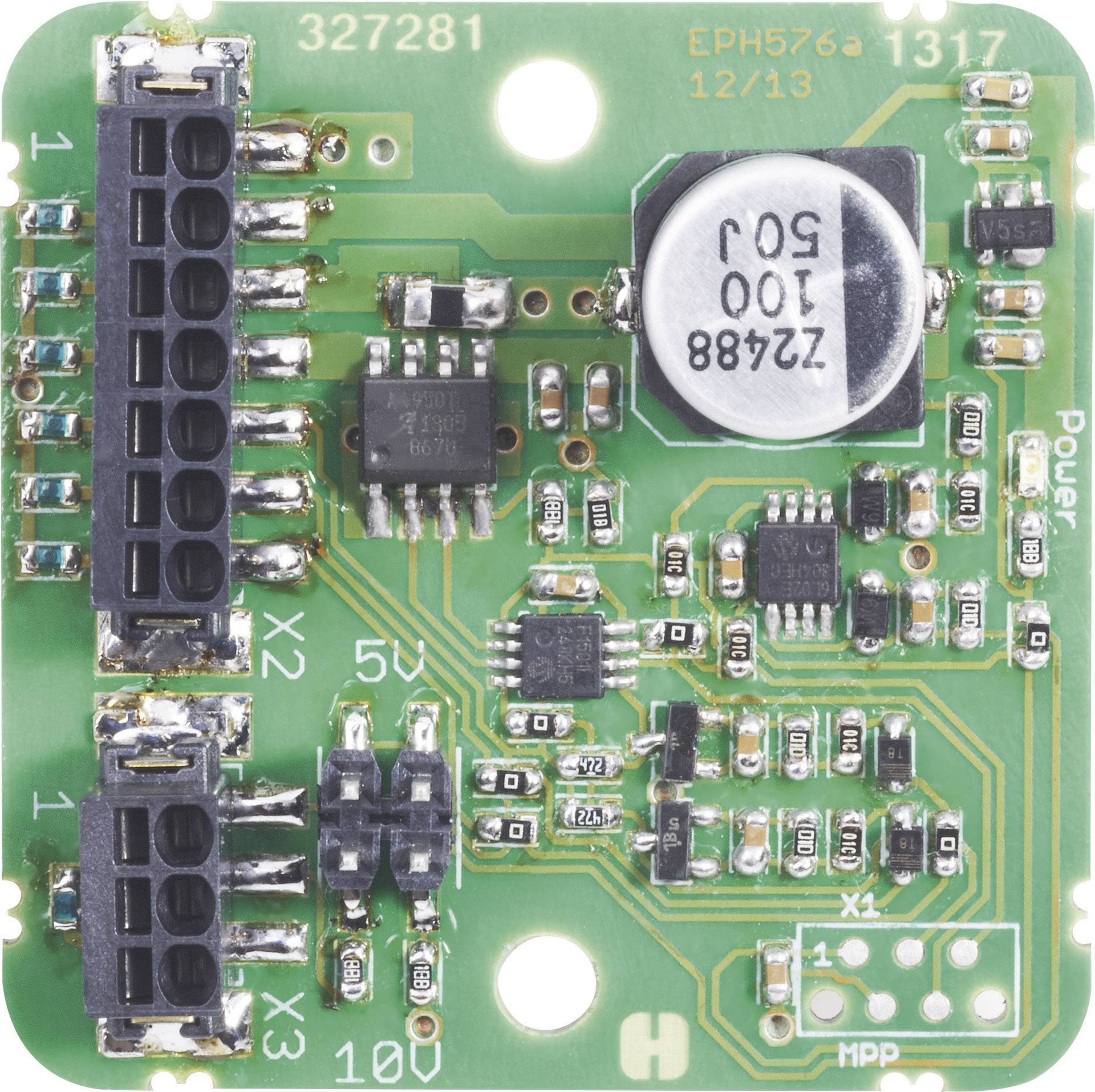

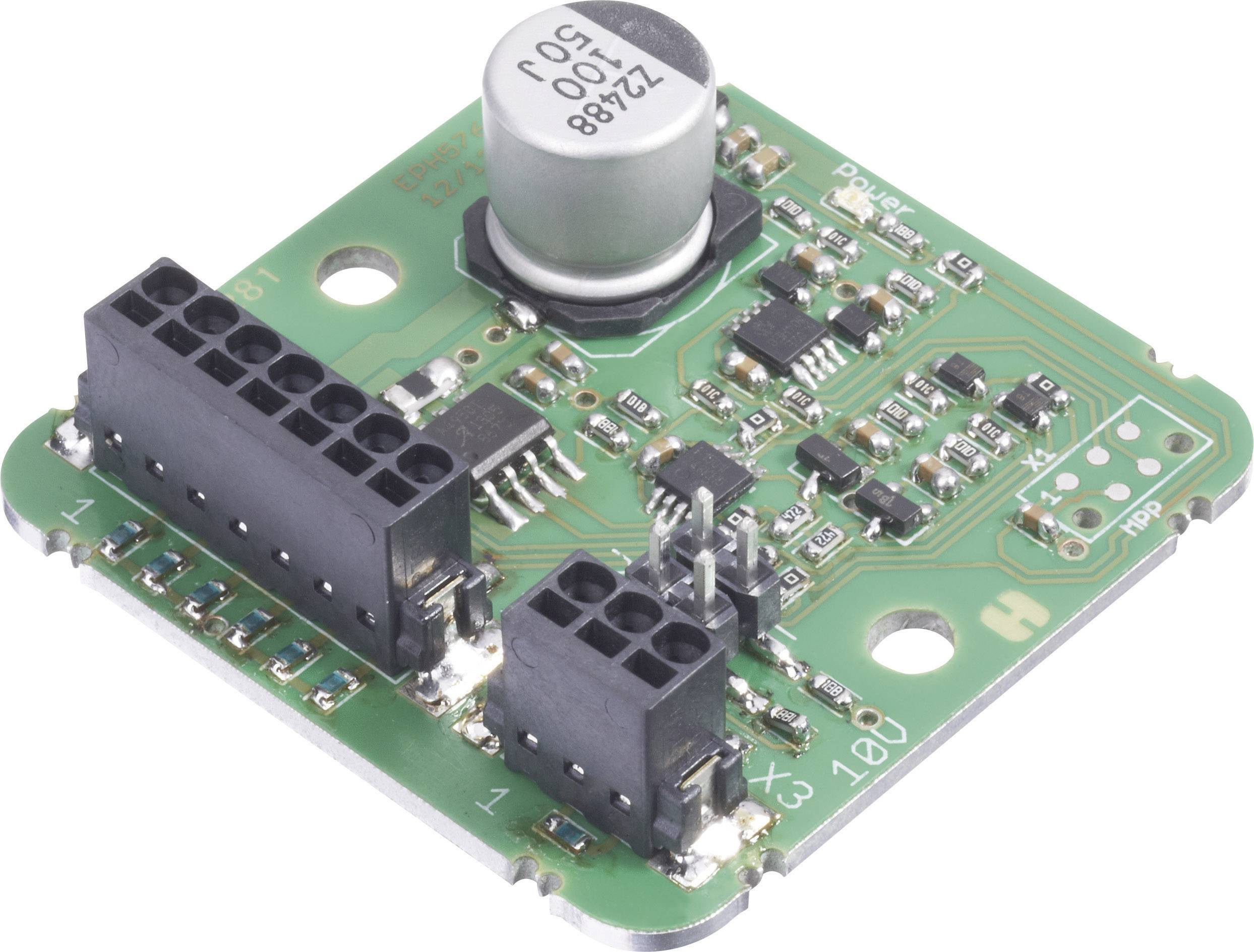

The DGS 24/03 is a load-dependent speed controller for brush afflicted DC motors, which has a right and left running. Target speed set by external potentiometer 10 KΩ or external voltage 0 - 5 V/DC or 0 - 10 V/DC (pre-selectable over Jumper). Armature voltage 0 - 24 V/DC, depending on the operating voltage.
This text is machine translated.
This text is machine translated.
