Connectors & CablesConnectorsIndustrial ConnectorsSignal & Power Connectors

EPIC ® SIGNAL M23 E inserts, 17 pin 73018500 73018500 LAPP Content: 5 pc(s)

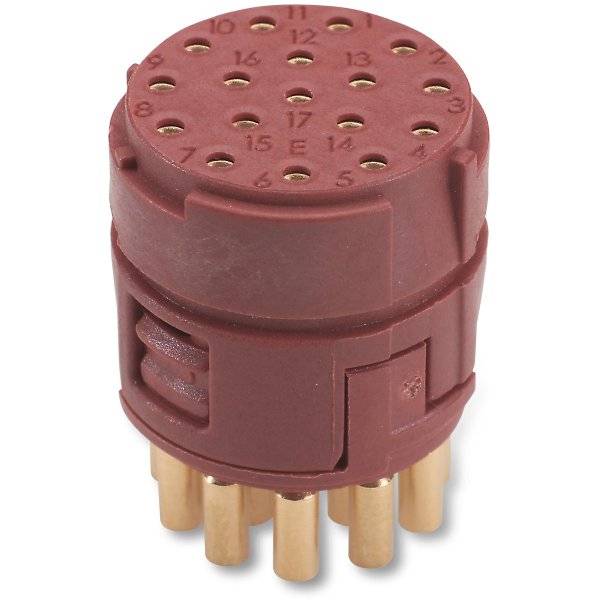

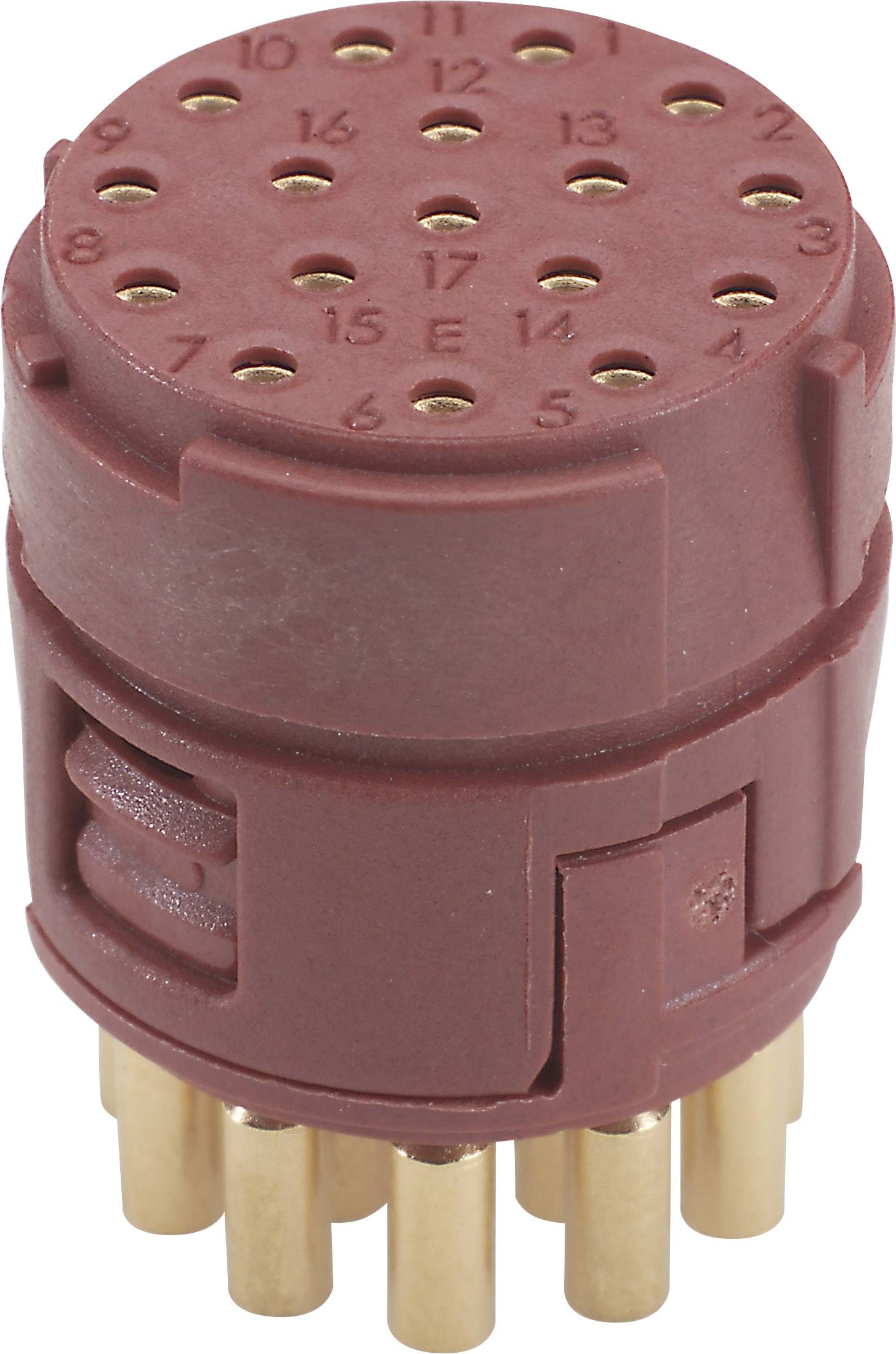

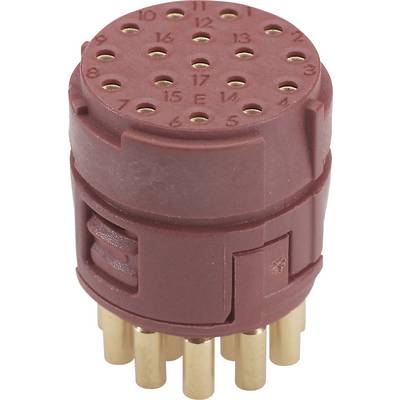

Red, cylindrical connector with 18 numbered holes and several golden pins at the lower end.
'Connector' diagram shows 17 numbered circles in a circular pattern, numbered from 1 to 17, with letter 'E' in circle 17.
1/2
Image similar
Packaging type
Piece
Connector type
Socket
Connection
Soldering
Crimp
Connector cross section
0.14 - 1 mm²
Rated voltage
150 V
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Thu 5 Nov
33 Set(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number (Package size 5 pc(s))
Total (€ 10.00 / piece)
€ 49.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

EPIC ® SIGNAL M23 E inserts, 17 pin

  • VDE Test Mark: Triangle logo with the letters 'VDE', which stands for tested safety and quality for electrical products.
  • 'CRAUS' logo in stylised lettering, predominantly in capital letters, on a white background.

Technical specifications

Packaging type

Piece

Connector type

Socket

Connection

Soldering

Crimp

Connector cross section

0.14 - 1 mm²

Rated voltage

150 V

Test current

7 A

Total no. of pins

17

Manufacturer part #

73018500

Industrial packaging

Yes

Content

5 pc(s)

Contact material

Gold

Number of pins

17

RoHS-compliant

Yes

Features

Right-hand

Type

73018500

Leading contact (PE)

No

Type

E-part, right-hand

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 1576163 EPIC ® SIGNAL M23 E inserts, 17 pin 73018500 73018500 LAPP Content: 5 pc(s)

User & Safety Instructions

User & Safety Instructions 1576163 EPIC ® SIGNAL M23 E inserts, 17 pin 73018500 73018500 LAPP Content: 5 pc(s)

Description

Scope of delivery

  • With Contacts
  • This text is machine translated.
