Name: Escha 8I/OM12-5P3T 8045647 Sensor & actuator box (passive) M12 splitter + steel thread 1 pc(s)
Brand: Escha
SKU: 3553416
Availability: BackOrder

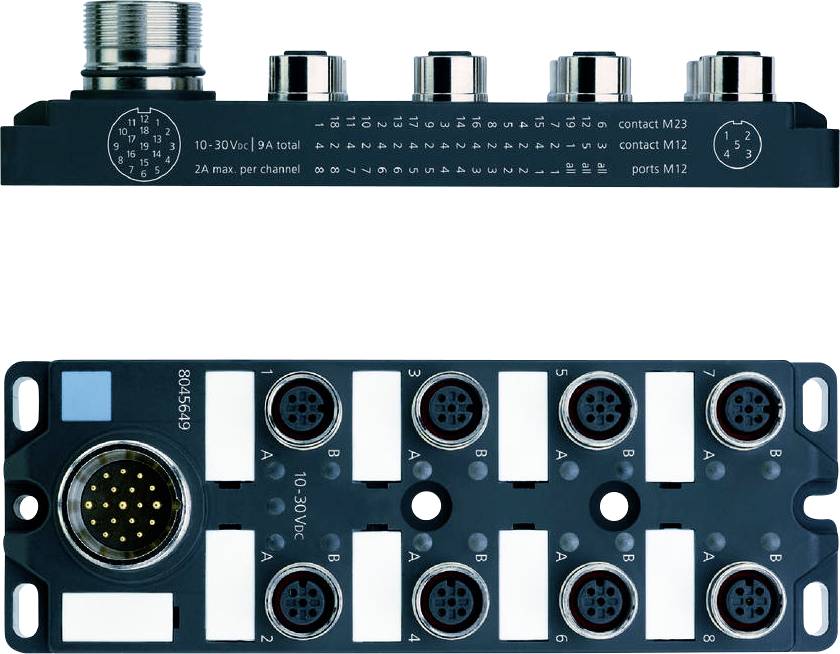

'Multi-port industrial connector module with a circular M23 contact on the side and several M12 ports on top, labeled with voltage ratings.'

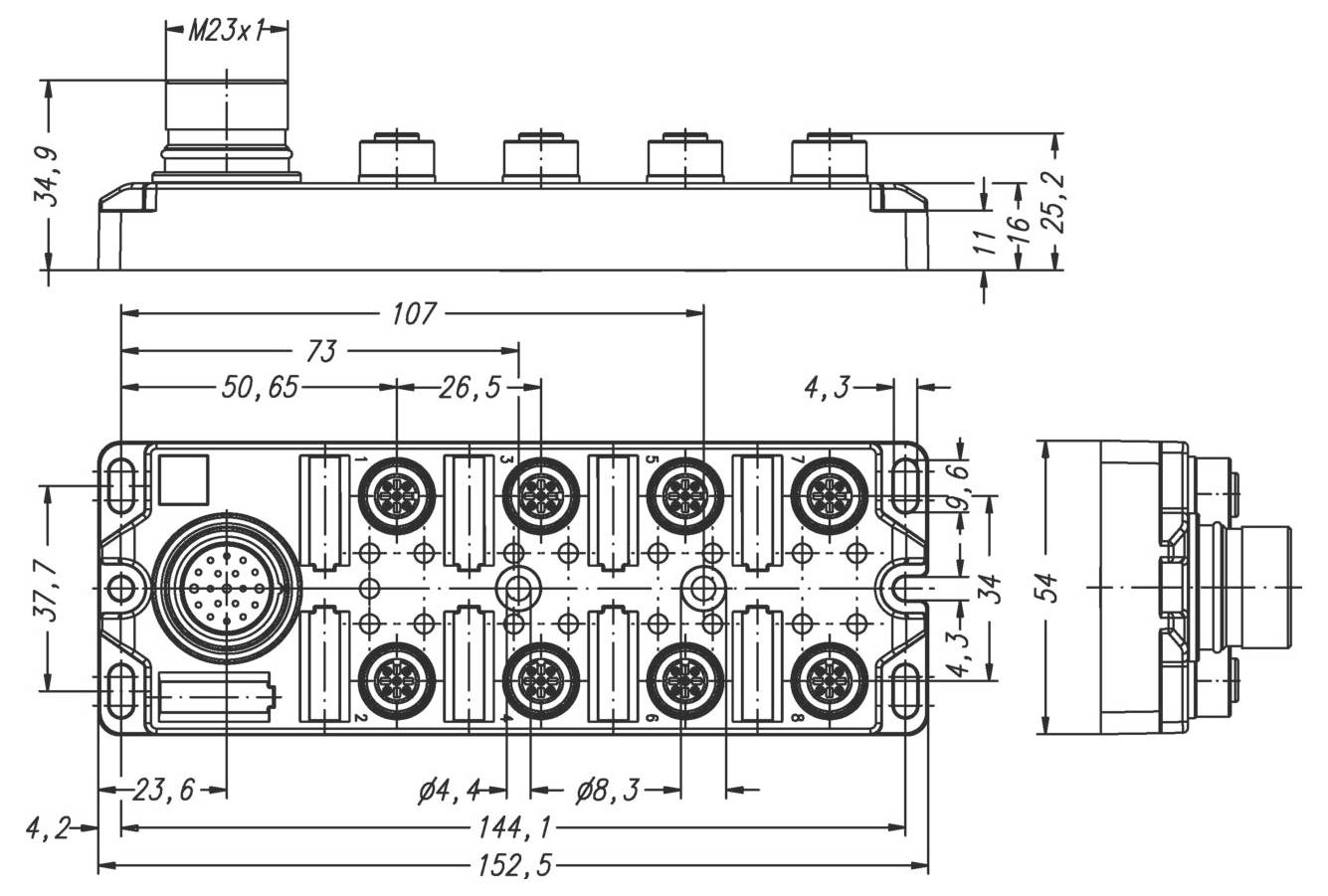

'Technical diagram of a multi-port connector block with detailed measurements in millimeters, showing top and side views.'

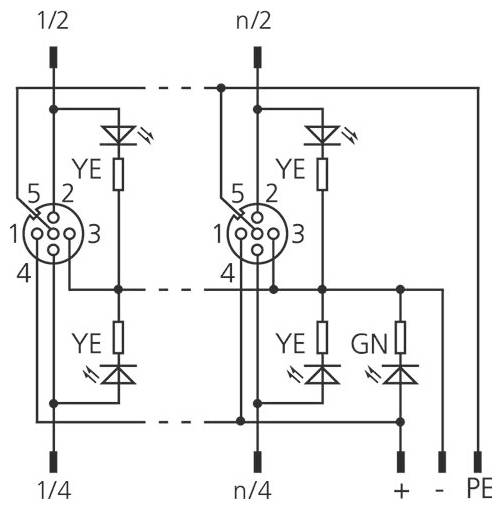

'This schematic diagram illustrates an electrical circuit with two cylindrical connectors labeled 1/2 and n/2, including diodes and resistors.'

1/3

Product type

Sensor & actuator box (passive)

No. of signal spaces

No. of splitters

8-way

Type

8I/OM12-5P3T

Trunk line

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 93.99 / piece)

€ 93.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Rated voltage: 30V
Insulation resistance ≥108 Ω
Material seal (bush): FPM/FKM
Material contacts: Metal, CuZn, gold-plated
Material contact carrier: Plastic, PA, BK
Mechanical lifespan >100 mating cycles
IEC 61076-2-101 standard
Number of pins 4+PE
Protection class (mounted) IP65, IP67
Current load capacity per pin (at 40°C): 2.0 A
Ambient temperature: -30°C...+90°C
Pollution level 3
Coding: A
Constant resistance 5 mΩ
Connection type: Top
Switching logic PNP
Number of I/O slots: 8.0
Number of LEDs: 17.0
Operating voltage display LED GN
I/O distributor:8-way, M23, with connector plug
I/O slot: Socket, M12
Material housing: Plastic, PA, BK
Material thread insert: Metal, CuZn
Switching status display LED YE
Current carrying capacity Total current 12.0 A.
M23 connector, 19-pin
Material seal, connection plug: Plastic, FPM/FKM
Material flange housing, connector plug: Metal, CuZn, nickel-plated
Material contacts, connector plug: Metal, CuZn, gold-plated
Material contact holder, connector plug: Plastic, PA, BK
Mechanical life, connection plug >100 mating cycles
Number of pins, connection plug: 19
Protection class, connector IP65, IP67

Product type: Sensor & actuator box (passive)

No. of signal spaces: 8

Type: 8I/OM12-5P3T

Trunk line: No

No. of splitters: 8-way

Status indicator: LED

Signal type: PNP

Connection: M12 socket

: IP65
IP67

Max. power rating per slot: 2 A

Total current (direct supply): 12 A

Max. temperature: 90 °C

Min. temperature: -30 °C

Connector type (distribution boxes): M12 socket

Case material: Plastic

Total no. of pins: 4

Manufacturer part #: 8045647

Content: 1 pc(s)

Number of pins: 4

Power rating (total): 12.0 A

Power rating per I/O: 2.0 A

Documents & Downloads

Datasheet

Datasheet 3553416 Escha 8I/OM12-5P3T 8045647 Sensor & actuator box (passive) M12 splitter + steel thread 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3553416 Escha 8I/OM12-5P3T 8045647 Sensor & actuator box (passive) M12 splitter + steel thread 1 pc(s)

Description

Escha standard connection technology stands for variety, quality and reliability in the protection classes IP67, IP68 and IP69. Thanks to different designs, codes and a variety of cable qualities, you will find the right solution for every application. Whether M8, M12 or M23 round connectors, RJ45 or solenoid connectors – all products come in many cable lengths. Practical T and Y-distributor, panel-mounted plug, adapter and I/O-modules enable a flexible wiring structure.
