Name: Escha 8I/OM8-3P2C-5/S370 8061796 Sensor & actuator box (passive) M8 splitter + steel thread 1 pc(s)
Brand: Escha
SKU: 3553464
Availability: InStock

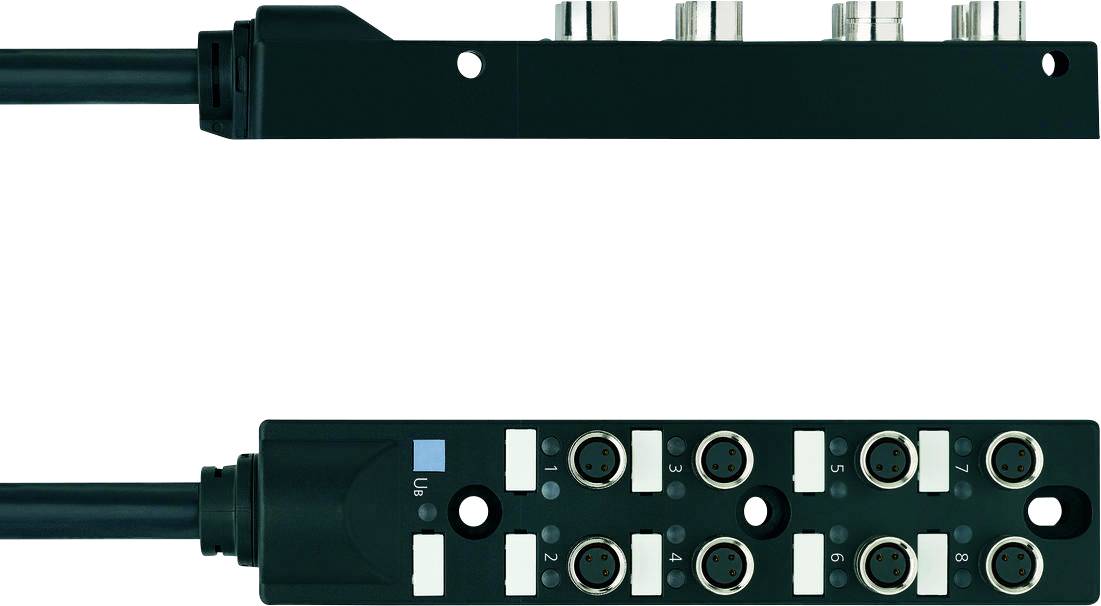

A black electronic device with multiple input/output ports labeled numerically, used for connecting cables in a technical setup.

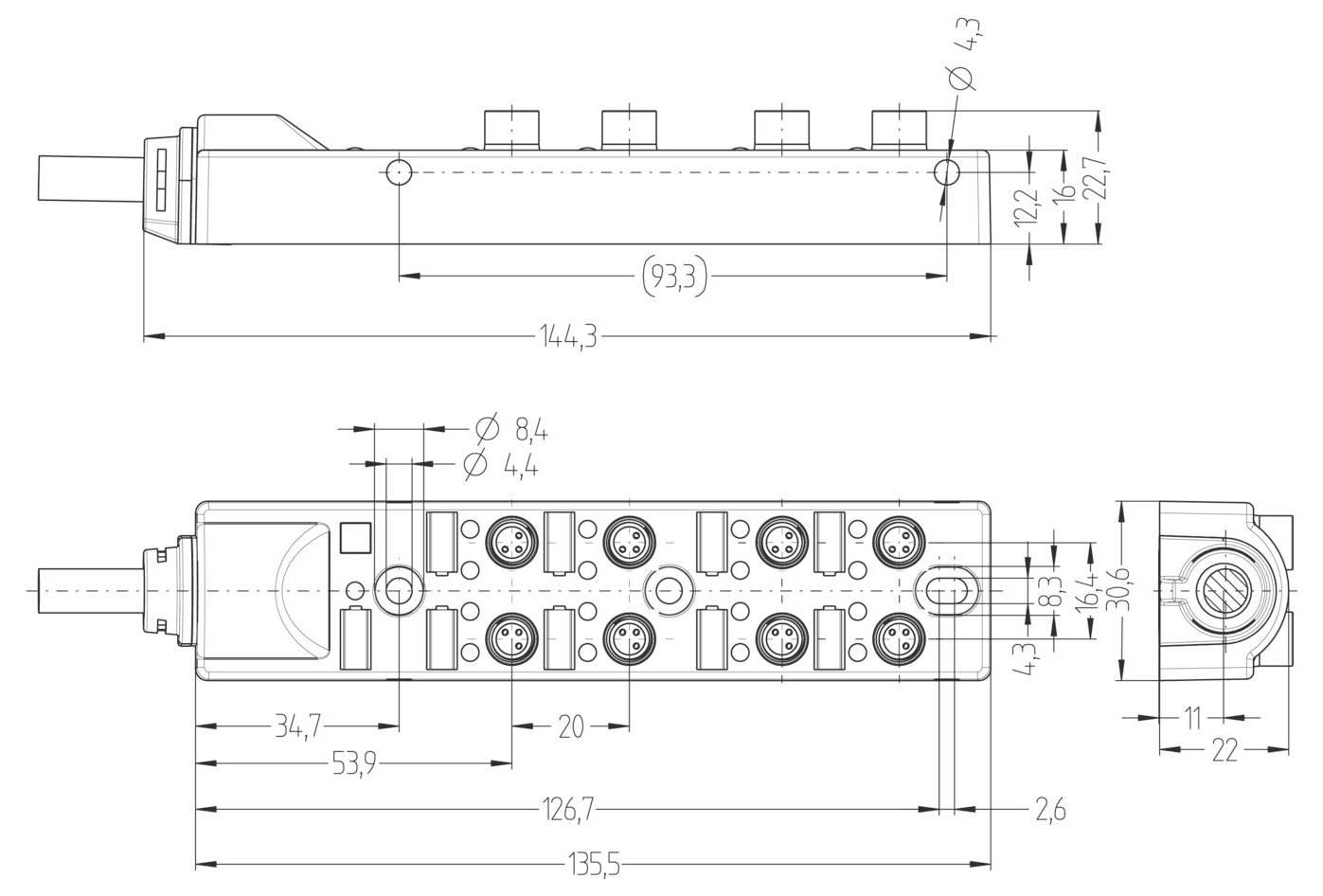

'Technical drawing of a rectangular connector block with dimensions and ports. Top and side views show measurements for installation.'

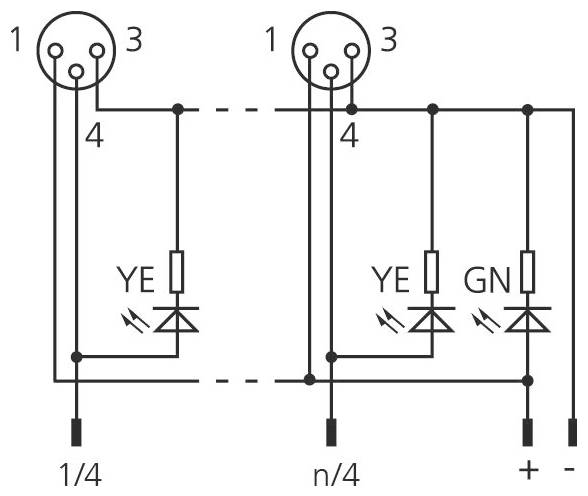

'1/4 to n/4 wiring diagram showing yellow (YE) and green (GN) LEDs, connections between numbered ports, and common positive line.'

1/3

Product type

Sensor & actuator box (passive)

No. of signal spaces

No. of splitters

8-way

Type

8I/OM8-3P2C-5/S370

Trunk line

Yes

Datasheet (PDF)

Fast track dispatch on Wed 14 Oct

5 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 85.99 / piece)

€ 85.99

incl. VAT

Only 5 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Rated voltage: 30V
Insulation resistance ≥108 Ω
Material seal (bush): FPM/FKM
Material contacts: Metal, CuZn, gold-plated
Material contact carrier: Plastic, PA, BK
Mechanical lifespan >100 mating cycles
IEC 61076-2-104 standard
Number of poles: 3
Protection class (mounted) IP65, IP67
Current load capacity per pin (at 40°C): 2.0 A
Ambient temperature: -30°C...+90°C
Pollution level 3
WIRE COLORS: PK, BU, WH, GN, RD, BK, YE, GY, BN, VT
Wire cross-section: 8 x 0.25 mm² + 2 x 0.75 mm²
Outer diameter of sheath 7.5 mm
Special features: Flame resistant, halogen-free, LABS-free, RoHS compliant, drag chain compatible
Bending radius (moving): Min. 10 x Ø cable
Halogen-free: Yes
LINE QUALITY S370, PUR, UL
Sheath color: BK, similar to RAL9005
Material wire insulation: PP
Material cable jacket: PUR
Drag chain insert: ≥5 MIO. Cycles
Temperature range (moving): -25°C...+90°C.
Temperature range (fixed): -40°C...+90°C.
Torsion: +/-180°/m, ≥ 0.5 MIO. Cycles
Constant resistance 5 mΩ
Connection type: Fixed cable
Switching logic PNP
Number of I/O slots: 8.0
Number of LEDs: 9.0
Operating voltage display LED GN
I/O distributor:8-way, with fixed cable connection
I/O slot: Socket, M8
Material housing: Plastic, PA, BK
Material thread insert: Metal, CuZn
Switching status display LED YE
Current carrying capacity Total current 6.0 A.

Product type: Sensor & actuator box (passive)

No. of signal spaces: 8

Type: 8I/OM8-3P2C-5/S370

Trunk line: Yes

No. of splitters: 8-way

Status indicator: LED

Signal type: PNP

: IP65
IP67

Max. power rating per slot: 2 A

Total current (direct supply): 6 A

Max. temperature: 90 °C

Min. temperature: -40 °C

Connector type (distribution boxes): M8 receptacle

Case material: PA

Total no. of pins: 3

Manufacturer part #: 8061796

Content: 1 pc(s)

Number of pins: 3

Power rating (total): 6.0 A

Power rating per I/O: 2.0 A

Documents & Downloads

Datasheet

Datasheet 3553464 Escha 8I/OM8-3P2C-5/S370 8061796 Sensor & actuator box (passive) M8 splitter + steel thread 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3553464 Escha 8I/OM8-3P2C-5/S370 8061796 Sensor & actuator box (passive) M8 splitter + steel thread 1 pc(s)

Description

Flexible, silicone and halogen-free control cable with high mechanical strength. The cable is resistant to chemicals, hydrolysis and microbes. The drag chain insert is at a bending radius of min. 10xd is possible. Through its welding spark resistance, the cable is very well suited for flexible use in the field of robot technology, machine tools and chip-removing production. The lines meet the requirements of UL and CSA (UL10493/20549; cULus).

This text is machine translated.
