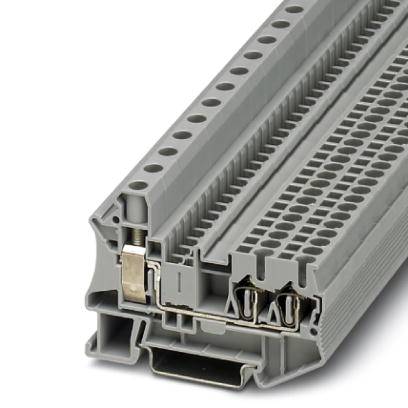

Name: Feed-through terminal block STU 10/ 4X2,5 3033139 Phoenix Contact
Brand: Phoenix Contact
SKU: 566212
Availability: InStock

Grey and yellow electrical switchgear, likely a terminal block system, shows details of connections and construction.

Product type

Serial continuity

Connection

Screws

Cross section (flexible) (max.)

16 mm²

Cross section (inflexible) (max.)

16 mm²

Nominal current - rounded value

55 A

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 30 Oct

52 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 50 pc(s))

Set(s)

Total (€ 6.58 / piece)

€ 329.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Feed-through terminal block STU 10/ 4X2,5

STU 10/ 4X2,5

Technical specifications

Product type: Serial continuity

Features: built-in jumper

Connection: Screws

Cross section (flexible) (min.): 0.5 mm²

Cross section (flexible) (max.): 16 mm²

Cross section (inflexible) (min.): 0.5 mm²

Cross section (inflexible) (max.): 16 mm²

AWG (min.): 20

AWG max.: 6

Clamp width: 10.3 mm

No. of rows: 1

Number of pins: 5

Factory colour: Grey

Nominal current: 55 A

Nominal current - rounded value: 55 A

Nominal voltage: 800 V

Min. stripping length: 8 mm

Stripping length (max.): 10 mm

Manufacturer part #: 3033139

Content: 50 pc(s)

Industrial packaging: Yes

Type: STU 10/ 4X2,5

Dim: (L x W x H) 68 x 10.3 x 48.3 mm

Width: 10.3 mm

Height: 48.3 mm

Length: 68 mm

Contamination level: 3

Flammability rating: V0

Connector colour: Grey

Insulation material: PA

Insulation: PA

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Connection

Cross section (flexible) (max.)

Cross section (flexible) (min.)

Cross section (inflexible) (max.)

Cross section (inflexible) (min.)

Factory colour

Nominal current - rounded value

Feed-through terminal block STU 10/ 4X2,5 3033139 Phoenix Contact

Item no:566212

Dispatches on Fri 30 Oct

52 Set(s)Conrad Electronic

This article

Screws

16 mm²

0.5 mm²

16 mm²

0.5 mm²

Grey

55 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 329.00^*

Feed-through terminal block ST 6-TWIN 3036466 Phoenix Contact

Item no:565622

Dispatches on Fri 30 Oct

971 Set(s)Conrad Electronic

Pull spring

6 mm²

0.2 mm²

10 mm²

0.2 mm²

Grey

41 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 169.99^*

Feed-through terminal block ST 6-TWIN BU 3036479 Phoenix Contact

Item no:565623

Dispatches on Fri 30 Oct

65 Set(s)Conrad Electronic

Pull spring

6 mm²

0.2 mm²

10 mm²

0.2 mm²

Blue

41 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 169.99^*

Feed-through terminal block STU 10/ 4X2,5 BU 3033142 Phoenix Contact

Item no:566211

Dispatches on Fri 30 Oct

1 Set(s)Conrad Electronic

Screws

16 mm²

0.5 mm²

16 mm²

0.5 mm²

Blue

55 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 329.00^*

Feed-through terminal block STS 4-TWIN 3031665 Phoenix Contact

Item no:565383

Unavailable

Conrad Electronic

Pull spring

4 mm²

0.08 mm²

6 mm²

0.08 mm²

Grey

32 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 104.99^*

Feed-through terminal block STS 4-TWIN BU 3036291 Phoenix Contact

Item no:565510

Unavailable

Conrad Electronic

Pull spring

4 mm²

0.08 mm²

6 mm²

0.08 mm²

Blue

32 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 104.99^*

Feed-through terminal block STS 4-TWIN OG 3037533 Phoenix Contact

Item no:565514

Unavailable

Conrad Electronic

Pull spring

4 mm²

0.08 mm²

6 mm²

0.08 mm²

Orange

32 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 114.99^*

Feed-through terminal block STS 4-TWIN RD 3037520 Phoenix Contact

Item no:565513

Unavailable

Conrad Electronic

Pull spring

4 mm²

0.08 mm²

6 mm²

0.08 mm²

Red

32 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 104.99^*

Feed-through terminal block STS 4-TWIN/L 3036592 Phoenix Contact

Item no:565619

Unavailable

Conrad Electronic

Pull spring

4 mm²

0.08 mm²

6 mm²

0.08 mm²

Grey

32 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 114.99^*

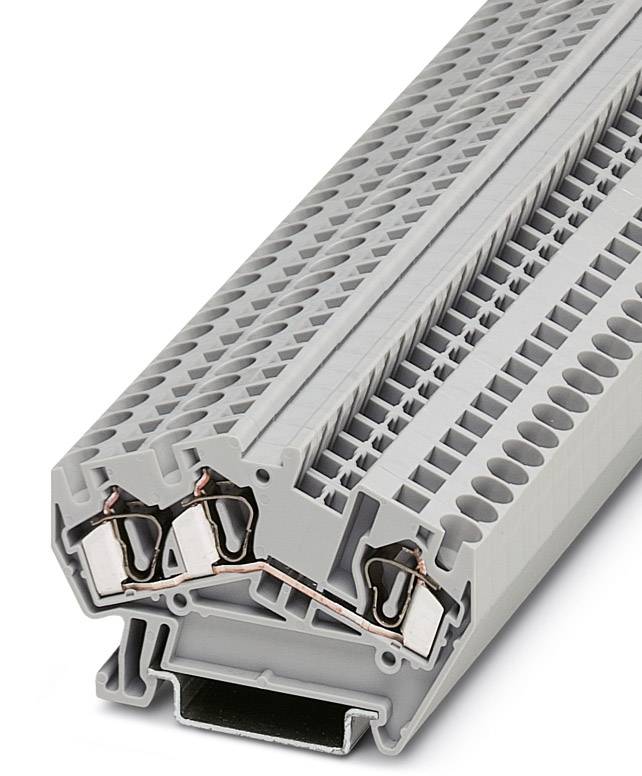

Feed-through terminal block STS 4-TWIN/L BU 3036589 Phoenix Contact

Item no:565620

Unavailable

Conrad Electronic

Pull spring

4 mm²

0.08 mm²

6 mm²

0.08 mm²

Blue

32 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 114.99^*

Documents & Downloads

Datasheet

Datasheet 566212 Feed-through terminal block STU 10/ 4X2,5 3033139 Phoenix Contact

User & Safety Instructions

User & Safety Instructions 566212 Feed-through terminal block STU 10/ 4X2,5 3033139 Phoenix Contact

Description

Feed-through terminal block, Connection method: Screw connection, Cross section: 0.5 mm² - 16 mm², AWG: 20 - 6, Width: 10.3 mm, Color: gray, Mounting type: NS 35/7,5, NS 35/15

Description

Feed-through terminal block, Connection method: Screw connection, Cross section: 0.5 mm² - 16 mm², AWG: 20 - 6, Width: 10.3 mm, Color: gray, Mounting type: NS 35/7,5, NS 35/15
