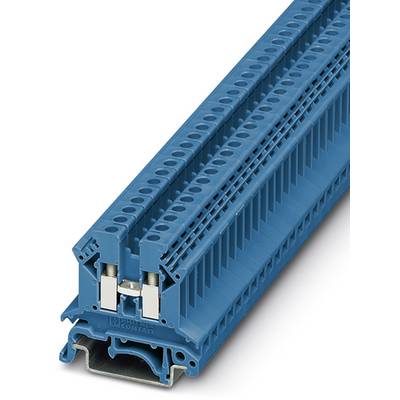

A blue terminal block with multiple connection openings and clamping screws, suitable for wiring in electrical control cabinets.

A blue terminal block with multiple connection openings and clamping screws, suitable for wiring in electrical control cabinets.

Image similar

Packaging type

Piece

Product type

Continuity

Connection

Screws

Cross section (flexible) (max.)

2.5 mm²

Cross section (inflexible) (max.)

4 mm²

Datasheet (PDF)

Phoenix Contact

Dispatches on Thu 22 Oct

2 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 50 pc(s))

Set(s)

Total (€ 3.40 / piece)

€ 169.99

incl. VAT

Only 2 Set(s) available

14-day return policy included

Report legal concerns

Technical specifications

Packaging type: Piece

Product type: Continuity

Features: with screw connection

Connection: Screws

Cross section (flexible) (min.): 0.2 mm²

Cross section (flexible) (max.): 2.5 mm²

Cross section (inflexible) (min.): 0.2 mm²

Cross section (inflexible) (max.): 4 mm²

AWG (min.): 24

AWG max.: 14

Clamp width: 6.2 mm

No. of rows: 1

Number of pins: 2

Factory colour: Blue

Nominal current: 24 A

Nominal current - rounded value: 24 A

Nominal voltage: 690 V

Stripping length (max.): 7 mm

Manufacturer part #: 3001048

Content: 50 pc(s)

Industrial packaging: Yes

Type: UK 2,5 B BU

Dim: (L x W x H) 42.5 x 6.2 x 42 mm

Width: 6.2 mm

Height: 42 mm

Length: 42.5 mm

Connector colour: Blue

Insulation material: PA

Insulation: PA

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 719567 Feed-through terminal block UK 2,5 B BU 3001048 Phoenix Contact

User & Safety Instructions

User & Safety Instructions 719567 Feed-through terminal block UK 2,5 B BU 3001048 Phoenix Contact

Description

Feed-through terminal block, Connection method: Screw connection, Cross section: 0.2 mm² - 4 mm², AWG: 24 - 12, Width: 6.2 mm, Color: blue, Mounting type: NS 35/7,5, NS 35/15

Description

Feed-through terminal block, Connection method: Screw connection, Cross section: 0.2 mm² - 4 mm², AWG: 24 - 12, Width: 6.2 mm, Color: blue, Mounting type: NS 35/7,5, NS 35/15
