Name: Feed-through terminal block UT 10 GN 3046333 Phoenix Contact
Brand: Phoenix Contact
SKU: 565866
Availability: InStock

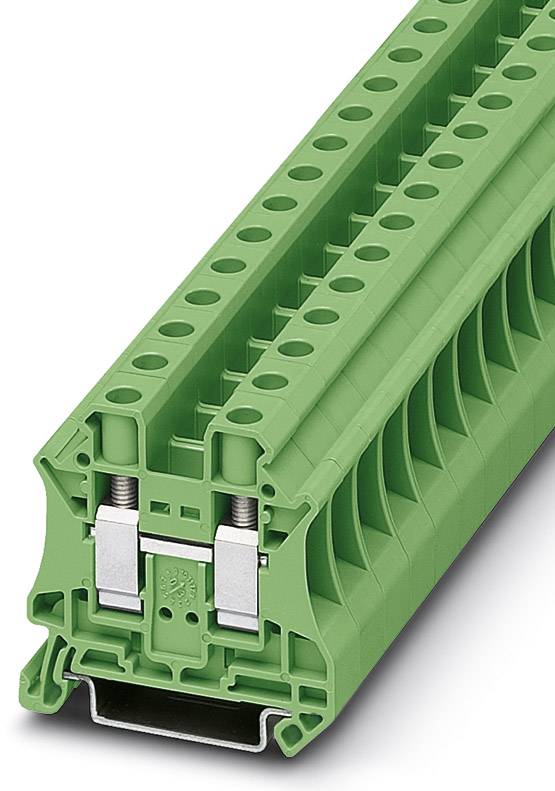

Green terminal block with two screw connections for electrical connections, pictured on a white background.

Image similar

Packaging type

Piece

Product type

Serial continuity

Connection

Screws

Cross section (flexible) (max.)

16 mm²

Cross section (inflexible) (max.)

16 mm²

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 30 Oct

41 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 50 pc(s))

Set(s)

Total (€ 2.50 / piece)

€ 124.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Packaging type: Piece

Product type: Serial continuity

Features: with screw connection

Connection: Screws

Cross section (flexible) (min.): 0.5 mm²

Cross section (flexible) (max.): 16 mm²

Cross section (inflexible) (min.): 0.5 mm²

Cross section (inflexible) (max.): 16 mm²

AWG (min.): 20

AWG max.: 6

Clamp width: 10.2 mm

No. of rows: 1

Number of pins: 2

Factory colour: Green

Nominal current: 57 A

Nominal current - rounded value: 57 A

Nominal voltage: 1000 V

Stripping length (max.): 10 mm

Manufacturer part #: 3046333

Content: 50 pc(s)

Industrial packaging: Yes

Type: UT 10 GN

Dim: (L x W x H) 47.7 x 10.2 x 47.5 mm

Width: 10.2 mm

Height: 47.5 mm

Length: 47.7 mm

Contamination level: 3

Flammability rating: V0

Connector colour: Green

Insulation material: PA

Insulation: PA

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Cross section (flexible) (max.)

Cross section (flexible) (min.)

Cross section (inflexible) (max.)

Cross section (inflexible) (min.)

Factory colour

Nominal current - rounded value

Product type

Feed-through terminal block UT 10 GN 3046333 Phoenix Contact

Item no:565866

Dispatches on Fri 30 Oct

41 Set(s)Conrad Electronic

This article

16 mm²

0.5 mm²

16 mm²

0.5 mm²

Green

57 A

Serial continuity

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 124.99^*

Disconnect and test disconnect terminal block UT 2,5-MTD BU 3064108 Phoenix Contact

Item no:566274

Fast track dispatch on Wed 28 Oct

3 Set(s)Conrad Electronic

4 mm²

0.14 mm²

4 mm²

0.14 mm²

Blue

24 A

Continuity

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 48.99^*

Disconnect and test disconnect terminal block UT 2,5-MTD P/P 3064098 Phoenix Contact

Item no:566273

Dispatches on Thu 19 Nov

Conrad Electronic

4 mm²

0.14 mm²

4 mm²

0.14 mm²

Grey

24 A

Continuity

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 63.99^*

Feed-through terminal block UT 10 BK 3046320 Phoenix Contact

Item no:565865

Dispatches on Fri 30 Oct

90 Set(s)Conrad Electronic

16 mm²

0.5 mm²

16 mm²

0.5 mm²

Black

57 A

Serial continuity

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 119.99^*

Feed-through terminal block UT 10 OG 3046281 Phoenix Contact

Item no:565861

Dispatches on Tue 17 Nov

Conrad Electronic

16 mm²

0.5 mm²

16 mm²

0.5 mm²

Orange

57 A

Serial continuity

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 124.99^*

Feed-through terminal block UT 10 RD 3046304 Phoenix Contact

Item no:565863

Dispatches on Fri 30 Oct

98 Set(s)Conrad Electronic

16 mm²

0.5 mm²

16 mm²

0.5 mm²

Red

57 A

Serial continuity

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 119.99^*

Feed-through terminal block UT 10 SL 3064247 Phoenix Contact

Item no:566294

Dispatches on Fri 30 Oct

4 Set(s)Conrad Electronic

16 mm²

0.5 mm²

16 mm²

0.5 mm²

Grey

57 A

Continuity

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 124.99^*

Feed-through terminal block UT 10 WH 3046317 Phoenix Contact

Item no:565864

Dispatches on Fri 30 Oct

128 Set(s)Conrad Electronic

16 mm²

0.5 mm²

16 mm²

0.5 mm²

White

57 A

Serial continuity

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 124.99^*

Feed-through terminal block UT 16 3044199 Phoenix Contact

Item no:565878

Fast track dispatch on Wed 28 Oct

1 Set(s)Conrad Electronic

25 mm²

1.5 mm²

25 mm²

1.5 mm²

Grey

76 A

Serial continuity

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 144.99^*

Feed-through terminal block UT 16 BU 3044209 Phoenix Contact

Item no:565879

Dispatches on Fri 30 Oct

471 Set(s)Conrad Electronic

25 mm²

1.5 mm²

25 mm²

1.5 mm²

Blue

76 A

Serial continuity

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 144.99^*

Documents & Downloads

Datasheet

Datasheet 565866 Feed-through terminal block UT 10 GN 3046333 Phoenix Contact

User & Safety Instructions

User & Safety Instructions 565866 Feed-through terminal block UT 10 GN 3046333 Phoenix Contact

Description

Feed-through terminal block, Connection method: Screw connection, Cross section: 0.5 mm² - 16 mm², AWG: 20 - 6, Width: 10.2 mm, Color: green, Mounting type: NS 35/7,5, NS 35/15

Hints

Special order, no right of withdrawal.

Description

Feed-through terminal block, Connection method: Screw connection, Cross section: 0.5 mm² - 16 mm², AWG: 20 - 6, Width: 10.2 mm, Color: green, Mounting type: NS 35/7,5, NS 35/15
