1/5
Fein ASCM18-4QM AS METAL ADVANCED TOP SET 71161563000 Cordless drill 18 V 5 Ah Li-ion
EAN:
Part number:
Item no:
Sales and shipping:
Number
Total (€ 646.22 / piece)
€
Highlights & Details
Fein ASCM18-4QM AS METAL ADVANCED TOP SET 71161563000 Cordless drill 18 V 5 Ah Li-ion
- 18 V/5 Ah Li-ion battery
- Torque (max.) (details) 130 Nm
- Torque levels 15 + 1
Technical specifications
- Battery voltage: 18 V
- Battery compatibility: Li-Ion / ProCORE Li-Ion
- Battery interface 18 V AMPShare
- Motor: Brushless
- Idling speed 430 / 850 / 2000 / 4000
- Drill-Ø Wood: 60 mm
- Weight without rechargeable battery: 1.30 kg
- 4 gear
- Accessories interface: QuickIN
- Max. Torque (hard/soft) 130 (70 / 50) Nm
- 15 + 1 torque control
- Drill chuck range 1.5 - 13 mm
- Screws 10 x 400 mm
- Tap holes M 14
- Drill-Ø Steel Spiral drill 13 mm
- Drill-Ø Steel Core driller: 30 mm
- Drill-Ø Steel Hole saws: 80 mm
- Product type
Cordless drill
- Voltage
18 V
- Capacity (mAh, Ah)
5 Ah
- Technology
Li-ion
- Idle speed (details)
430 / 850 / 2000 / 4000 U/min
- Max. torque
130 Nm
- Torque levels
15 + 1
- Max. drill diameter
1.5 - 13 mm
- Transmission type
4-speed
- Weight
1.30 kg
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3323876 Fein ASCM18-4QM AS METAL ADVANCED TOP SET 71161563000 Cordless drill 18 V 5 Ah Li-ion
Description
4-speed battery-operated drill/screwdriver in user set|ASCM 18-4 QM AS Metal Advanced Top Set|The all-rounder ASCM 18-4 QM AS with 8-piece bit set, QuickIN CV bit holder 1/4", QuickIN tap drill chucks 5.0 mm and 1880 mm, HSS cobalt 18% twist drill set 6-piece, HSS screw set 7-piece, one rechargeable battery (GBA 5 V 4.5 Ah AS) and fast battery) (GAS 6.
This text is machine translated.
This text is machine translated.
Features
- 4-speed full metal gear With speeds up to 4000 rpm for optimum cutting speeds in metal for each hole from 1.5 to 80 mm.
- The largest possible application with the FEIN QuickIN-system for multi-functional use around drilling, core-drilling, thread-drilling, sinks and screws.
- Quick-release, tool-free replacement of the QuickIN attachments between the applications in metal and wood with just one machine.
- Very safe working. Kickback monitoring stops the machine.
- More control through removable additional handle.
- The brushless, powerful FEIN PowerDrive motor, with up to 30% higher efficiency, enables a higher life span.
- High torque up to a maximum of 130 Nm.
- QuickIN full metal drill chuck (120 Nm) with carbide-tipped clamping jaws and high clamping forces.
- Electronic torque setting (15+1).
- Intuitive control panel with dimmable LED for perfect lighting of the working place depending upon the material.
- Ergonomic and flexible use with side-mounted bit and belt holder.
- Extensive user protection through restart protection, electronic overload protection and brake.
- 8-piece bit set. Bit holder and 7 bits (PZ2, PZ3, T15, T20, T25, T30, T40, 60-1/4).
- HSS cobalt 5% spiral drill set, 6-piece (2 mm, 3 mm, 4 mm, 5 mm, 6 mm, 8 mm).
- HSS tap set 7-piece (M3, M4, M5, M6, M8, M10, M12).
- Screwed 10 x 400 mm screws without pre-drilling.
- AMPShare interface enables 1 700 screw connections (5 x 40 mm in wood) per battery charge (GBA 18 V 5 Ah).
- The innovative reset function allows wood screws to be tightened at reduced speed for perfect results.
- Compatible with Bosch Professional 18 V batteries since 2008 and AMPShare batteries.
- Maximum work progress with AMPShare 18 V ProCORE batteries: COOLPACK 2.0 technology provides a 135% longer battery life. The latest cell technology and intelligent battery management ensure 87% more power than conventional batteries. Electronic Cell Protection (ECP) protects the battery against overload, overheating and total discharge
- Best equipped for every use. Mobile working with the L-BOXX system.

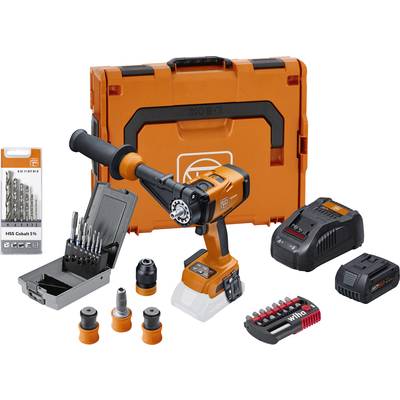

Scope of delivery
- 1 ASCM 18-4 QM AS (incl. handle, belt clip, bit holder)
- 1 battery pack GBA 18V 5.0 Ah AS
- 1 RAPID CHARGER GAL 1880 CV AS
- 1 8-piece bit set
- 1 QuickIN Bit holder
- 1 QuickIN threaded-drill chuck 4.5 mm
- 1 QuickIN threaded-drill chuck 6 mm
- 1 HSS cobalt 5% spiral drill set, 6 piece
- 1 plastic tool case (L-BOXX 136)
- 1 HSS tap drill set, 7-piece
