FESTO 559264 DSNU-16-40-PPS-A Standard cyclinder Stroke length: 40 mm 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 71.99 / piece)
€ 71.99
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details

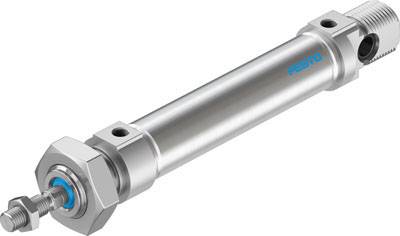

Standard cyclinder DSNU-16-40-PPS-A
Technical specifications
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Product type
Standard cyclinder
- Stroke length
40 mm
- Min. operating pressure
1 bar
- Max. operating pressure
10 bar
- (Ø)
16 mm
- Manufacturer part #
559264
- Type
Mounting type: with accessories
- Weight
89.9 g
- Size
16
- Thread mount
M6
- Pneumatics connector
M5
- Piston diameter
16 mm
- Piston rod material
Steel
- Piston rod thread
M6
- Force (max.)
120.6 N
- Material
PPS
- Max. ambient temperature
80 °C
- Min. ambient temperature
-20 °C
- Operating principle
Double-acting
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1944054 FESTO 559264 DSNU-16-40-PPS-A Standard cyclinder Stroke length: 40 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1944054 FESTO 559264 DSNU-16-40-PPS-A Standard cyclinder Stroke length: 40 mm 1 pc(s)
