Name: FESTO Air gap sensor 1 pc(s) SOPA-CM2H-R1-WQ6-2P-M12 M12 plug (5-pin)
Brand: FESTO
SKU: 2204452
Availability: BackOrder

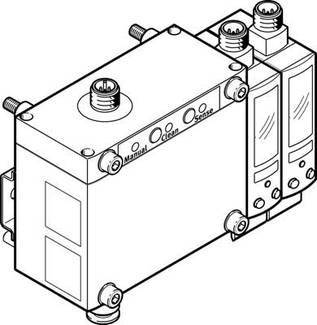

Technical drawing of an electrical device with multiple connections and control elements, labelled with 'Manual', 'Clean' and 'Sense'.

Image similar

Product type

Air gap sensor

Connector

M12 plug (5-pin)

Max. operating voltage

26.4 V DC

Type

SOPA-CM2H-R1-WQ6-2P-M12

Outputs

Current (analogue)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 1,289.00 / piece)

€ 1,289.00

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

Air gap sensor

Technical specifications

Display type: Light-LCD multi-color
Fastening method: Optional:
With through hole
With DIN rail
With wall/surface holder
Operating pressure: 4 ... 7 bar
Operating medium: Compressed air according to ISO 8573-1:2010 [7:4:4]
Operating voltage range DC: 22.8 ... 26.4 V
CE mark (see declaration of conformity): According to EU EMC directive
According to EU-RoHS-RL
Setting options: Teach-in
Via display and buttons
Electrical connection: Connector
Round design
According to EN 60947-5-2
M12x1
5-pin
Detection range: 20 ... 200 µm
Note on operating and control medium: Oiled operation possible (required in further operation)
KC-MARK: KC-EMC
Short-circuit resistance: Isochronous
Tamper protection: Electronic locking
Max. output current 100 mA
Measuring principle: Pneumatic
Pneumatic connection: QS-6
Product weight: 70 g
IP65 rating
According to IEC 60529
Ambient temperature: 0 ... 50 °C
Reverse polarity protection: For all electrical connections
Material housing: PA-reinforced
Material information: Free of copper and PTFE
Complies with RoHS
Repeat accuracy switching point: ±2.5 µm detection range 30 µm to 150 µm
±5 µm detection range 20 to 200µm
Approval: RCM Mark
C UL us - Recognized (OL)

Product type: Air gap sensor

Type: SOPA-CM2H-R1-WQ6-2P-M12

Connector: M12 plug (5-pin)

Outputs: Current (analogue)

Output signal (max.): 100 mA

Interfaces: M12 plug

Min. operating voltage: 22.8 V DC

Max. operating voltage: 26.4 V DC

Operating voltage: 22.8 - 26.4 V DC

: IP65

Min. temperature: 0 °C

Max. temperature: +50 °C

Weight: 570 g

Content: 1 pc(s)

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Connector

Max. operating voltage

FESTO Air gap sensor 1 pc(s) SOPA-CM2H-R1-WQ6-2P-M12 M12 plug (5-pin)

Item no:2204452

Dispatches on Thu 22 Oct

Conrad Electronic

This article

M12 plug (5-pin)

26.4 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,289.00^*

FESTO Air gap sensor 1 pc(s) SOPA-CM1H-R1-HQ6-2N-M12 4 bar up to 7 bar M12 plug (5-pin)

Item no:2204447

Dispatches on Thu 22 Oct

Conrad Electronic

M12 plug (5-pin)

26.4 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 845.00^*

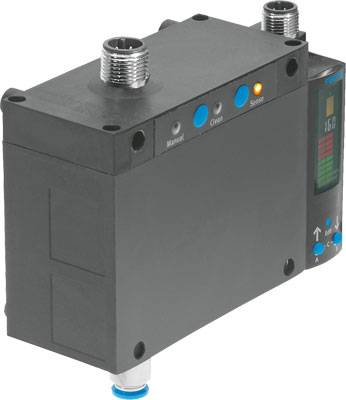

FESTO Air gap sensor 1 pc(s) SOPA-CM1H-R1-HQ6-PNLK-A-M12 Plug 1 breaker, 1 maker Piece

Item no:2803846

Dispatches on Tue 27 Oct

Conrad Electronic

Plug

26.4 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 705.00^*

FESTO Air gap sensor 1 pc(s) SOPA-CM1H-R1-HQ6-PNLK-VB-M12 Plug 1 breaker, 1 maker

Item no:2803845

Dispatches on Tue 27 Oct

Conrad Electronic

Plug

26.4 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 705.00^*

FESTO Air gap sensor 1 pc(s) SOPA-CM1H-R1-WQ6-2N-M12 M12 plug (5-pin)

Item no:2204455

Dispatches on Thu 22 Oct

Conrad Electronic

M12 plug (5-pin)

26.4 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 729.00^*

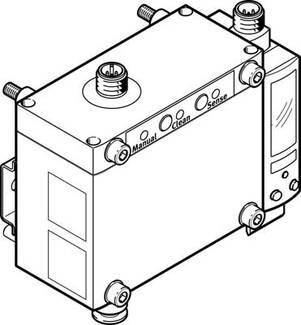

FESTO Air gap sensor 1 pc(s) SOPA-CM1H-R1-WQ6-2P-M12 4 bar up to 7 bar M12 plug (5-pin)

Item no:2204451

Dispatches on Thu 22 Oct

Conrad Electronic

M12 plug (5-pin)

26.4 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 859.00^*

FESTO Air gap sensor 1 pc(s) SOPA-CM2H-R1-HQ6-2N-M12 4 bar up to 7 bar M12 plug (5-pin)

Item no:2204448

Dispatches on Thu 22 Oct

Conrad Electronic

M12 plug (5-pin)

26.4 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,269.00^*

FESTO Air gap sensor 1 pc(s) SOPA-CM2H-R1-HQ6-2P-M12 4 bar up to 7 bar M12 plug (5-pin)

Item no:2204444

Dispatches on Thu 22 Oct

Conrad Electronic

M12 plug (5-pin)

26.4 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,269.00^*

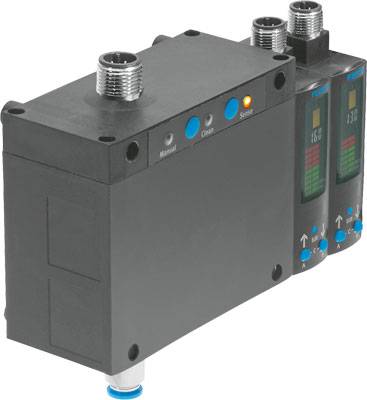

FESTO Air gap sensor 1 pc(s) SOPA-CM2H-R1-HQ6-PNLK-A-M12 Plug 1 breaker, 1 maker Piece

Item no:2803848

Dispatches on Tue 27 Oct

Conrad Electronic

Plug

26.4 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,065.00^*

FESTO Air gap sensor 1 pc(s) SOPA-CM2H-R1-HQ6-PNLK-VB-M12 Plug 1 breaker, 1 maker Piece

Item no:2803847

Dispatches on Tue 27 Oct

Conrad Electronic

Plug

26.4 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,065.00^*

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2204452 FESTO Air gap sensor 1 pc(s) SOPA-CM2H-R1-WQ6-2P-M12 M12 plug (5-pin)

More interesting products

(^*All information is plus legal VAT)

-28%

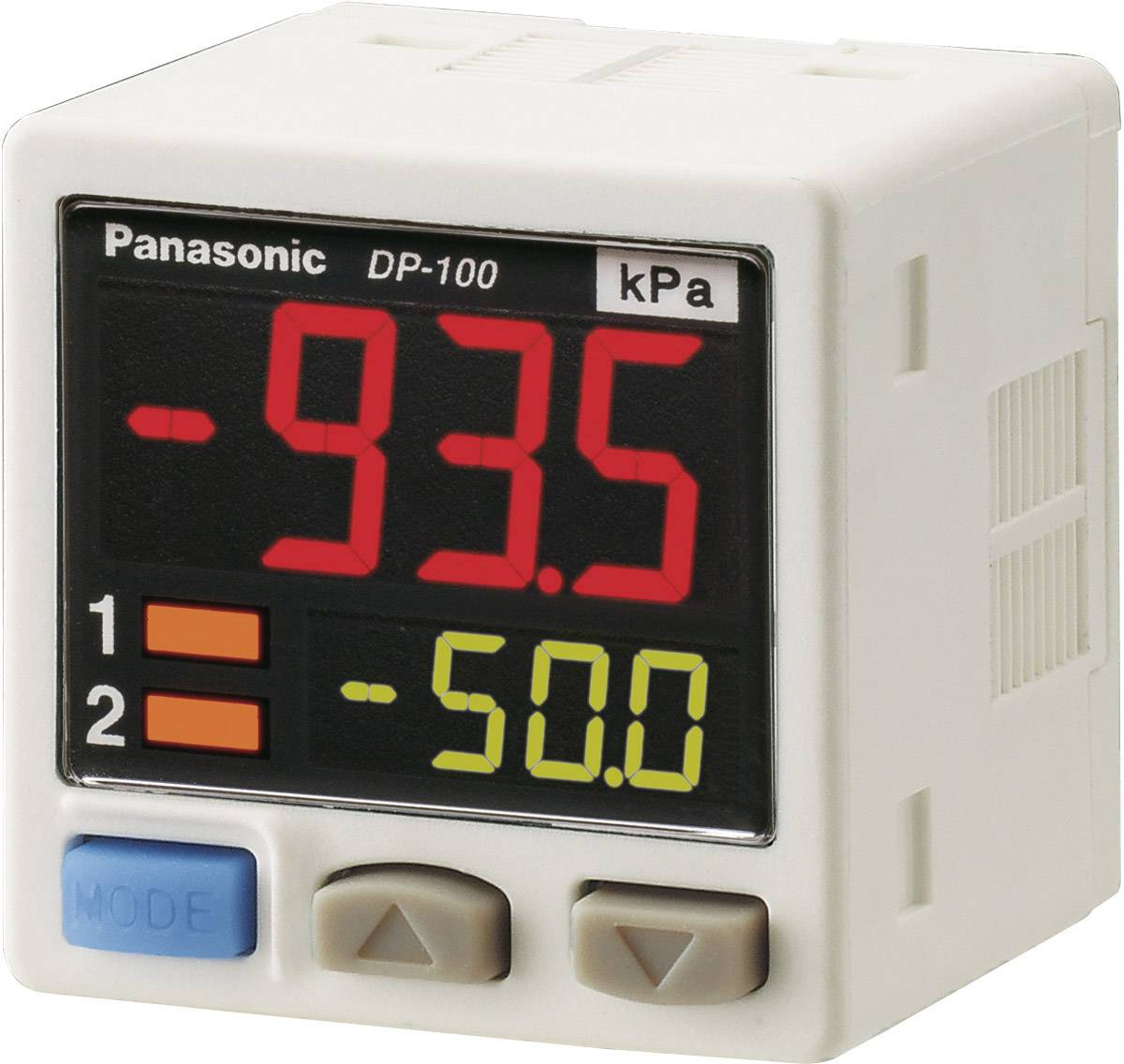

Panasonic Pressure sensor 1 pc(s) DP-102-E-P -1 bar up to 10 bar Cable, open end (L x W x H) 42.5 x 30 x 30 mm

Conrad Electronic

€ 180.00

€ 129.99^*

B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1192-007 0 bar up to 10 bar Cable (Ø x L) 27 mm x 53 mm

Conrad Electronic

€ 134.99^*

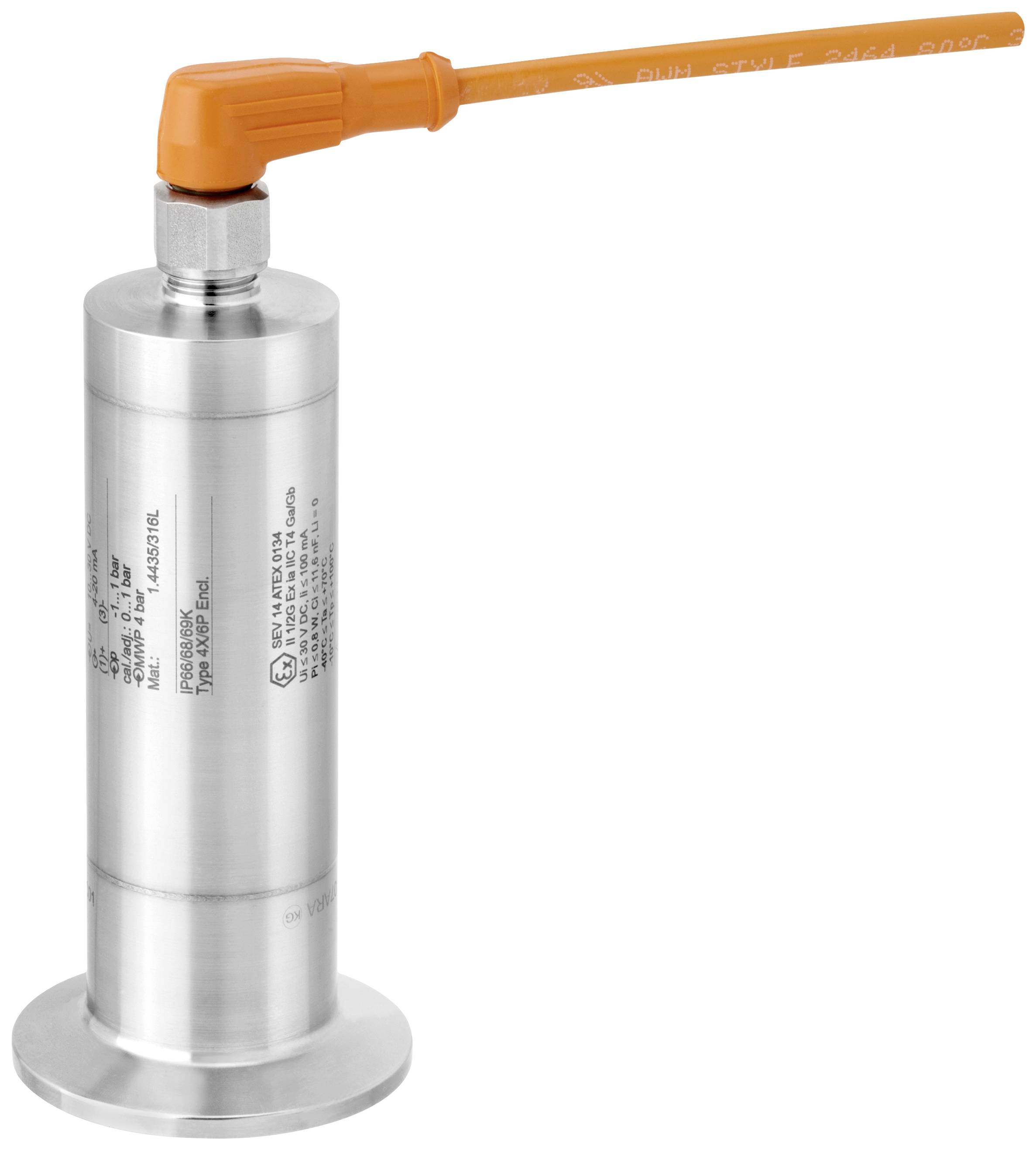

Endress+Hauser PMP23-AA1M1PB3CJ Pressure sensor 1 pc(s) -1 bar up to 10 bar M12 Analogue Single

Conrad Electronic

€ 395.00^*

B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1292-007 0 bar up to 10 bar Cable

Conrad Electronic

€ 159.99^*

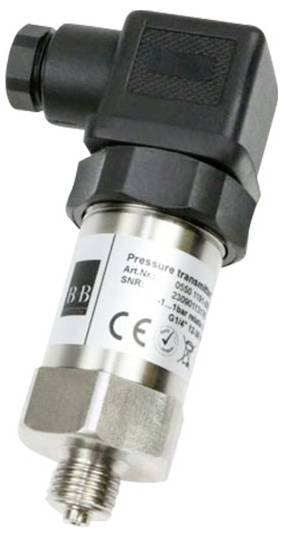

B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1281-006 0 bar up to 6 bar ISO 4400 square connector Piece

Conrad Electronic

€ 99.99^*

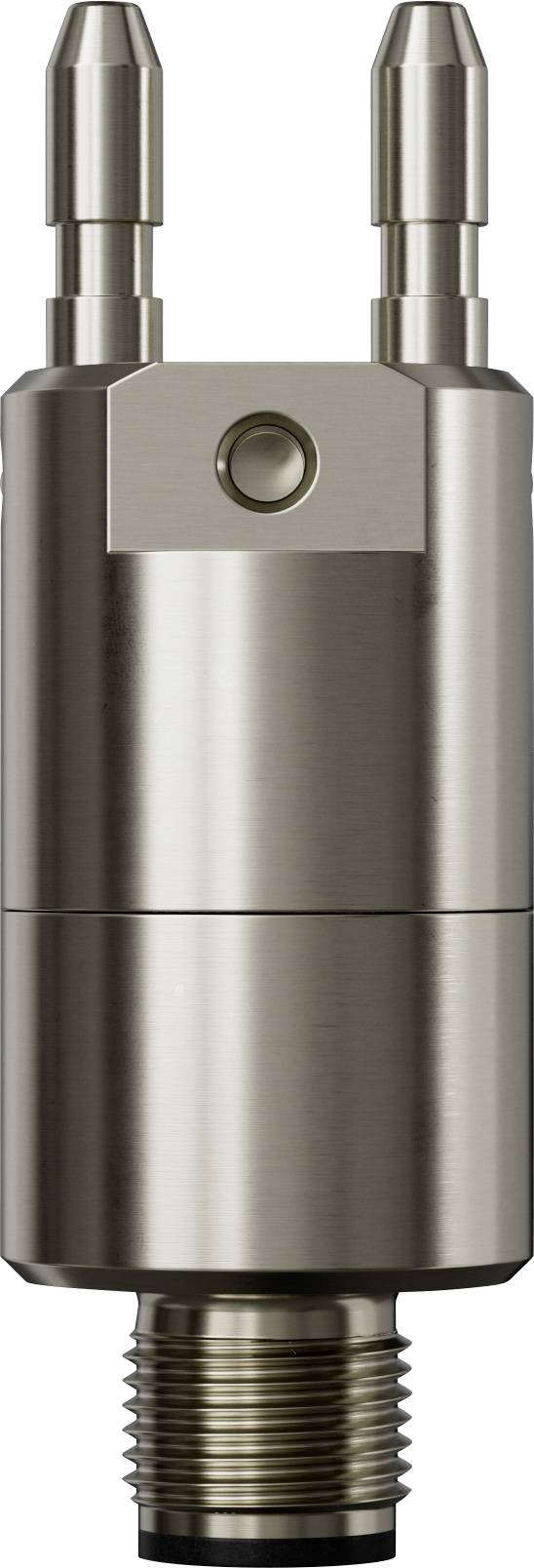

Senseca Pressure sensor 1 pc(s) DX 210-200kPa 200 kPa (max) (Ø x L) 21.7 mm x 62 mm

Conrad Electronic

€ 224.99^*

KYOCERA/AVX Pressure sensor 1 pc(s) 9676010930 0 bar up to 6 bar M18 (Ø x L) 28 mm x 58 mm

Conrad Electronic

€ 109.99^*

KYOCERA/AVX Pressure sensor 1 pc(s) 9677010950 0 bar up to 10 bar M18 (Ø x L) 28 mm x 64 mm

Conrad Electronic

€ 89.99^*

-31%

Panasonic Pressure sensor 1 pc(s) DP-102 -1 bar up to 10 bar Cable, open end (L x W x H) 42.5 x 30 x 30 mm

Conrad Electronic

€ 180.00

€ 124.99^*

KYOCERA/AVX Pressure sensor 1 pc(s) 9670501016 -1 bar up to 1 bar G 1/4" (Ø x L) 22 mm x 86 mm

Conrad Electronic

€ 249.99^*

B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1291-003 0 bar up to 1.6 bar ISO 4400 square connector

Conrad Electronic

€ 159.99^*

KYOCERA/AVX Pressure sensor 1 pc(s) 9677010900 0 bar up to 10 bar M18 (Ø x L) 28 mm x 64 mm

Conrad Electronic

€ 104.99^*

Senseca Pressure transducer 1 pc(s) Precont PU4SK 0 bar up to 10 bar M12 plug (4-pin, A coded) (Ø x L) 27 mm x 95 mm

Conrad Electronic

€ 325.00^*

-24%

Panasonic Pressure sensor 1 pc(s) DP-111-E-P-J -1 bar up to 1 bar M8 (4-pin) (L x W x H) 42.5 x 30 x 30 mm

Conrad Electronic

€ 210.00

€ 159.99^*

B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1191-007 0 bar up to 10 bar (Ø x L) 27 mm x 53 mm Piece

Conrad Electronic

€ 144.99^*

Senseca Pressure transducer 1 pc(s) Precont PU4SK -1 bar up to 600 bar M12 plug (4-pin, A coded) (Ø x L) 27 mm x 110 mm

Conrad Electronic

€ 325.00^*

KYOCERA/AVX Pressure sensor 1 pc(s) 9670500135 0 bar up to 20 bar G 1/4" (Ø x L) 22 mm x 86 mm

Conrad Electronic

€ 189.99^*

Senseca Pressure sensor 1 pc(s) DX245-2.5bar-00-L01 25 bar (max) G 1/2", M12 (4-pin) (Ø x L) 36 mm x 94 mm Carton

Conrad Electronic

€ 515.00^*

B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 2181-003 0 bar up to 5 bar ISO 4400 square connector Piece

Conrad Electronic

€ 164.99^*

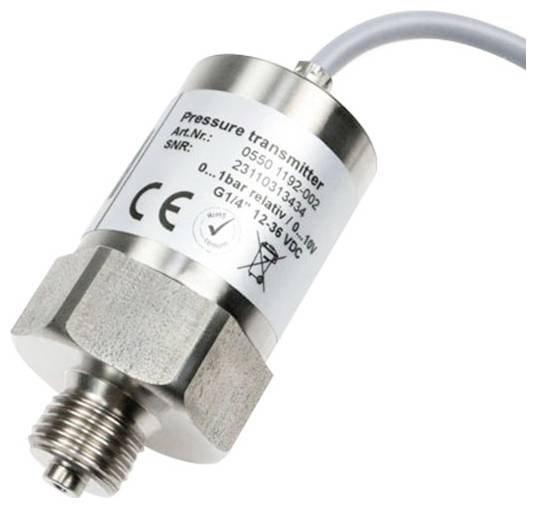

B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1392-002 0 bar up to 1 bar Cable Single
