Name: FESTO Angled valve 1002559 VZXF-L-M22C-M-A-N112-350-M1-V4V4T-80-16 Enclosure material Cast steel 1 pc(s)
Brand: FESTO
SKU: 2121983
Availability: BackOrder

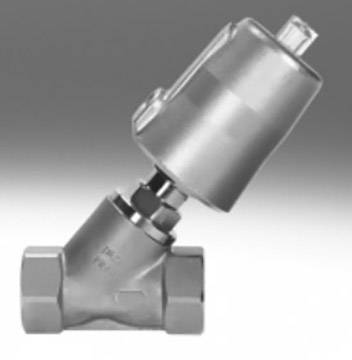

Pneumatically actuated Y-form metal valve, used in industrial applications for controlling liquids or gases.

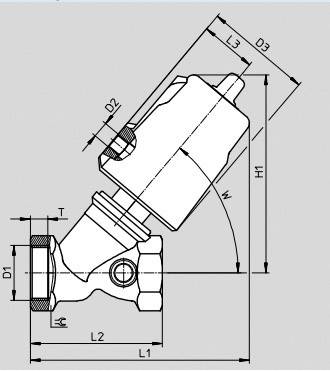

Technical drawing of a valve with dimensions and inclination angle. Contains details of component lengths and diameters.

1/2

Image similar

Datasheet (PDF)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 975.00 / piece)

€ 975.00

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

Technical specifications

Mounting type: cable installation

Operating medium: Compressed Air

Product type: Angled valve

Enclosure material: Cast steel

Connection: G 1/8

Max. operating pressure: 10 bar

Operation: Pneumatic

Type: Corrosion resistance class KBK: 3-strong corrosion stress

Manufacturer part #: 1002559

Operating pressure (min.): 6 bar

Function: 2/2 normally closed mono-stable

Weight: 4300 g

Media temperature (range): -40 up to +200 °C

Max. media temperature: +200 °C

Media temperature (min.): -40 °C

Medium: Gases
Filtered compressed air (oil-free)
Steam

Nominal width: 35 mm

Max. ambient temperature: +60 °C

Min. ambient temperature: -10 °C

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Connection

Enclosure material

Operating medium

FESTO Angled valve 1002500 VZXF-L-M22C-M-A-G12-120-H3B1-50-16 Enclosure material Gunmetal 1 pc(s)

Item no:2121936

Dispatches on Tue 27 Oct

Conrad Electronic

G 1/8

Gunmetal

According to ISO 8573-1:2010 compressed air [7:4:4]

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 154.99^*

FESTO Angled valve 1002501 VZXF-L-M22C-M-B-G12-120-H3B1-50-16 Enclosure material Brass Sealant PTFE 1 pc(s)

Item no:2803790

Dispatches on Wed 28 Oct

Conrad Electronic

G 1/8

Brass

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 179.99^*

FESTO Angled valve 1002502 VZXF-L-M22C-M-A-G34-160-H3B1-50-16 Enclosure material Gunmetal 1 pc(s)

Item no:2121937

Dispatches on Tue 27 Oct

Conrad Electronic

G 1/8

Gunmetal

According to ISO 8573-1:2010 compressed air [7:4:4]

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 164.99^*

FESTO Angled valve 1002504 VZXF-L-M22C-M-A-G1-230-H3B1-50-16 Enclosure material Gunmetal 1 pc(s)

Item no:2121938

Dispatches on Tue 27 Oct

Conrad Electronic

G 1/8

Gunmetal

According to ISO 8573-1:2010 compressed air [7:4:4]

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 179.99^*

FESTO Angled valve 1002505 VZXF-L-M22C-M-B-G1-230-H3B1-50-10 Enclosure material Brass Sealant PTFE 1 pc(s)

Item no:2803791

Dispatches on Wed 28 Oct

Conrad Electronic

G 1/8

Brass

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 199.99^*

FESTO Angled valve 1002506 VZXF-L-M22C-M-A-G114-290-H3B1-50-10 Enclosure material Gunmetal 1 pc(s)

Item no:2121939

Dispatches on Tue 27 Oct

Conrad Electronic

G 1/8

Gunmetal

Compressed Air

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 214.99^*

FESTO Angled valve 1002507 VZXF-L-M22C-M-B-G114-290-H3B1-50-7 1 pc(s)

Item no:1944816

Dispatches on Tue 27 Oct

Conrad Electronic

G 1 1/4

Compressed air according to ISO 8573-1:2010 [7:4:4]

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 234.99^*

FESTO Angled valve 1002508 VZXF-L-M22C-M-A-G112-350-H3B1-50-8 Enclosure material Gunmetal 1 pc(s)

Item no:2121940

Dispatches on Tue 27 Oct

Conrad Electronic

G 1/8

Gunmetal

According to ISO 8573-1:2010 compressed air [7:4:4]

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 244.99^*

FESTO Angled valve 1002509 VZXF-L-M22C-M-B-G112-350-H3B1-50-6 Enclosure material Gunmetal 1 pc(s)

Item no:2121941

Dispatches on Tue 27 Oct

Conrad Electronic

G 1/8

Gunmetal

According to ISO 8573-1:2010 compressed air [7:4:4]

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 269.00^*

FESTO Angled valve 1002510 VZXF-L-M22C-M-A-G2-430-H3B1-50-4 Enclosure material Gunmetal 1 pc(s)

Item no:2121942

Dispatches on Tue 27 Oct

Conrad Electronic

G 1/8

Gunmetal

According to ISO 8573-1:2010 compressed air [7:4:4]

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 295.00^*

Documents & Downloads

Datasheet

Datasheet 2121983 FESTO Angled valve 1002559 VZXF-L-M22C-M-A-N112-350-M1-V4V4T-80-16 Enclosure material Cast steel 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2121983 FESTO Angled valve 1002559 VZXF-L-M22C-M-A-N112-350-M1-V4V4T-80-16 Enclosure material Cast steel 1 pc(s)

Description

Angle valve VZXF-L-M22 C-M-A-N 112-350-M1-V4V4T -80-20 Design = seat valve with return spring, operating method = pneumatically, sealing principle = soft, mounting position, type ==any cable installation

This text is machine translated.

Hints

The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
