Name: FESTO Angled valve 8111599 VZXA-A-TS7-3/4"-M6-B1T-16-K-75-20-PR-PM Enclosure material PA Sealant FPM 1 pc(s)
Brand: FESTO
SKU: 2803814
Availability: BackOrder

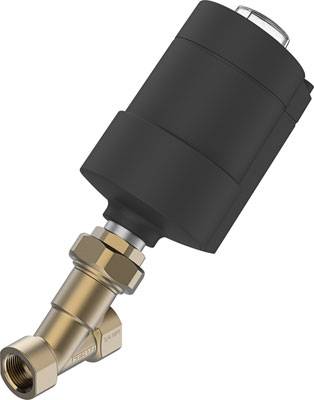

A skew shut-off valve with a black housing and a metallic connection piece, suitable for industrial applications.

Image similar

Datasheet (PDF)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 395.00 / piece)

€ 395.00

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Technical specifications

Type: VZXA-A-TS7-3/4"-M6-B1T-16-K-75-20-PR-PM

Product type: Angled valve

Enclosure material: PA

Connection: G 1/8

Max. operating pressure: 7 bar

Operating temperature: -10 °C (min)

Min. operating temperature: -10 °C

Manufacturer part #: 8111599

Drive size Ø: 75 mm

Size: 75

Operating pressure (min.): 5 bar

Sealant: FPM

Function: 2/2 normally closed mono-stable

Weight: 2321 g

Media temperature (range): -10 up to +60 °C

Max. media temperature: +60 °C

Media temperature (min.): -10 °C

Medium: Inert gases
Filtered compressed air
Steam

Features: Sleeve

: IP65
IP67

Max. ambient temperature: +60 °C

Min. ambient temperature: 0 °C

Operating principle: OFF (spring shut)

KV value: 12.7 m³/h

UKCA: not relevant

Variants(All information include VAT, plus shipping costs)

Max. operating pressure

Enclosure material

FESTO Angled valve 8060513 VZXA-A-TS6-13-M2-V13T-16-K-46-17-PR-V4 Enclosure material Stainless steel Sealant FPM 1 pc(s)

Item no:2125105

Dispatches on Tue 27 Oct

Conrad Electronic

10 bar

Stainless steel

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 355.00^*

FESTO Angled valve 8060514 VZXA-A-TS6-20-M2-V13T-16-K-75-20-PR-V4 Enclosure material Stainless steel Sealant FPM 1 pc(s)

Item no:2125106

Dispatches on Mon 2 Nov

Conrad Electronic

10 bar

Stainless steel

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 429.00^*

FESTO Angled valve 8060515 VZXA-A-TS6-25-M2-V13T-16-K-75-20-PR-V4 Enclosure material Stainless steel Sealant FPM 1 pc(s)

Item no:2125107

Dispatches on Mon 2 Nov

Conrad Electronic

10 bar

Stainless steel

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 605.00^*

FESTO Angled valve 8060516 VZXA-A-TS6-32-M2-V13T-16-M-90-26-PR-V4 Enclosure material Stainless steel Sealant NBR 1 pc(s)

Item no:2125108

Dispatches on Tue 27 Oct

Conrad Electronic

7 bar

Stainless steel

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 905.00^*

FESTO Angled valve 8060517 VZXA-A-TS6-40-M2-V13T-16-M-90-26-PR-V4 Enclosure material Stainless steel Sealant NBR 1 pc(s)

Item no:2125109

Dispatches on Tue 27 Oct

Conrad Electronic

7 bar

Stainless steel

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,055.00^*

FESTO Angled valve 8060519 VZXA-A-TS6-65-M2-V13T-8-M-90-26-PR-V4 Enclosure material Stainless steel Sealant NBR 1 pc(s)

Item no:2803794

Dispatches on Wed 28 Oct

Conrad Electronic

7 bar

Stainless steel

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,715.00^*

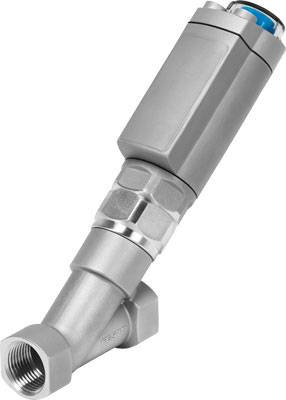

FESTO Angled valve 8060520 VZXA-A-TS7-1/2"-M2-V14T-16-K-46-17-PR-V4 Enclosure material Stainless steel Sealant FPM 1 pc(s)

Item no:2125111

Available soon

Conrad Electronic

10 bar

Stainless steel

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 355.00^*

FESTO Angled valve 8060521 VZXA-A-TS7-3/4"-M2-V14T-16-K-75-20-PR-V4 Enclosure material Stainless steel Sealant FPM 1 pc(s)

Item no:2125112

Available soon

Conrad Electronic

10 bar

Stainless steel

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 429.00^*

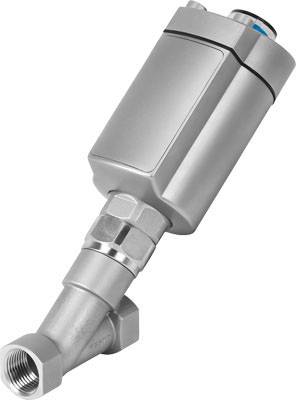

FESTO Angled valve 8060522 VZXA-A-TS7-1"-M2-V14T-16-K-75-20-PR-V4 Enclosure material Stainless steel Sealant FPM 1 pc(s)

Item no:2125113

Available soon

Conrad Electronic

10 bar

Stainless steel

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 605.00^*

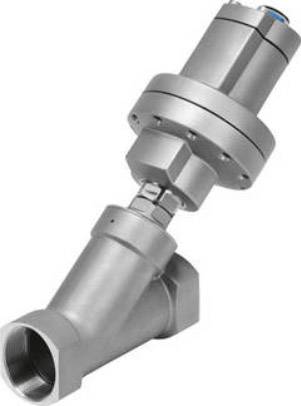

FESTO Angled valve 8060523 VZXA-A-TS7-1 1/4"-M2-V14T-16-M-90-26-PR-V4 Enclosure material Stainless steel Sealant PTFE 1 pc(s)

Item no:2125114

Dispatches on Tue 27 Oct

Conrad Electronic

16 bar

Stainless steel

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 905.00^*

Documents & Downloads

Datasheet

Datasheet 2803814 FESTO Angled valve 8111599 VZXA-A-TS7-3/4"-M6-B1T-16-K-75-20-PR-PM Enclosure material PA Sealant FPM 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2803814 FESTO Angled valve 8111599 VZXA-A-TS7-3/4"-M6-B1T-16-K-75-20-PR-PM Enclosure material PA Sealant FPM 1 pc(s)

Description

Angled seat valve VZXA-A-TS7-3/4"-M6-B1T-16-K-75-20-PR-PM Constructive design=Seat valve with piston drive, actuation type=pneumatic, installation position=arbitrary, mounting method=line installation, cable connection=threaded sleeve 3/4 NPT according to ANSI/ASME B 1.20.1

This text is machine translated.

Hints

The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
