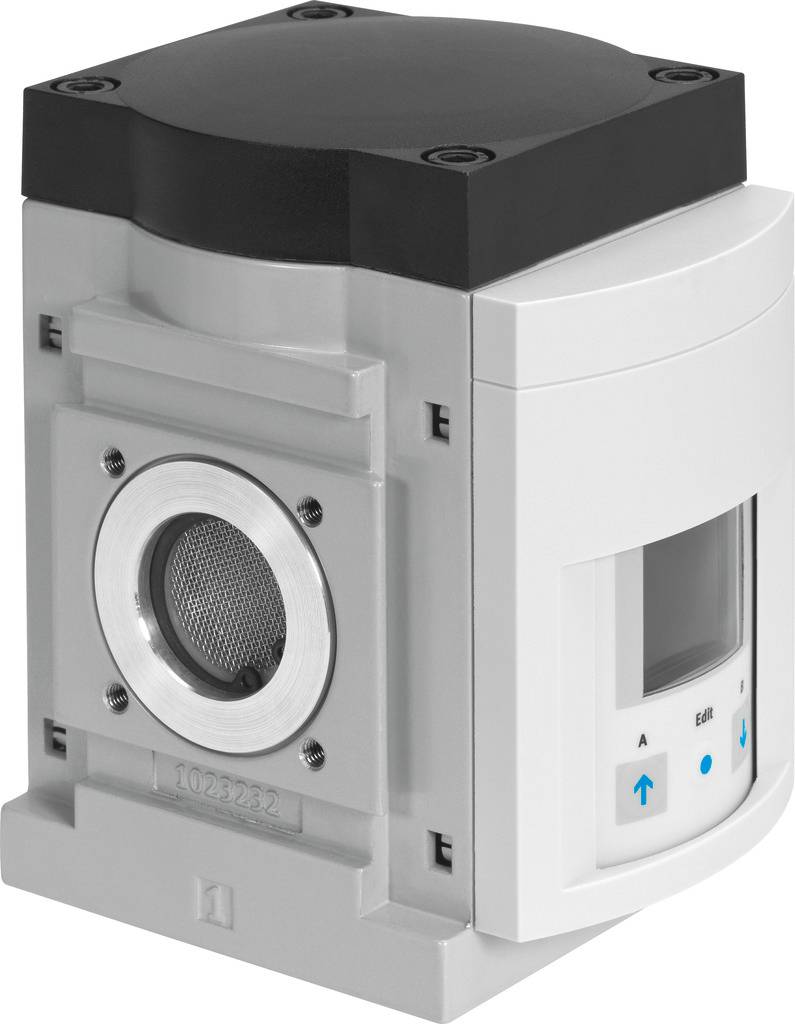

FESTO Flow sensor SFAM-90-10000L-M-2SA-M12 573348 Operating voltage (range): 15 - 30 V DC 1 pc(s)
EAN:
Part number:
Item no:
Product type
Flow sensor
Min. operating voltage
15 V DC
Max. operating voltage
30 V DC
Type
SFAM-90-10000L-M-2SA-M12
Operating voltage
30 V DC
Datasheet (PDF)
Number
Total (€ 1,142.02 / piece)
€ 1,142.02
plus VAT.
14-day return policy included
Highlights & Details
Flow sensor SFAM -90-10000 L-M-2 SA-M12
Technical specifications
- Mounting type: at maintenance unit
- Operating medium: compressed air, nitrogen
- Pneumatic connection: battery module
- Max. output current 100 mA
- Product type
Flow sensor
- Type
SFAM-90-10000L-M-2SA-M12
- Operating voltage
30 V DC
- Min. operating voltage
15 V DC
- Max. operating voltage
30 V DC
- Operating voltage
15 - 30 V DC
- Connector
M12 (5-pin)
- Enclosure material
Aluminium (die-cast)
PA
- Max. operating pressure
16 bar
IP65
- Weight
1500 g
- Min. ambient temperature
0 °C
- Max. ambient temperature
+50 °C
- Content
1 pc(s)
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4];; Nitrogen
Documents & Downloads
Datasheet
Datasheet 1937693 FESTO Flow sensor SFAM-90-10000L-M-2SA-M12 573348 Operating voltage (range): 15 - 30 V DC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1937693 FESTO Flow sensor SFAM-90-10000L-M-2SA-M12 573348 Operating voltage (range): 15 - 30 V DC 1 pc(s)
Description
Flow sensor SFAM -90-10000 L-M-2 SA-M12 for battery mounting. Approval = (* RCM mark, * C UL US recognized (oil)), CE mark (see declaration of conformity) = (* to EU EMC Directive, * according to EU RoHS-RL), Certificate issuing point = UL E 322346, material note = RoHS compliant, measurement size = (* flow, * consumption).
