FESTO Linear drive 170947 DFM-50-50-P-A-KF Stroke length: 50 mm 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 665.00 / piece)
€ 665.00
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details

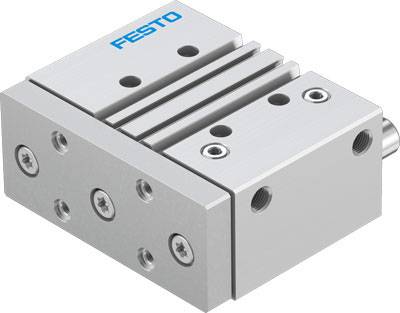

Linear drive DFM-50-50-P-A-KF
Technical specifications
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Product type
Linear drive
- Stroke length
50 mm
- Max. operating pressure
10 bar
- Material (details)
Aluminum wrought alloy
- Manufacturer part #
170947
- Type
Guide cylinder DFM -50-50-P-A-KF with built-in navigation. Focus distance of the payload for yoke plate = 50 mm, Hub = 50 mm, piston diameter = 50 mm, operating mode drive unit = yoke, attenuation=P: elastic damping rings/boards on both sides
- Weight
3801 g
- Size
50
- Sealant
NBR
- Pneumatics connector
G1/4"
- Piston rod material
Steel (stainless)
- Piston rod diameter
50 mm
- Force (max.)
1178 N
- Max. ambient temperature
+60 °C
- Min. ambient temperature
-5 °C
- UKCA
yes
