Name: FESTO Magnetic valve 4527269 VOFC-LT-M32C-MC-FG13-F19A Enclosure material Aluminium Sealant NBR 1 pc(s)
Brand: FESTO
SKU: 1945629
Availability: BackOrder

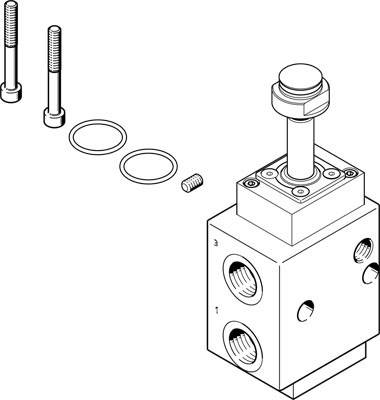

Exploded diagram of a valve with bolt, seals and screw. Shows components and their arrangement for assembly.

Datasheet (PDF)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 559.00 / piece)

€ 559.00

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

Magnetic valve VOFC-LT-M32C-MC-FG13-F19A

Technical specifications

Pilot operated piston valve

Operating medium: Compressed air according to ISO 8573-1:2010 [7:-:-]

Product type: Magnetic valve

Enclosure material: Aluminium

Connection: G 1/2

Max. flow: 2686 l/min

Max. operating pressure: 8 bar

Operation: Electrically

Type: Valve VOFC-LT-M32C-MC FG 13-F 19 A valve function = 3/2 closed, mono-stable, operating method = electrically, Width = 51 mm, normal rated flow = 2686 l/min, Operating pressure = 2 - 8 bar

Manufacturer part #: 4527269

Size: 32

Operating pressure (min.): 2 bar

Sealant: NBR

Function: 3/2 normally closed mono-stable

Weight: 900 g

Media temperature (range): -25 up to +60 °C

Max. media temperature: +60 °C

Media temperature (min.): -25 °C

Medium: Compressed air

Nominal width: 51 mm

: IP65

Max. ambient temperature: +60 °C

Min. ambient temperature: -25 °C

Variants(All information include VAT, plus shipping costs)

Connection

Max. operating pressure

Operating medium

Product type

FESTO Magnetic valve 4514738 VOFC-LT-M32C-M-FG14-F19 Enclosure material Aluminium Sealant NBR 1 pc(s)

Item no:1945602

Available soon

Conrad Electronic

G 1/4

8 bar

Compressed air according to ISO 8573-1:2010 [7:-:-]

Magnetic valve

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 379.00^*

FESTO Magnetic valve 4514739 VOFC-LT-M32C-M-FG14-F19A Enclosure material Aluminium Sealant NBR 1 pc(s)

Item no:1945603

Available soon

Conrad Electronic

G 1/4

8 bar

Compressed air according to ISO 8573-1:2010 [7:-:-]

Magnetic valve

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 379.00^*

FESTO Magnetic valve 4514740 VOFC-LT-M32C-MC-G14-F19 Enclosure material Aluminium Sealant NBR 1 pc(s)

Item no:1945604

Available soon

Conrad Electronic

G 1/4

8 bar

Compressed air according to ISO 8573-1:2010 [7:-:-]

Magnetic valve

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 379.00^*

FESTO Magnetic valve 4514741 VOFC-LT-M32C-MC-G14-F19A Enclosure material Aluminium Sealant NBR 1 pc(s)

Item no:1945605

Available soon

Conrad Electronic

G 1/4

8 bar

Compressed air according to ISO 8573-1:2010 [7:-:-]

Magnetic valve

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 379.00^*

FESTO Magnetic valve 4514742 VOFC-LT-M32C-MC-N14-F19 Enclosure material Aluminium Sealant NBR 1 pc(s)

Item no:1945606

Available soon

Conrad Electronic

NPT1/4-18

8 bar

Compressed air according to ISO 8573-1:2010 [7:-:-]

Magnetic valve

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 379.00^*

FESTO Magnetic valve 4514743 VOFC-LT-M32C-MC-N14-F19A Enclosure material Aluminium Sealant NBR 1 pc(s)

Item no:1945607

Available soon

Conrad Electronic

NPT1/4-18

8 bar

Compressed air according to ISO 8573-1:2010 [7:-:-]

Magnetic valve

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 379.00^*

FESTO Magnetic valve 4514744 VOFC-LT-M32C-MC-FGP14-F19 Enclosure material Aluminium Sealant NBR 1 pc(s)

Item no:1945608

Available soon

Conrad Electronic

8 bar

Compressed air according to ISO 8573-1:2010 [7:-:-]

Magnetic valve

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 469.00^*

FESTO Magnetic valve 4514745 VOFC-LT-M32C-MC-FGP14-F19A Enclosure material Aluminium Sealant NBR 1 pc(s)

Item no:1945609

Available soon

Conrad Electronic

8 bar

Compressed air according to ISO 8573-1:2010 [7:-:-]

Magnetic valve

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 469.00^*

FESTO Magnetic valve 4514746 VOFC-LT-M32C-M-FG12-F19 Enclosure material Aluminium Sealant NBR 1 pc(s)

Item no:1945610

Available soon

Conrad Electronic

G 1/2

8 bar

Compressed air according to ISO 8573-1:2010 [7:-:-]

Magnetic valve

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 559.00^*

FESTO Magnetic valve 4514747 VOFC-LT-M32C-M-FG12-F19A Enclosure material Aluminium Sealant NBR 1 pc(s)

Item no:1945611

Available soon

Conrad Electronic

G 1/2

8 bar

Compressed air according to ISO 8573-1:2010 [7:-:-]

Magnetic valve

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 559.00^*

Documents & Downloads

Datasheet

Datasheet 1945629 FESTO Magnetic valve 4527269 VOFC-LT-M32C-MC-FG13-F19A Enclosure material Aluminium Sealant NBR 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1945629 FESTO Magnetic valve 4527269 VOFC-LT-M32C-MC-FG13-F19A Enclosure material Aluminium Sealant NBR 1 pc(s)

Hints

The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
