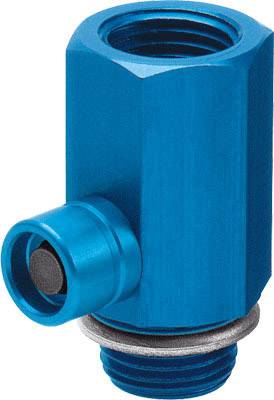

FESTO Manual actuator 184586 HAB-1/4 Enclosure material Aluminium wrought alloy 1 pc(s)
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 29.99 / piece)
€ 29.99
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details
Technical specifications
- Mounting type: can be screwed into
- Operating medium
Compressed Air
- Product type
Manual actuator
- Enclosure material
Aluminium wrought alloy
- Connection
G 1/4
- Max. operating pressure
10 bar
- Type
Corrosion resistance class KBK: 2-moderate corrosion stress
- Manufacturer part #
184586
- Operating pressure (min.)
0 bar
- Media temperature (range)
-20 up to +80 °C
- Max. media temperature
+80 °C
- Media temperature (min.)
-20 °C
- Medium
Air
- Nominal width
7 mm
- QNn value
165 l/min
- Max. ambient temperature
+80 °C
- Min. ambient temperature
-20 °C
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2116566 FESTO Manual actuator 184586 HAB-1/4 Enclosure material Aluminium wrought alloy 1 pc(s)
Description
Hand auxiliary lever I-1/4 for exhaust air. Nominal width = 7 mm, mounting position=any, valve function = bleed element, Operating pressure = 0 - 10 bar, normal rated flow ventilation=165 l/min
This text is machine translated.
This text is machine translated.
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
