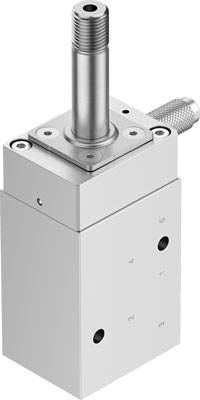

FESTO Pressure valve 8155960 VOFC-L-M52-MY-G14-F19A Enclosure material Aluminium Sealant NBR 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 499.00 / piece)
€ 499.00
incl. VAT
Only available for business customers
14-day return policy includedTechnical specifications
- Product type
Pressure valve
- Enclosure material
Aluminium
- Connection
G 1/4
- Max. operating pressure
8 bar
- Operating temperature
-25 °C (min)
- Min. operating temperature
-25 °C
- Manufacturer part #
8155960
- Operating pressure (min.)
2.5 bar
- Sealant
NBR
- Function
5/2 mono-stable
- Weight
520 g
- Media temperature (range)
-25 up to 60 °C
- Max. media temperature
60 °C
- Media temperature (min.)
-25 °C
- Medium
Compressed air
- Nominal width
6 mm
- Features
Electrically actuated
- Width
40 mm
- QNn value
1030 l/min
IP65
- Max. ambient temperature
60 °C
- Min. ambient temperature
-25 °C
- KV value
1.08 m³/h
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2800163 FESTO Pressure valve 8155960 VOFC-L-M52-MY-G14-F19A Enclosure material Aluminium Sealant NBR 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2800163 FESTO Pressure valve 8155960 VOFC-L-M52-MY-G14-F19A Enclosure material Aluminium Sealant NBR 1 pc(s)
Description
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
