Name: FESTO Proportional directional valve VPWP-10-L-5-Q-10-E-G-EX1 1552544 0 up to 10 bar 1 pc(s)
Brand: FESTO
SKU: 2122565
Availability: BackOrder

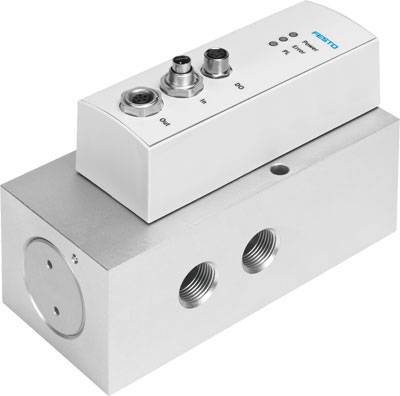

Industrial component: Rectangular silver metal block with two connections and a white housing on top, featuring switches and connectors.

Image similar

Datasheet (PDF)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 1,575.00 / piece)

€ 1,575.00

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

Technical specifications

5/3 proportional directional control valve, valve function: closed
Nominal width: 10 mm
Operating method: electrically
Ambient temperature: 0 °C - +50 °C
Product weight: 1010 g
Class 1 - Low corrosion stress corrosion resistance: KBK
IP65 rating
Normal rated flow: 2000 l/min
Operating voltage range: 18 V-30 V

Operating medium: According to ISO 8573-1:2010 compressed air [6:4:4]

Product type: Proportional directional valve

Min. display range: 0 bar

Display range (max.): 10 bar

Operating temperature: 0 °C (min)

Min. operating temperature: 0 °C

Manufacturer part #: 1552544

Material (details): Housing: aluminum wrought alloy, anodised

Connection: G 3/8"

Max. operating pressure: 10 bar

Operating pressure (min.): 0 bar

Pressure range: 0 up to 10 bar

Operating medium: Compressed air

Pipe Ø: 10 mm

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2122565 FESTO Proportional directional valve VPWP-10-L-5-Q-10-E-G-EX1 1552544 0 up to 10 bar 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2122565 FESTO Proportional directional valve VPWP-10-L-5-Q-10-E-G-EX1 1552544 0 up to 10 bar 1 pc(s)

Description

Proportional valve VPWP-10-L-5-Q-10-E-G-EX1 Nominal Width = 10 mm, operating method = electrically, sealing principle = hard, mounting position = (* any, * Preferably horizontal (display elements upwards)
