Name: FESTO Proportional flow regulator 8041715 VPCF-6-L-8-G38-10-A4-E-EX2 G 3/8, G 3/8 Enclosure material Aluminium wrought a
Brand: FESTO
SKU: 2124823
Availability: BackOrder

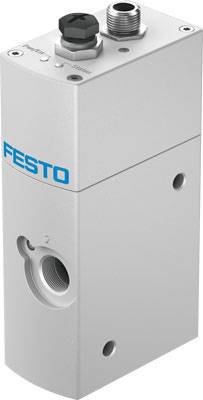

A pneumatic valve by Festo, used in automation systems, displays connections and control elements.

Image similar

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 1,925.00 / piece)

€ 1,925.00

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

Technical specifications

Operating medium: According to ISO 8573-1:2010 compressed air [6:4:4]

Product type: Proportional flow regulator

Enclosure material: Aluminium wrought alloy

Connection: G 3/8
G 3/8

Max. operating pressure: 10 bar

Type: Piston Valves;; with integrated pressure sensors

Manufacturer part #: 8041715

Operating pressure (min.): 1 bar

Sealant: FPM
HNBR

Weight: 856 g

Media temperature (range): +15 up to +35 °C

Max. media temperature: +35 °C

Media temperature (min.): +15 °C

Max. ambient temperature: +50 °C

Min. ambient temperature: 0 °C

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2124823 FESTO Proportional flow regulator 8041715 VPCF-6-L-8-G38-10-A4-E-EX2 G 3/8, G 3/8 Enclosure material Aluminium wrought a

Description

Proportional flow control valve VPCF-6-L-8-G 38-10-A4-E-EX2 valve function = 3-way proportional flow control valve, constructive design = (* piston valves, * with integrated pressure sensors), Tax Direction = direct, operating method = electric, Ruckstellart = magnetic spring

This text is machine translated.

Hints

The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
