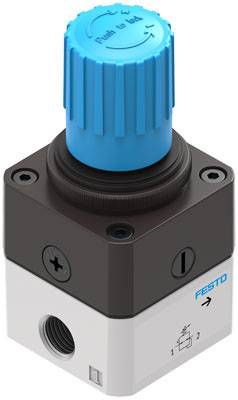

FESTO High-accuracy pressure regulator 159502 LRP-1/4-10 G 1/4 Enclosure material Aluminium Sealant NBR 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 251.26 / piece)
€ 251.26
plus VAT.
Only 3 Piece(s) available
Highlights & Details
High-accuracy pressure regulator LRP-1/4-10
Technical specifications
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4],, inert gases
- Type
159502
- Product type
High-accuracy pressure regulator
- Enclosure material
Aluminium
- Connection
G 1/4
- Max. flow
2300 l/min
- Max. operating pressure
12 bar
- Operation
Pneumatic
- Manufacturer part #
159502
- Operating pressure (min.)
1 bar
- Sealant
NBR
- Weight
310 g
- Media temperature (range)
-10 up to 60 °C
- Max. media temperature
60 °C
- Media temperature (min.)
-10 °C
- Control pressure (max.)
10 bar
- Control pressure (min.)
0.1 bar
- Max. ambient temperature
60 °C
- Min. ambient temperature
-10 °C
Documents & Downloads
Datasheet
Datasheet 1944423 FESTO High-accuracy pressure regulator 159502 LRP-1/4-10 G 1/4 Enclosure material Aluminium Sealant NBR 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1944423 FESTO High-accuracy pressure regulator 159502 LRP-1/4-10 G 1/4 Enclosure material Aluminium Sealant NBR 1 pc(s)
Description
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
