Name: FESTO Proportional pressure regulator 576681 VPPM-12L-L-1-N12-0L10H-V1P-S1C1 NPT1/2-14 , NPT1/2-15 Enclosure material Al
Brand: FESTO
SKU: 2121897
Availability: BackOrder

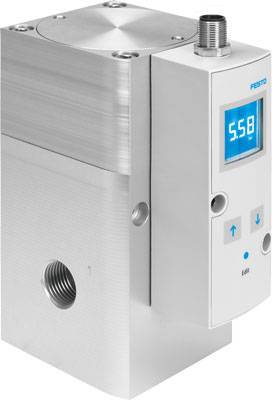

A silver, rectangular device with a digital display showing '5.58'. A connection point at the top. Used for pressure regulation.

Image similar

Datasheet (PDF)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 1,365.00 / piece)

€ 1,365.00

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

Technical specifications

Operating medium: According to ISO 8573-1:2010 compressed air [7:4:4],, inert gases

Product type: Proportional pressure regulator

Enclosure material: Aluminium wrought alloy

Connection: NPT1/2-14
NPT1/2-15

Max. flow: 7000 l/min

Max. operating pressure: 10 bar

Type: Pilot operated diaphragm control valve

Manufacturer part #: 576681

Operating pressure (min.): 0.1 bar

Weight: 2050 g

Media temperature (range): +10 up to +50 °C

Max. media temperature: +50 °C

Media temperature (min.): +10 °C

Max. ambient temperature: +50 °C

Min. ambient temperature: 0 °C

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Connection

FESTO Proportional pressure regulator 542217 VPPM-6TA-L-1-F-0L2H-S1 Connector plate Nominal width (details) 4.5 mm Enclosure material Aluminium wrought alloy 1 pc(s)

Item no:1944461

Available soon

Conrad Electronic

Connector plate

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 775.00^*

FESTO Proportional pressure regulator 542218 VPPM-6TA-L-1-F-0L6H-S1 Connector plate, Connector plate Enclosure material Aluminium wrought alloy 1 pc(s)

Item no:2119097

Dispatches on Wed 28 Oct

Conrad Electronic

Connector plate

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 775.00^*

FESTO Proportional pressure regulator 542219 VPPM-6TA-L-1-F-0L10H-S1 Connector plate, Connector plate Enclosure material Aluminium wrought alloy 1 pc(s)

Item no:2119098

Dispatches on Wed 28 Oct

Conrad Electronic

Connector plate

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 775.00^*

FESTO Proportional pressure regulator 542220 VPPM-6TA-L-1-F-0L2H Connector plate, Connector plate Enclosure material Aluminium wrought alloy 1 pc(s)

Item no:2119099

Dispatches on Fri 23 Oct

Conrad Electronic

Connector plate

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 735.00^*

FESTO Proportional pressure regulator 542221 VPPM-6TA-L-1-F-0L6H Connector plate, Connector plate Enclosure material Aluminium wrought alloy 1 pc(s)

Item no:2119100

Dispatches on Wed 28 Oct

Conrad Electronic

Connector plate

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 735.00^*

FESTO Proportional pressure regulator 542222 VPPM-6TA-L-1-F-0L10H Connector plate, Connector plate Enclosure material Aluminium wrought alloy 1 pc(s)

Item no:2119101

Dispatches on Wed 28 Oct

Conrad Electronic

Connector plate

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 735.00^*

FESTO Proportional pressure regulator 542227 VPPM-6L-L-1-G18-0L2H-V1N-S1 G 1/8, G 1/8 Enclosure material Aluminium wrought alloy 1 pc(s)

Item no:2119103

Dispatches on Wed 28 Oct

Conrad Electronic

G 1/8

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 709.00^*

FESTO Proportional pressure regulator 542228 VPPM-6L-L-1-G18-0L6H-V1N-S1 G 1/8, G 1/9 Enclosure material Aluminium wrought alloy 1 pc(s)

Item no:2119104

Dispatches on Wed 28 Oct

Conrad Electronic

G 1/8

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 709.00^*

FESTO Proportional pressure regulator 542229 VPPM-6L-L-1-G18-0L10H-V1N-S1 G 1/8, G 1/8 Enclosure material Aluminium wrought alloy 1 pc(s)

Item no:2119105

Dispatches on Wed 28 Oct

Conrad Electronic

G 1/8

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 709.00^*

FESTO Proportional pressure regulator 542230 VPPM-6L-L-1-G18-0L2H-A4N-S1 G 1/8, G 1/9 Enclosure material Aluminium wrought alloy 1 pc(s)

Item no:2119106

Dispatches on Fri 23 Oct

Conrad Electronic

G 1/8

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 709.00^*

Documents & Downloads

Datasheet

Datasheet 2121897 FESTO Proportional pressure regulator 576681 VPPM-12L-L-1-N12-0L10H-V1P-S1C1 NPT1/2-14 , NPT1/2-15 Enclosure material Al

User & Safety Instructions

User & Safety Instructions 2121897 FESTO Proportional pressure regulator 576681 VPPM-12L-L-1-N12-0L10H-V1P-S1C1 NPT1/2-14 , NPT1/2-15 Enclosure material Al

Description

Proportional pressure regulation valve VPPM-12L-L-1-N12-0 L10H-V1P-S1C1 nominal diameter ventilation=12mm, nominal width bleed = 12 mm, operating method = electrically, sealing principle = soft, mounting position=any

This text is machine translated.

Hints

The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
