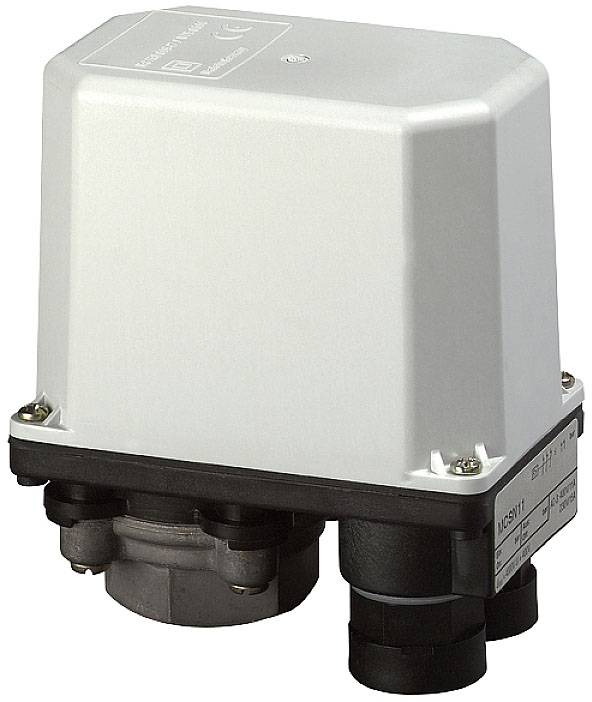

Eaton Pressure monitor 29203 MCSN11 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 109.24 / piece)
€ 109.24
plus VAT.
Only 8 Piece(s) available
Technical specifications
- Number of auxiliary contacts as changeover contact: 0
- Number of normally closed contacts as main contacts: 3
- Electrical connection type: Screw connection
- Switch-off pressure 0 - 11 bar
- Rated operating current IE at AC-3, 400 V: 11.5 A.
- Burst pressure 90 bar
- Switch-on pressure 0 - 9.4 bar
- Suitable as 2 point controller: Yes
- Suitable as guardian: Yes
- Thread size 1/2 in
- Max. Test pressure 32 bar
- Medium temperature: 25 - 80 °C.
- Protection system: IP65
- Product type
Pressure monitor
- Operating voltage
250 V
400 V
- Max. operating pressure
15 bar
- Operating temperature
25 up to 80 °C
- Min. operating temperature
25 °C
- Max. operating temperature
80 °C
- Manufacturer part #
29203
- Weight
477.00
- Media temperature (range)
25 up to 80 °C
- Max. media temperature
80 °C
- Media temperature (min.)
25 °C
- Height
111 mm
- Length
96 mm
IP65
- Factory colour
Multicolour
60
111 mm
96 mm
Internal thread cylindrical BSPP-G (ISO 228-1)
FALSE
0 mm
5.5 kW
0
3
0
0
11.5 A
0 A
FALSE
15 kA
0-0 hPa
0-0 hPa
0
Screw connection
FALSE
IP65
0 Pa
0-11 bar
0-400 V
0-400 V
0-250 V
90 bar
0-9.4 bar
FALSE
0 Pa
TRUE
FALSE
TRUE
32 bar
25-80 °C
FALSE
0-0 A
0 bar
Other
15000 hPa
1/2 inch
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2307249 Eaton Pressure monitor 29203 MCSN11 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2307249 Eaton Pressure monitor 29203 MCSN11 1 pc(s)
Description
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
