Name: FESTO Proportional flow regulator 8086472 VEMD-L-6-14-20-D21-M5-1-R1-V4 M5 Nominal width (details) 1.4 mm Enclosure mate
Brand: FESTO
SKU: 2801855
Availability: BackOrder

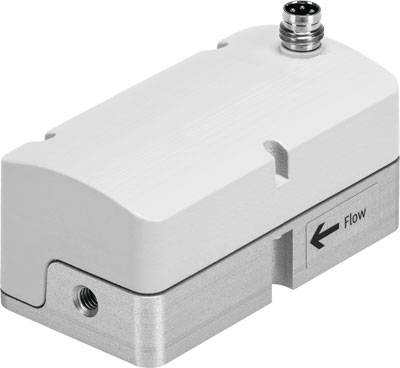

A white, rectangular measuring device with a connector and an arrow indicating the flow direction. The device is used for flow measurement.

Image similar

Datasheet (PDF)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 805.00 / piece)

€ 805.00

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Technical specifications

Product type: Proportional flow regulator

Operating voltage: 24 V

Enclosure material: Polyamide

Connection: M5

Max. operating pressure: 2.5 bar

Operating temperature: 0 °C (min)

Min. operating temperature: 0 °C

Current consumption: 1 W

Manufacturer part #: 8086472

Operating pressure (min.): 0 bar

Sealant: EPDM
NBR

Function: 2/2-way

Weight: 92 g

Media temperature (range): +5 up to +40 °C

Max. media temperature: +40 °C

Media temperature (min.): +5 °C

Medium: Inert gases
Nitrogen
Oxygen
Compressed air

Nominal width: 1.4 mm

Height: 31 mm

Length: 70 mm

: IP40

Setpoint input: 0.2 - 10 V

Max. ambient temperature: +50 °C

Min. ambient temperature: 0 °C

Standard: EN 61000-6-2 (EMV)

Features: oxygen-resistant

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2801855 FESTO Proportional flow regulator 8086472 VEMD-L-6-14-20-D21-M5-1-R1-V4 M5 Nominal width (details) 1.4 mm Enclosure mate

User & Safety Instructions

User & Safety Instructions 2801855 FESTO Proportional flow regulator 8086472 VEMD-L-6-14-20-D21-M5-1-R1-V4 M5 Nominal width (details) 1.4 mm Enclosure mate

Hints

The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
