FESTO Proportional pressure regulator 187762 MPPES-3-1/8-PU-PO-420 G 1/8 Nominal width (details) 2 mm Enclosure material
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 1,245.00 / piece)
€ 1,245.00
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details

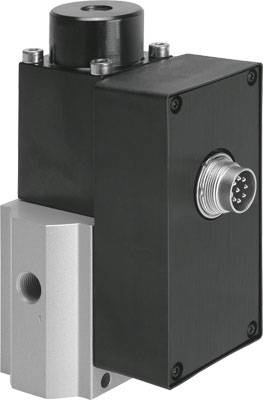

Proportional pressure regulator MPPES-3-1/8-PU-PO-420
Technical specifications
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4],, inert gases
- Product type
Proportional pressure regulator
- Operating voltage
30 V
- Enclosure material
Aluminium wrought alloy
- Connection
G 1/8
- Operation
Electrically
- Type
Electrical connection: M16 x 0.75, 8-pin, round design, plug-in
- Manufacturer part #
187762
- Function
3-way
- Weight
915 g
- Media temperature (range)
0 up to 60 °C
- Max. media temperature
60 °C
- Media temperature (min.)
0 °C
- Nominal width
2 mm
IP65
- Control pressure (max.)
10 bar
- Control pressure (min.)
0 bar
- Max. ambient temperature
50 °C
- Min. ambient temperature
0 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1944460 FESTO Proportional pressure regulator 187762 MPPES-3-1/8-PU-PO-420 G 1/8 Nominal width (details) 2 mm Enclosure material
User & Safety Instructions
User & Safety Instructions 1944460 FESTO Proportional pressure regulator 187762 MPPES-3-1/8-PU-PO-420 G 1/8 Nominal width (details) 2 mm Enclosure material
Description
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
