Name: FESTO Proportional pressure regulator 8104667 VPPI-5L-3-G18-0L6H-A4-S1D G 1/8 Nominal width (details) 5 mm Enclosure mat
Brand: FESTO
SKU: 2801828
Availability: BackOrder

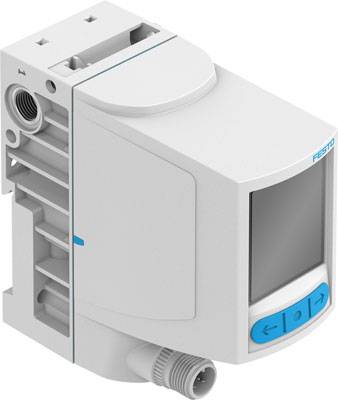

An electrical device by Festo with a display and two blue buttons. It has cable connections and appears to be a control module.

Image similar

Datasheet (PDF)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 989.00 / piece)

€ 989.00

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Technical specifications

Type: 8104667

Product type: Proportional pressure regulator

Operating voltage: 24 V

Enclosure material: PA

Connection: G 1/8

Max. operating pressure: 8 bar

Operating temperature: 0 °C (min)

Min. operating temperature: 0 °C

Current consumption: 14.5 W

Manufacturer part #: 8104667

Operating pressure (min.): 6 bar

Sealant: HNBR
PTFE

Function: 3-way

Weight: 370 g

Media temperature (range): 0 up to +50 °C

Max. media temperature: +50 °C

Media temperature (min.): 0 °C

Medium: Compressed air

Nominal width: 5 mm

Features: Electrically actuated

Height: 94.3 mm

Length: 95.3 mm

QNn value: 900 l/min

: IP65

Setpoint input: 4 - 20 mA

Max. ambient temperature: +50 °C

Min. ambient temperature: 0 °C

Operating principle: OFF/NC

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Connection

Max. operating pressure

Enclosure material

Type

FESTO Proportional pressure regulator 8104667 VPPI-5L-3-G18-0L6H-A4-S1D G 1/8 Nominal width (details) 5 mm Enclosure material PA Sealant HNBR, PTFE 1 pc(s)

Item no:2801828

Dispatches on Wed 28 Oct

Conrad Electronic

This article

G 1/8

8 bar

8104667

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 989.00^*

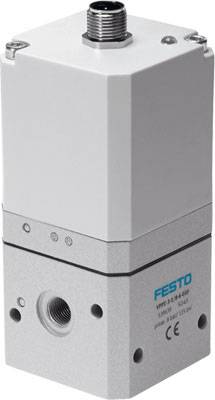

FESTO Proportional pressure regulator 539639 VPPE-3-1/8-6-010 G 1/8, G 1/9 Enclosure material Aluminium wrought alloy 1 pc(s)

Item no:2118919

Dispatches on Tue 27 Oct

Conrad Electronic

G 1/8

6 bar

Aluminium wrought alloy

539639

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 595.00^*

FESTO Proportional pressure regulator 557771 VPPE-3-1-1/8-2-010-E1 G 1/8, G 1/8 Enclosure material Aluminium wrought alloy 1 pc(s)

Item no:2125699

Dispatches on Tue 27 Oct

Conrad Electronic

G 1/8

2 bar

Aluminium wrought alloy

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 595.00^*

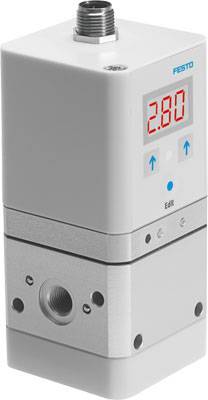

FESTO Proportional pressure regulator 557772 VPPE-3-1-1/8-6-010-E1 G 1/8, G 1/8 Enclosure material Aluminium wrought alloy 1 pc(s)

Item no:2125700

Dispatches on Tue 27 Oct

Conrad Electronic

G 1/8

6 bar

Aluminium wrought alloy

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 595.00^*

FESTO Proportional pressure regulator 557773 VPPE-3-1-1/8-10-010-E1 G 1/8, G 1/8 Enclosure material Aluminium wrought alloy 1 pc(s)

Item no:2125701

Dispatches on Tue 27 Oct

Conrad Electronic

G 1/8

10 bar

Aluminium wrought alloy

557773

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 595.00^*

FESTO Proportional pressure regulator 557774 VPPE-3-1-1/8-2-420-E1 G 1/8, G 1/8 Enclosure material Aluminium wrought alloy 1 pc(s)

Item no:2125702

Dispatches on Tue 27 Oct

Conrad Electronic

G 1/8

2 bar

Aluminium wrought alloy

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 595.00^*

FESTO Proportional pressure regulator 557775 VPPE-3-1-1/8-6-420-E1 G 1/8, G 1/8 Enclosure material Aluminium wrought alloy 1 pc(s)

Item no:2125703

Dispatches on Tue 27 Oct

Conrad Electronic

G 1/8

6 bar

Aluminium wrought alloy

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 595.00^*

FESTO Proportional pressure regulator 557776 VPPE-3-1-1/8-10-420-E1 G 1/8, G 1/8 Enclosure material Aluminium wrought alloy 1 pc(s)

Item no:2125704

Dispatches on Tue 27 Oct

Conrad Electronic

G 1/8

10 bar

Aluminium wrought alloy

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 595.00^*

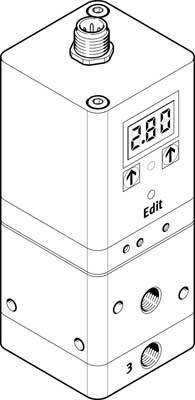

FESTO Proportional pressure regulator 557777 VPPE-3-1-1/8-2-010-E1T G 1/8, G 1/8 Enclosure material Aluminium wrought alloy 1 pc(s)

Item no:2125705

Dispatches on Mon 2 Nov

Conrad Electronic

G 1/8

2 bar

Aluminium wrought alloy

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 595.00^*

FESTO Proportional pressure regulator 557778 VPPE-3-1-1/8-10-010-E1T G 1/8, G 1/8 Enclosure material Aluminium wrought alloy 1 pc(s)

Item no:2125706

Dispatches on Tue 27 Oct

Conrad Electronic

G 1/8

10 bar

Aluminium wrought alloy

557778

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 595.00^*

Documents & Downloads

Datasheet

Datasheet 2801828 FESTO Proportional pressure regulator 8104667 VPPI-5L-3-G18-0L6H-A4-S1D G 1/8 Nominal width (details) 5 mm Enclosure mat

User & Safety Instructions

User & Safety Instructions 2801828 FESTO Proportional pressure regulator 8104667 VPPI-5L-3-G18-0L6H-A4-S1D G 1/8 Nominal width (details) 5 mm Enclosure mat

Description

Proportional pressure regulator VPPI-5L-3-G18-0L6H-A4-S1D rated ventilation=5 mm, rated ventilation=5 mm, actuation type=electrical, sealing principle=soft, total leakage=5 l/h.

This text is machine translated.

Hints

The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
