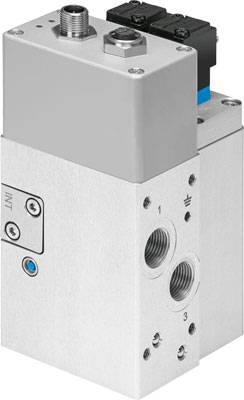

A silver-grey pneumatic valve with multiple connections and screws, used for controlling air flows in technical applications.

A silver-grey pneumatic valve with multiple connections and screws, used for controlling air flows in technical applications.

Image similar

FESTO

Datasheet (PDF)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 3,185.00 / piece)

€ 3,185.00

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Technical specifications

Type: VPCB-6-L-8-G38-10-F-D3-T22

Product type: Valve body

Operating voltage: 24 V

Enclosure material: Aluminium alloy

Connection: G 3/8

Max. operating pressure: 8 bar

Current consumption: 33.5 W

Manufacturer part #: 5318141

Operating pressure (min.): 4 bar

Sealant: FPM
HNBR
NBR

Function: 3-way

Weight: 1550 g

Medium: Compressed air

Nominal width: 6 mm

Features: Electrically actuated

QNn value: 725 l/min

: IP65

Max. ambient temperature: 50 °C

Min. ambient temperature: 0 °C

Operating principle: Direct action

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2800017 FESTO Valve body 5318141 VPCB-6-L-8-G38-10-F-D3-T22 24 V Enclosure material Aluminium alloy Sealant FPM, HNBR, NBR 1 pc(

User & Safety Instructions

User & Safety Instructions 2800017 FESTO Valve body 5318141 VPCB-6-L-8-G38-10-F-D3-T22 24 V Enclosure material Aluminium alloy Sealant FPM, HNBR, NBR 1 pc(

Description

Valve unit VPCB-6-L-8-G38-10-F-D3-T22 Valve function=3-way proportional pressure control valve, design=(* piston spool, * with integrated pressure sensors), control type=direct, actuation type=electrical, reset type=magnetic spring

This text is machine translated.

Hints

The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min

Description

Valve unit VPCB-6-L-8-G38-10-F-D3-T22 Valve function=3-way proportional pressure control valve, design=(* piston spool, * with integrated pressure sensors), control type=direct, actuation type=electrical, reset type=magnetic spring

This text is machine translated.

Hints

The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
