Name: FESTO Wheel lever valve R/O-3-PK-3 10748 0 up to 8 bar 1 pc(s)
Brand: FESTO
SKU: 2115284
Availability: BackOrder

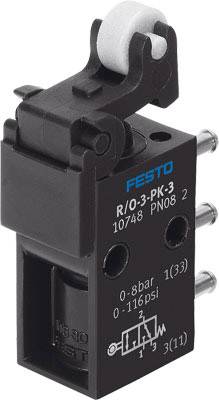

A Festo R/0-3-PK-3 valve with an operating pressure of 0-8 bar (0-116 psi). The connections and a circuit diagram are visible.

Image similar

Datasheet (PDF)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 51.99 / piece)

€ 51.99

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

Technical specifications

Valve function: 3/2 open/closed mono-stable
Nominal width: 2.5 mm
Operating method: mechanical
Ambient temperature: -10 °C to +60 °C
Product weight: 18g
Material Seals: NBR
Normal nominal flow rate: 80 l/min

Operating medium: According to ISO 8573-1:2010 [compressed air -:-:-]

Product type: Wheel lever valve

Min. display range: 0 bar

Display range (max.): 8 bar

Operating temperature: -10 °C (min)

Min. operating temperature: -10 °C

Manufacturer part #: 10748

Material (details): Housing: POM

Connection: PK-3

Max. operating pressure: 8 bar

Operating pressure (min.): 0 bar

Pressure range: 0 up to 8 bar

Operating medium: Compressed air

Pipe Ø: 2.5 mm

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2115284 FESTO Wheel lever valve R/O-3-PK-3 10748 0 up to 8 bar 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2115284 FESTO Wheel lever valve R/O-3-PK-3 10748 0 up to 8 bar 1 pc(s)

Information

Information 2115284 FESTO Wheel lever valve R/O-3-PK-3 10748 0 up to 8 bar 1 pc(s)

Description

Roller lever valve R/O-3-PK-3 with connecting plug nipple connection for hose NW 3. Depending on the choice of connections the function not pressed continuity or no continuity. Valve function = 3/2 open/closed, mono-stable, operating method = mechanically, normal rated flow = 80 l/min, Operating pressure = 0 - 8 bar, constructive design = piston seat
