Name: Finder 55.33.9.024.5090 Plug-in relay 24 V DC 10 A 3 change-overs 1 pc(s)
Brand: Finder
SKU: 3323708
Availability: InStock

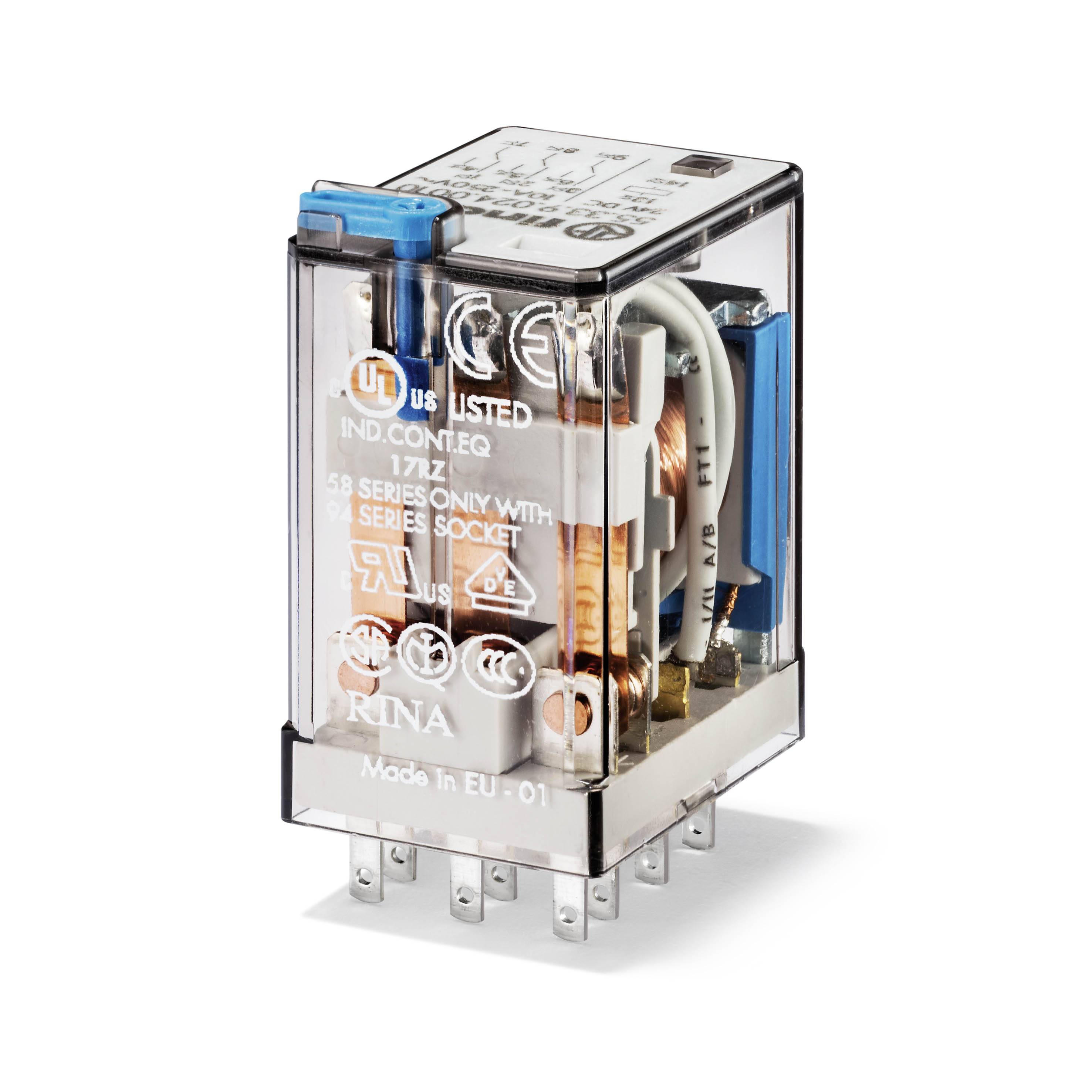

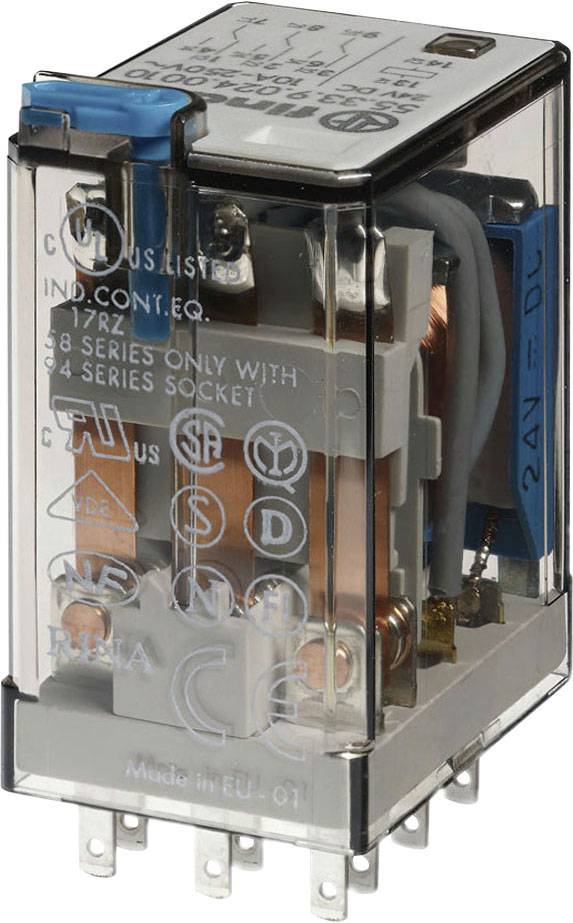

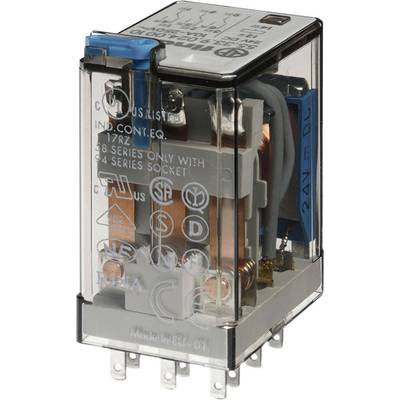

A transparent relay with copper coils and blue wires, marked with '24V DC'. Printed markings of technical and normative information.

Image similar

Product type

Plug-in relay

Coil nominal voltage

24 V DC

Contact type

3 change-overs

Switching voltage (max.)

250 V AC

Switching current (max.)

10 A

EAN:

Part number:

Item no:

Fast track dispatch on Wed 11 Nov

25 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 17.99 / piece)

€ 17.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

With removable terminals: No.
Drive, polarity: Reversed
Switching characteristics of drive: Mono-stable
With positively driven contacts: No.
Type of switch contact: Single contact
Complete unit with socket: No.

Product type: Plug-in relay

Type: 55.33.9.024.5090

Coil nominal voltage: 24 V DC

Coil voltage rating: 1 W

Contact type: 3 change-overs

Contact material: AgNi hard gold plated

Switching voltage (max.): 250 V AC

Switching current (max.): 10 A

Connection: Jack connector

Features: + LED

: IP20

Width: 20.7 mm

Height: 37.2 mm

Depth: 27.7 mm

Dim: (W x H x D) 20.7 x 37.2 x 27.7 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 10 A

: 20.7

: 37.2 mm

: 27.7 mm

: 20 A

: FALSE

: Polarized

: Mono stable

: FALSE

: Single contact

: FALSE

: Plug-in connection

: 24-24 V

: Gold

: DC

: TRUE

: 19.2-26.4 V

: DC

: 0

: 0

: 3

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3323708 Finder 55.33.9.024.5090 Plug-in relay 24 V DC 10 A 3 change-overs 1 pc(s)

Description

Miniature plug-in relay 3 CO contact for 10 A / 250 V AC, contact material AgNi hard gold-plated, coil data 24 V DC, 1 W, 600 Ohm, manual operation and LED and snubber diode (+on A1/13, standard polarity) Relay protection type: RT I.

This text is machine translated.
