Name: Fischer 567808 SX Plus Green Spring toggle 50 mm 6 mm 90 pc(s)
Brand: Fischer
SKU: 2858406
Availability: SoldOut

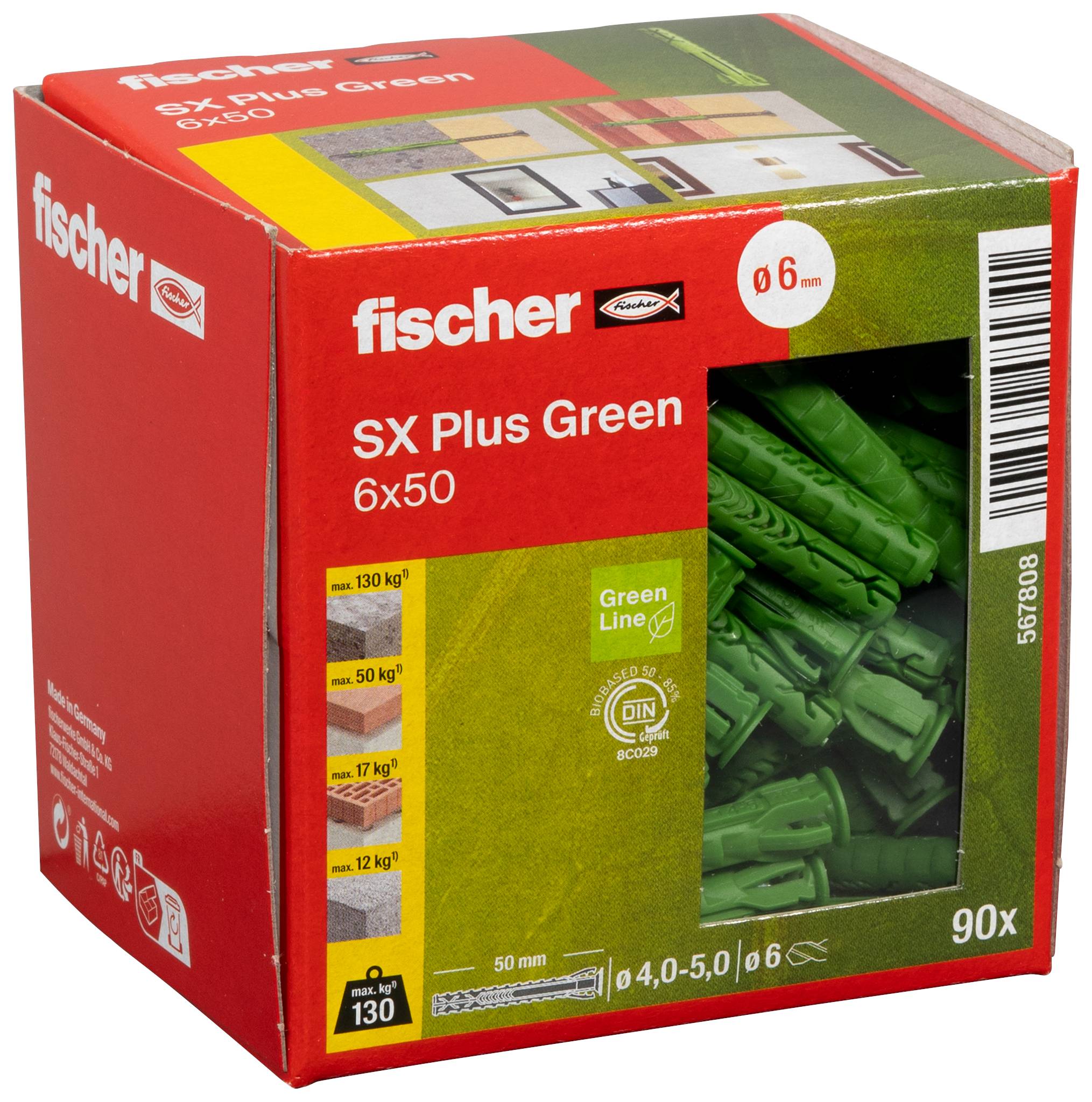

Box of Fischer SX Plus Green 6x50 wall plugs, showing green plastic anchors through a clear window, 90-pack.

Green Fischer plastic wall anchor with expanding ribs and flange, shown horizontally on a white background.

Red and green Fischer SX Plus Green 6x50 wall anchor box with installation diagrams and product specifications.

Box of Fischer SX Plus Green 6x50 wall anchors, with visible green plugs through a clear window and labels for 6 mm, 90 pieces, and load ratings.

Wall-mounted black-framed mirror reflecting a minimalist room with a potted plant; cabinet with decorative vases at right.

Close-up of a silver shower curtain rod with rings and a partially open white shower curtain against a light wall.

Cross-section showing a green wall plug in concrete on the left and a screw driven into wood on the right, illustrating fastener use in two materials.

Cutaway diagram showing a screw anchored in a green wall plug through brick on the left and into wood on the right.<br>

1/8

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 10.99 / piece)

€ 10.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Fischer SX plus Green 6 x 50 expanding plug

Manufactured with at least 50% renewable raw materials4-way spread for high withstand valuesFixing wings for screw fixing and flexible mountingLarger anchoring depth for better transmission of force in perforated building materials and porous concreteA noticeable tightening torque prevents the screw from being overturned.

Technical specifications

Min Drill depth 60 mm

(Ø): 6 mm

Product type: Spring toggle

Material: Plastic

Length: 50 mm

Dim: (Ø x L) 6 mm x 50 mm

Suitable for: Foamed concrete
Concrete
Flintlime hollow bricks
Natural stone
Foamed concrete wall
Solid brick
Cored bricks

Content: 90 pc(s)

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2858406 Fischer 567808 SX Plus Green Spring toggle 50 mm 6 mm 90 pc(s)

Description

The Fischer SX Plus Green plug is made from at least 50% renewable raw materials. Due to its 4-fold spread, it is the specialist for solid building materials such as concrete, sand-lime brick and masonry. The special fixing wings provide a pre-fixing of the screw, so that these need not be additionally held in case of overhead applications. This screw fixing enables the user a flexible and comfortable setting procedure. The flexible dowel edge also prevents a low slipping of the dowel in the drill hole for a secure mounting. This version with greater anchoring depth is suitable for Ideal attachments in perforated building materials, porous concrete and for plaster covering.

This text is machine translated.

Features

The SX Plus Green is produced with at least 50% renewable resources and is thus especially environment-friendly
The 4-fold spread ensures optimum force flow into the building material and guarantees high holding values in solid and perforated building materials
The special fixing wings provide a pre-fixing of the screw, which means that both hands of the user are free during the setting process
The pressure-free dowel neck prevents the spread forces from developing on the surface of the building material when the screw is screwed in. This prevents tiles and plaster from bursting
Due to the greater anchorage depth, this SX Plus version is particularly suitable for mounting in perforated building materials, porous concrete and for plaster bridging
The noticeable tightening torque allows the user to automatically detect when the screw is properly seated, thus preventing the screw from being overtightened.

Scope of delivery

100 x expanding dowels SX Plus Green

Description

Features

The SX Plus Green is produced with at least 50% renewable resources and is thus especially environment-friendly
The 4-fold spread ensures optimum force flow into the building material and guarantees high holding values in solid and perforated building materials
The special fixing wings provide a pre-fixing of the screw, which means that both hands of the user are free during the setting process
The pressure-free dowel neck prevents the spread forces from developing on the surface of the building material when the screw is screwed in. This prevents tiles and plaster from bursting
Due to the greater anchorage depth, this SX Plus version is particularly suitable for mounting in perforated building materials, porous concrete and for plaster bridging
The noticeable tightening torque allows the user to automatically detect when the screw is properly seated, thus preventing the screw from being overtightened.
