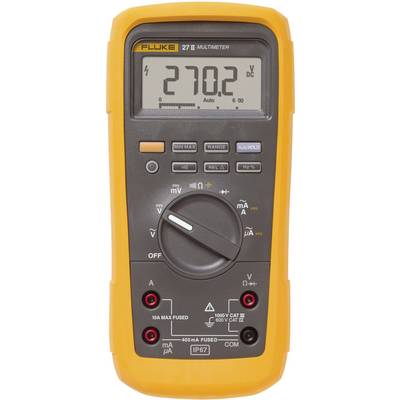

Fluke 27II/EUR Handheld multimeter Digital Waterproof (IP67) CAT III 1000 V, CAT IV 600 V Display (counts): 6000
EAN:
Part number:
Item no:
Number
Total (€ 847.90 / piece)
€ 847.90
plus VAT.
Highlights & Details
27II/EUR
- IP67 dust and waterproof housing
- Reversible holster for protecting the display during transport
- Able to float
Technical specifications
- Voltage reading range DC (min.)
0.1 mV
- Product type
Handheld multimeter
- Voltage DC reading range (max.)
1000 V
- V AC reading range (min.)
0.1 mV
- V AC reading range (max.)
1000 V
- Amperage reading range DC (min.)
0.1 µA
- A DC reading range (max.)
10 A
- A AC reading range (min.)
0.1 µA
- Amperage reading range AC (max.)
10 A
- Reading range - resistance
0.1 Ω - 50 MΩ
- Reading range - capacity
1 nF - 10 µF
- Frequency reading range
0.5 Hz - 200 k Hz
- DC resistance
10 MΩ
- AC resistance
10 MΩ
- Basic accuracy
0.05 %
- Measurement type (details)
Average
- Frequency range
40 Hz - 30 kHz Hz
- Interfaces
none
- Power supply (details)
3 x AA
- Height
198 mm
- Width
100 mm
- Weight
698 g
Manufacturer's standards (no certificate)
- Reading category
CAT III 1000 V
CAT IV 600 V
- Voltage metering
AC/DC
- Current reading
AC/DC
- Type
27II/EUR
- Display
Digital
- Display (counts)
6000
- Dim
(W x H) 100 mm x 198 mm
- Features
Waterproof (IP67)
- Basic accuracy
±0.1 %
- Displays
6000 counts
- Reading category
CAT IV 600V, CAT III 1000 V
FALSE
IP67
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 124363 Fluke 27II/EUR Handheld multimeter Digital Waterproof (IP67) CAT III 1000 V, CAT IV 600 V Display (counts): 6000
Description
This digital multimeter sets new standards when it comes to use under adverse conditions and has the necessary accuracy for troubleshooting electrical systems. The measuring device is IP 67 (water and dust proof) specified and registered for MSHA (mining applications) approval; the extended operating temperature runs over a period of 20 minutes between -15 °C and +55 °C; The device is designed for 95% humidity and was developed and tested to survive falls from 3 metres high without any problems.
Features
- Min./Max./REL/Hold functions
- Bar graph display
- Lifetime manufacturer's guarantee.
