Name: Fluke FLUKE-1555 FC KIT Insulation tester 250 V, 500 V, 1000 V, 2500 V, 5000 V, 10000 V 2 TΩ
Brand: Fluke
SKU: 3828193
Availability: BackOrder

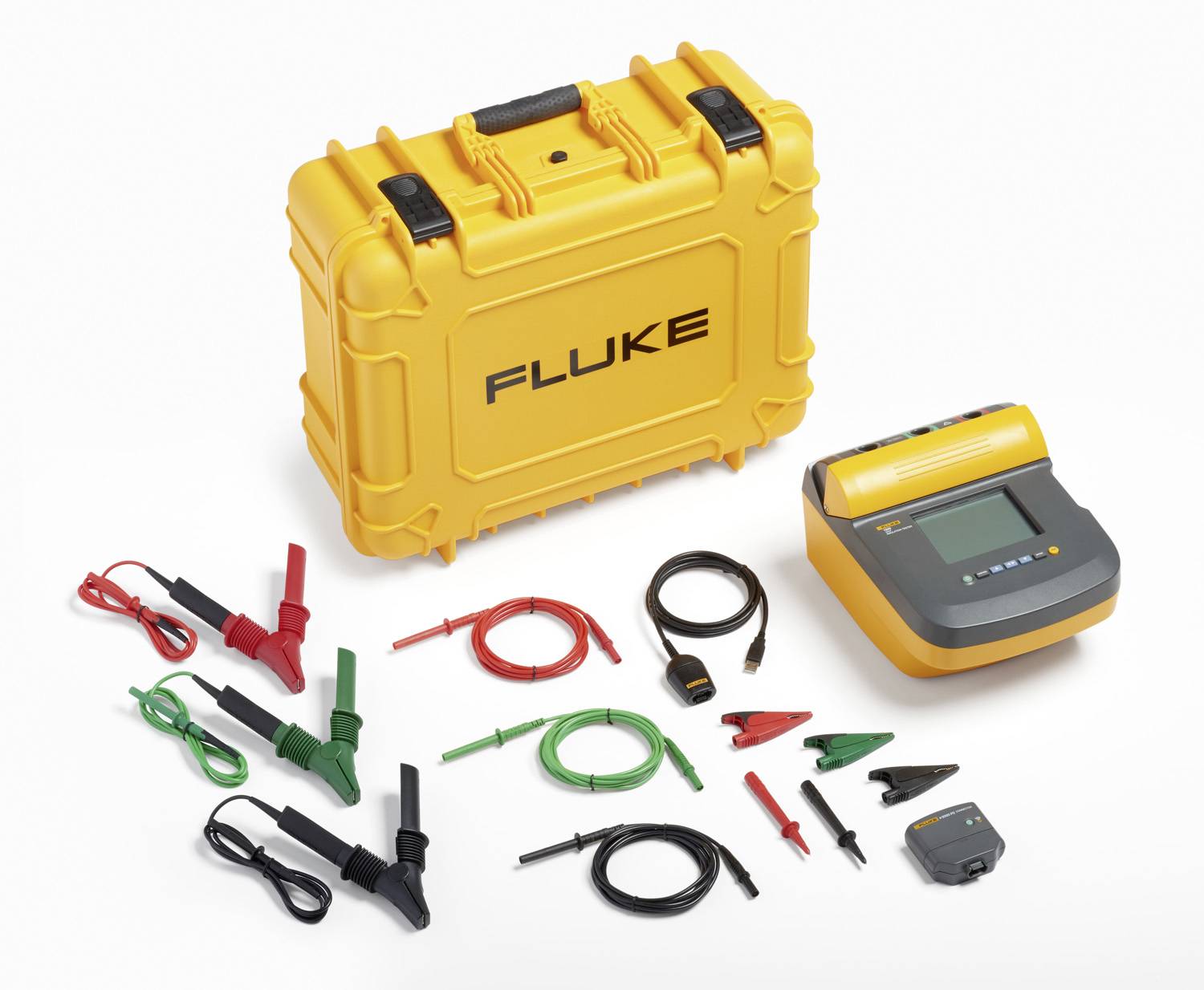

Fluke test equipment kit with yellow carrying case, handheld meter, and color-coded probe leads with clips laid out on a white background.

Datasheet (PDF)

Dispatches on Wed 28 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 20,375.00 / piece)

€ 20,375.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Insulation tester kit (10kV) with IR-interface Fluke Connect IR3000FC

Test voltages up to 10 kV for insulation testing of high-voltage systems
Wireless data transmission and documentation via Fluke Connect® with the IR3000FC interface
Automatic calculation of polarity index (PI) and dielectric absorption (DAR)
Memory function for up to 99 measurements and interface for evaluation of PC
Safety specifications in accordance with CAT IV 600 V / CAT III 1000 V.

Technical specifications

Measurement function: Insulation resistance, continuity, voltage (AC / DC), capacity, leakage current, Ramp function
Weight: Approx. 3.6 kg (measuring device alone) / approx. 10.5 kg (total set with case)
Timer settings 0 to 99 minutes
Operating temperature: -20°C to +50 °C
Safety rating EN 61010-1.

Product type: Insulation tester

Test voltage: 250 V
500 V
1000 V
2500 V
5000 V
10000 V

Reading type: Insulation resistance
Voltage

: Manufacturer's standards (no certificate)

Reading range - resistance: 200 kΩ to 2 TΩ

Interfaces: Bluetooth®
USB

: IP65

Power supply (details): 12 V rechargeable lead-acid battery

Dim: (L x W x H) 330 x 242 x 170 mm

Weight: 3.6 kg

Display type: Digital (LCD)

Max. frequency: 60 Hz

Min. frequency: 0 Hz

Frequency range: 0 Hz - 60 Hz

Insulation resistance (max.): 2 TΩ

Calibration service: Measurements according to IEC 61557-1 and IEC 61557-2

Voltage reading range (max.): 600 V AC
600 V DC

Voltage reading range (min.): 85 V AC
85 V DC

Reading category: CAT IV 600 V
CAT III 1000 V

Width: 242 mm

Height: 170 mm

Length: 330 mm

Documents & Downloads

Datasheet

Datasheet 3828193 Fluke FLUKE-1555 FC KIT Insulation tester 250 V, 500 V, 1000 V, 2500 V, 5000 V, 10000 V 2 TΩ

User & Safety Instructions

User & Safety Instructions 3828193 Fluke FLUKE-1555 FC KIT Insulation tester 250 V, 500 V, 1000 V, 2500 V, 5000 V, 10000 V 2 TΩ

Description

The insulation measuring device Fluke 1550C is suitable for the digital insulation test up to 5 kV. Thus it is the ideal equipment for the testing of high-voltage equipment such as switchgear, motors, generators and cables. Insulation measuring devices from Fluke cover the entire range of test voltages according to IEEE 43-2000. With data storage and PC interface, the 1550C is the perfect tool for preventive or predictive maintenance programs to detect potential device failures before they occur.
