Fluke FLUKE-A283FC/EUR Clamp meter Digital Wireless display CAT III 1500 V, CAT IV 1000 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 348.74 / piece)
€ 348.74
plus VAT.
Only 1 Piece(s) available
Technical specifications
- Protection class: IP52
- Operating temperature: -10 °C to + +60 °C.
- Product type
Clamp meter
- A DC reading range (max.)
60 A
- Amperage reading range AC (max.)
60 A
- Basic accuracy
1.5 %
- Measurement type (details)
True RMS
- Height
226 mm
- Width
91 mm
- Length
42 mm
- Weight
375 g
Manufacturer's standards (no certificate)
- Reading category
CAT III 1500 V
CAT IV 1000 V
- Current reading
AC/DC
- Type
FLUKE-A283FC/EUR
- Display
Digital
- Dim
(L x W x H) 42 x 91 x 226 mm
- Temperature reading range (max.)
60 °C
- Temperature reading range (min.)
-10 °C
- Features
Wireless display
- Opening range of current clamps
34 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3340299 Fluke FLUKE-A283FC/EUR Clamp meter Digital Wireless display CAT III 1500 V, CAT IV 1000 V
User & Safety Instructions
User & Safety Instructions 3340299 Fluke FLUKE-A283FC/EUR Clamp meter Digital Wireless display CAT III 1500 V, CAT IV 1000 V
Description

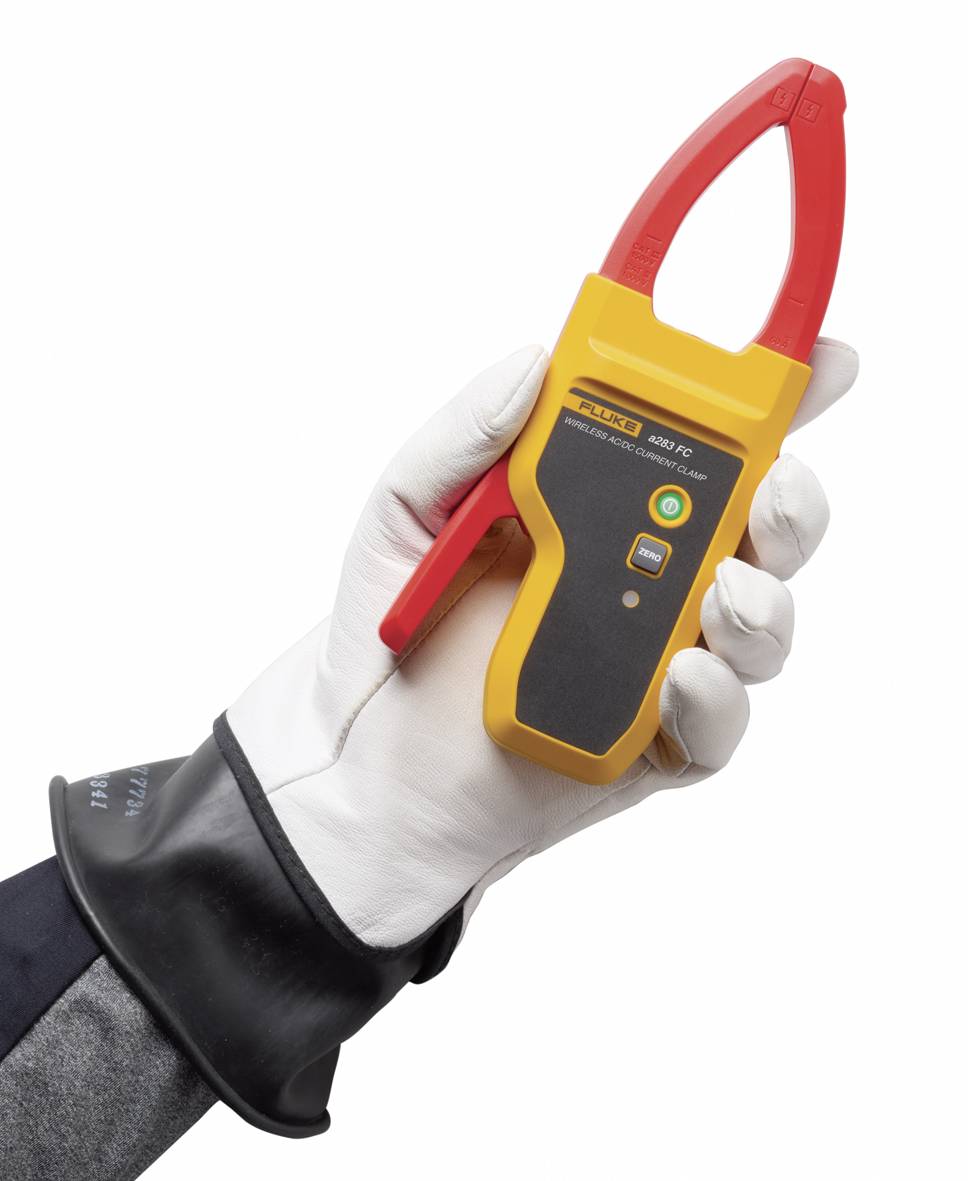

The A283 FC wireless real effective current clamp is designed for smooth use with the 283 FC digital multimeter. It simplifies the troubleshooting process without compromising security or reliability. The A283 FC can measure DC and AC current up to 60 A and ensures accurate and reliable measurements for numerous applications such as measurements on PV systems, electrical systems and industrial plants.
Current measurements are made without touching live conductors, WAS significantly increases safety. They clamp the conductor with the clamp meter and the readings are transmitted wirelessly to the multimeter. Just like the 283 FC digital multimeter, the clamp-on ammeter is tested in accordance with the measurement categories CAT III 1500 V, CAT IV 1000 V.
The wireless connectivity allows the comfortable and secure transmission of measured values. You can connect the clamp-on ammeter at the measurement point and capture the measurement values from a safe distance, completely without any twisted test leads. The slim pliers allow easy access to distribution boxes and narrow spaces, making your work easier and more efficient.
This text is machine translated.
Current measurements are made without touching live conductors, WAS significantly increases safety. They clamp the conductor with the clamp meter and the readings are transmitted wirelessly to the multimeter. Just like the 283 FC digital multimeter, the clamp-on ammeter is tested in accordance with the measurement categories CAT III 1500 V, CAT IV 1000 V.
The wireless connectivity allows the comfortable and secure transmission of measured values. You can connect the clamp-on ammeter at the measurement point and capture the measurement values from a safe distance, completely without any twisted test leads. The slim pliers allow easy access to distribution boxes and narrow spaces, making your work easier and more efficient.
This text is machine translated.
Features
- Wireless clamp-on ammeter CAT III 1500 V/CAT IV 1000 V for use with the digital multimeter 283 FC
- DC and AC measurements up to 60 A.
- Current measurement without separating the conductor for high security
- Wireless connectivity for convenient transfer to the 283 FC digital multimeter
- Slim clamp design for easy access to distribution boxes and narrow spaces
Scope of delivery
- 1x Wireless true-rms clamp-on ammeter
