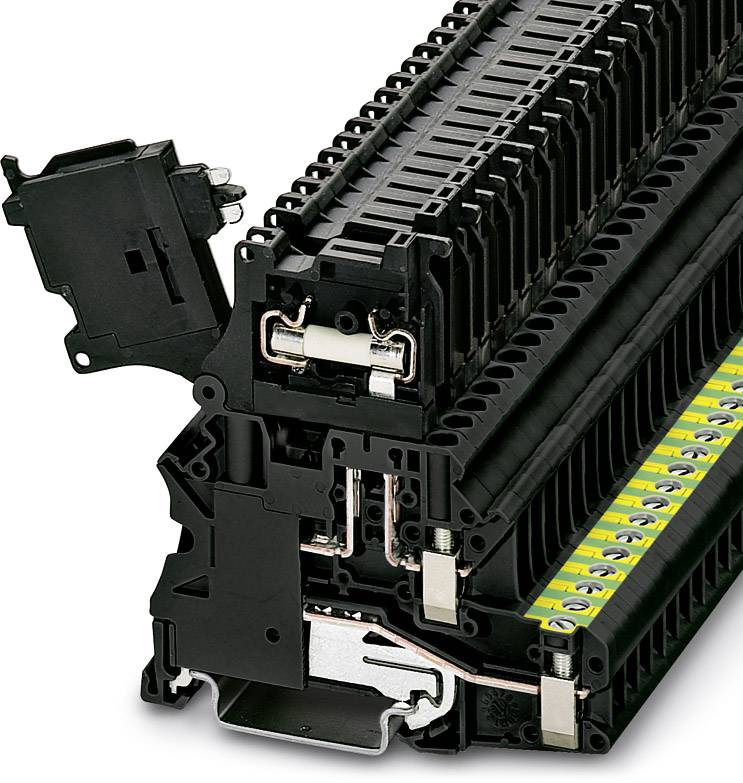

A stack of black terminal blocks with yellow-green labelling strips on a metal base, with a housing cover open.

A stack of black terminal blocks with yellow-green labelling strips on a metal base, with a housing cover open.

Image similar

Packaging type

Piece

Product type

Fuse serial terminal

Connection

Screws

Cross section (flexible) (max.)

6 mm²

Cross section (inflexible) (max.)

6 mm²

Datasheet (PDF)

Phoenix Contact

Dispatches on Fri 6 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 50 pc(s))

Set(s)

Total (€ 16.30 / piece)

€ 815.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Fuse modular terminal block UT 4-PE/HESI LA 250 (5X20)

UT 4-PE/HESI LA 250 (5X20)

Technical specifications

Packaging type: Piece

Product type: Fuse serial terminal

Features: with screw connection

Connection: Screws

Cross section (flexible) (min.): 0.5 mm²

Cross section (flexible) (max.): 6 mm²

Cross section (inflexible) (min.): 0.14 mm²

Cross section (inflexible) (max.): 6 mm²

AWG (min.): 26

AWG max.: 10

Clamp width: 6.2 mm

No. of rows: 1

Number of pins: 2

Factory colour: Black

Nominal current: 6.3 A

Nominal current - rounded value: 6.3 A

Nominal voltage: 250 V

Stripping length (max.): 9 mm

Manufacturer part #: 3070079

Content: 50 pc(s)

Industrial packaging: Yes

Type: UT 4-PE/HESI LA 250 (5X20)

Dim: (L x W x H) 70.8 x 6.2 x 73 mm

Width: 6.2 mm

Height: 73 mm

Length: 70.8 mm

Contamination level: 3

Flammability rating: V0

Insulation material: PA

Insulation: PA

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 566447 Fuse modular terminal block UT 4-PE/HESI LA 250 (5X20) 3070079 Phoenix Contact

User & Safety Instructions

User & Safety Instructions 566447 Fuse modular terminal block UT 4-PE/HESI LA 250 (5X20) 3070079 Phoenix Contact

Description

Lever-type fuse terminal block, black, for 5 x 20 mm G fuse inserts, with LED for 250 V AC

Description

Lever-type fuse terminal block, black, for 5 x 20 mm G fuse inserts, with LED for 250 V AC

Frequently Bought Together

(^*All information is plus legal VAT)

This article

Fuse modular terminal block UT 4-PE/HESI LA 250 (5X20) 3070079 Phoenix Contact

Fuse modular terminal block UT 4-PE/HESI LA 250 (5X20) 3070079 Phoenix Contact

Conrad Electronic

€ 815.00^*

VOLTCRAFT VC-371 Clamp meter Digital CAT III 600 V Display (counts): 4000

VOLTCRAFT VC-371 Clamp meter Digital CAT III 600 V Display (counts): 4000

Conrad Electronic

€ 81.99^*

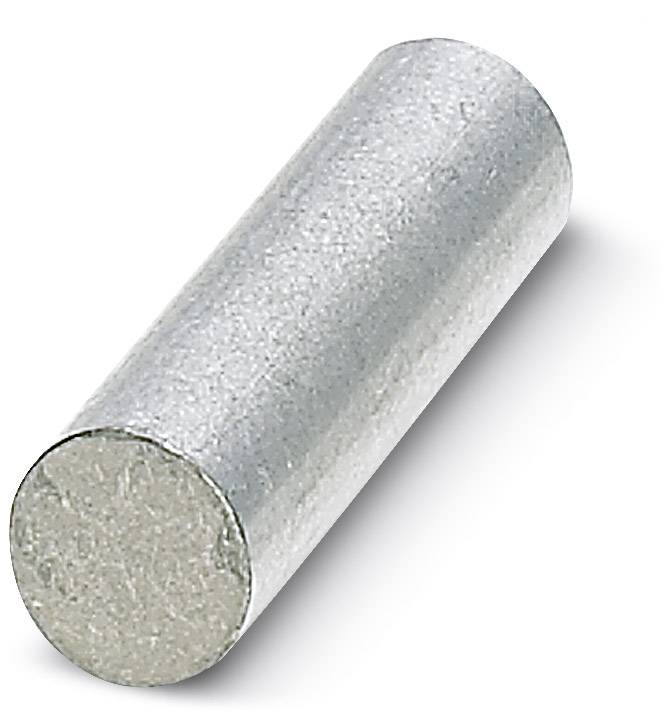

Feed-through connector DMET 5X20 3032075 Phoenix Contact
