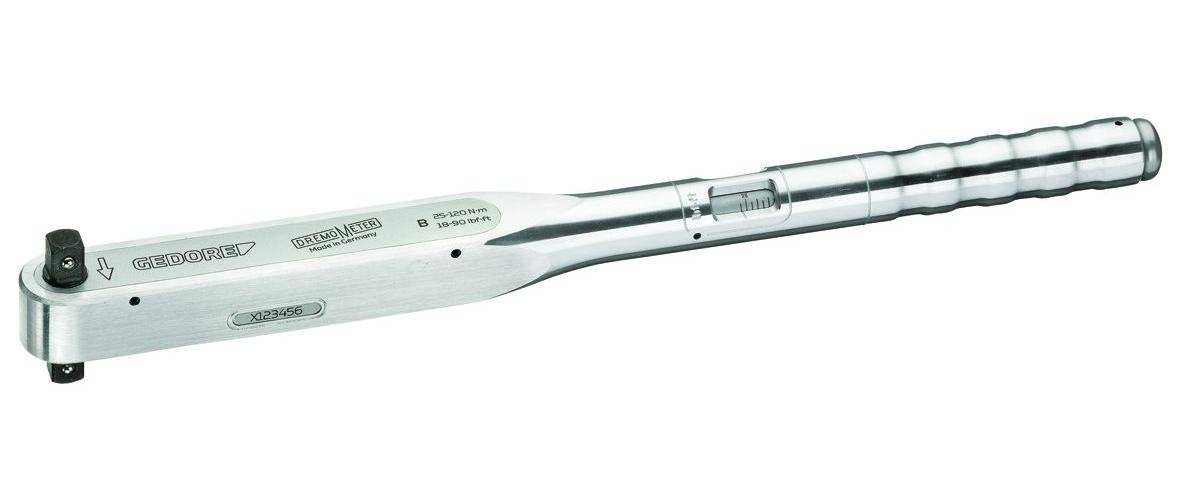

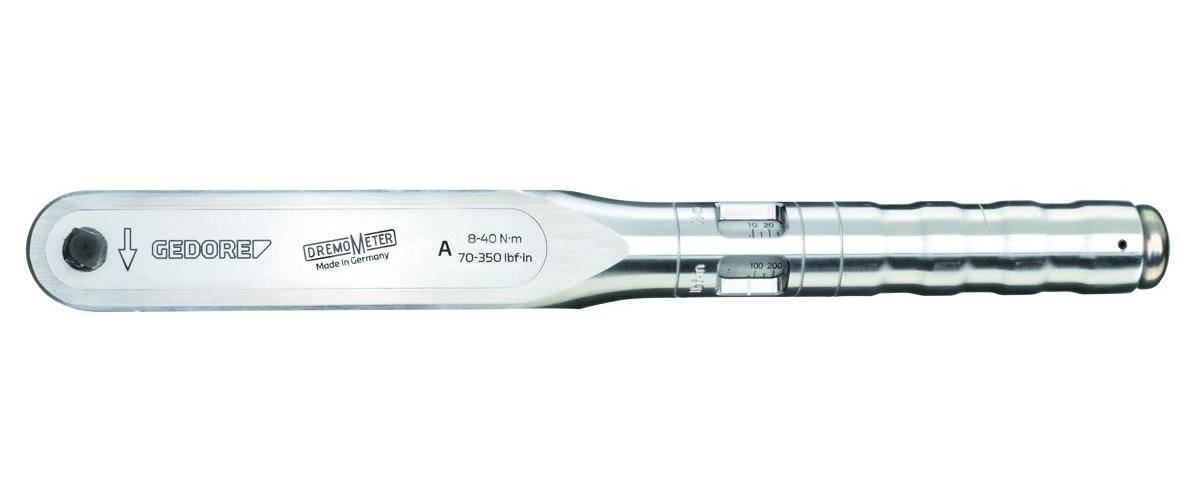

Gedore 8560-02 7682270 Torque wrench 8 - 40 Nm
EAN:
Part number:
Item no:
Total (€ 509.00 / piece)
€ 509.00
incl. VAT
14-day return policy included
Technical specifications
- 8560-02 - GEDORE - Torque wrench DREMOMETER A in the box
- Application:
- Controlled screw suit in the range of 8 - 40 N
- m / 70 - 350 lbf
- in
- use in almost all industrial production areas
- Design:
- Classified according to DIN EN ISO 6789:2003 Type II Class A, with a traceable factory certificate. Calibrated for a permissible deviation of +/- 3 % and better. The specification of the standard (+/- 4 %) is exceeded for your safety

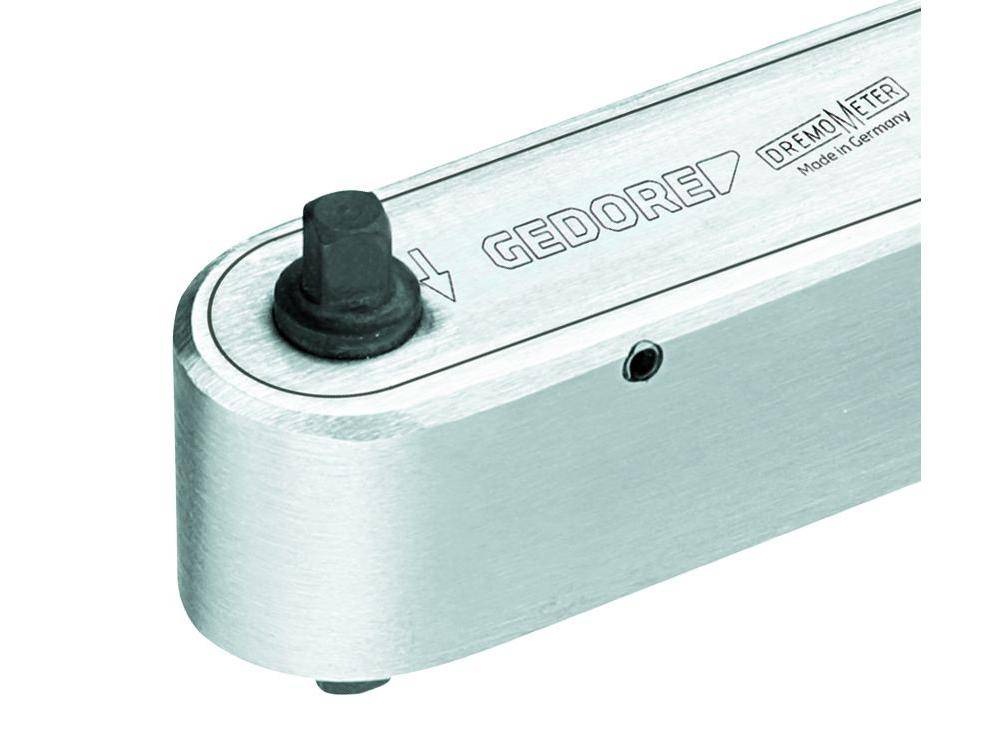

- 3/8" square drive with ball lock DIN 3120 - A 10, ISO 1174
- automatic short-travel release with sensitive and audible signal
- double scale with a division of 5 N
- m and 50 lbf
- in
- technical advantage/function:
- Light, but robust (since housing made of one piece of aluminum) and insensitive, very workshop-friendly
- no value shifts and influence of the accuracy by working both-handed or operating outside the grip (as with conventional torque wrenches).
- Both the drive square as a pivot point are in an axis thus highly reliable for use, Can be extended to reduce the work load of the user
- extremely low wear by reducing the force of the lever mechanism
- forged lever chain from the company's own quality forge
- highest precision even with strong continuous use
- long life and long service life
- simple operation - fast and safe torque tightening
- pleasant setting through shapely, Captive adjustment button at the end of the grip
- single and double square for controlled right or left suit
- Product type
Torque wrench
- Torque (min.)
8 Nm
- Torque (max.)
40 Nm
- Graduation
5 Nm
- Length
338 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1908521 Gedore 8560-02 7682270 Torque wrench 8 - 40 Nm
Information
Information 1908521 Gedore 8560-02 7682270 Torque wrench 8 - 40 Nm
Description
Features
- Use:
- Controlled screw tightening in the range 8-40 N
- m / 70-350 lbf
- in
- For use in almost all industrial manufacturing areas Features:
- Classified to DIN EN ISO 6789:2017 Type II Class A, with a factory certificate. Working accuracy: +/- 3 % tolerance of scale set torque. The specification of the standard (+/- 4 %) is exceeded.
- 3/8" square drive with ball locking device DIN 3120 - A 10, ISO 1174
- Automatic short-path actuation with tactile impulse and audible signal
- Dual scale with a scale graduation of 5 N
- m and 50 lbf
- in
- Technical advantage/Function:
- Lightweight and robust (as housing is made of an aluminium alloy), very workshop-friendly
- No inaccuracies whether used with both hands or held away from the handle (as for standard torque wrenches). Both the square drive and fulcrum are on an axis which ensures a high degree of user safety; can be extended to reduce the user's working load.
- Extremely low wear attributable to reduced forces in a unique lever mechanism
- Forged lever chain from our own quality forge
- Maximum precision even when subjected to extreme continuous use
- Long life cycles and tool lives
- Easy operation - fast and safe torque tightening
- Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle
- Single- and double-square drive for controlled bi-directional tightening
