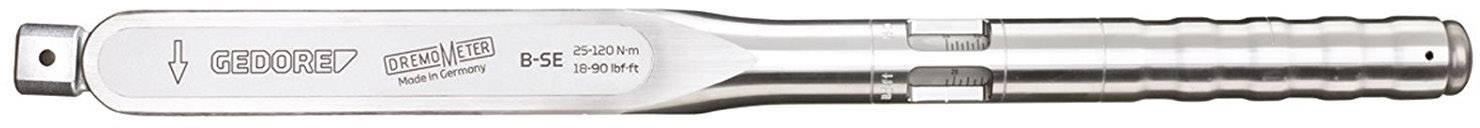

Name: Gedore 8481-01 7714140 Torque wrench 9 x 12 mm socket square 25 - 120 Nm
Brand: Gedore
SKU: 1908510
Availability: BackOrder

EAN:

Part number:

Item no:

Dispatches on Thu 19 Nov

2 Piece(s)

Sales and shipping:

Number

Piece(s)

Total (€ 555.00 / piece)

€ 555.00

incl. VAT

Only 2 Piece(s) available

14-day return policy included

Technical specifications

8481-01 - GEDORE - Torque wrench DREMOMETER B-SE 9x12 25-120 Nm
classified according to DIN EN ISO 6789:2003 Type II Class A, with a traceable factory certificate. Calibrated for a permissible deviation of +/- 3 % and better. The specification of the standard (+/- 4%) is exceeded
for your safety easily, however robust (since housing made from one piece of aluminum) and insensitive, very workshop-friendly
tool holder offers extensive accessory program
depending on the tool application can be both forward (e.g. Open-end wrenches) or to the side (e.g. Change-over ratchet and socket wrench insert)
, operation only at the handle center - do not use an extension tube, otherwise values may be shifted
. Operation only with plug-in tools - otherwise, value shifts may occur. Note the stitch dimension on the certificate. Only GEDORE Original accessories use
extremely low wear due to the reduction of the leverage mechanism
forged lever chain from the Group's own quality forge
highest precision even in heavy use long
life and long service life
simple operation - fast and safe torque tightening
pleasant setting through shapely, captive adjustment button at the end of the handle
with certificate according to DIN EN ISO 6789, Traceable to the National Standard via company-owned DAkkS laboratory

Documents & Downloads

User & Safety Instructions 1908510 Gedore 8481-01 7714140 Torque wrench 9 x 12 mm socket square 25 - 120 Nm

Information 1908510 Gedore 8481-01 7714140 Torque wrench 9 x 12 mm socket square 25 - 120 Nm

Classified to DIN EN ISO 6789:2017 Type II Class A, with a factory certificate. Working accuracy: +/- 3% tolerance of scale set torque. The specification of the standard (+/- 4%) is exceeded.
Lightweight yet robust (as the housing is made of an aluminium alloy) and resilient, very workshop-friendly
Drive offers extensive range of accessories
Depending on the application, access is possible from the front (e.g. rectangular open-end fitting) or side (e.g. reversible ratchet and socket)
Force to be applied in the middle of the handgrip only - do not use an extension tube as otherwise, inaccuracies can arise
Operation only with end fittings otherwise inaccuracies can arise. Keep the depth gauges on the certificate in mind. Only use original GEDORE accessories.
Extremely low wear attributable to reduced forces in the lever mechanism
Forged lever chain from our own quality forge
Maximum precision even when subjected to extreme continuous use
Long life cycles and tool lives
Easy operation - fast and safe torque tightening
Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle
With certificate acc. to DIN EN ISO 6789, traceable via in-house DAkkS laboratory to national standards

Classified to DIN EN ISO 6789:2017 Type II Class A, with a factory certificate. Working accuracy: +/- 3% tolerance of scale set torque. The specification of the standard (+/- 4%) is exceeded.
Lightweight yet robust (as the housing is made of an aluminium alloy) and resilient, very workshop-friendly
Drive offers extensive range of accessories
Depending on the application, access is possible from the front (e.g. rectangular open-end fitting) or side (e.g. reversible ratchet and socket)
Force to be applied in the middle of the handgrip only - do not use an extension tube as otherwise, inaccuracies can arise
Operation only with end fittings otherwise inaccuracies can arise. Keep the depth gauges on the certificate in mind. Only use original GEDORE accessories.
Extremely low wear attributable to reduced forces in the lever mechanism
Forged lever chain from our own quality forge
Maximum precision even when subjected to extreme continuous use
Long life cycles and tool lives
Easy operation - fast and safe torque tightening
Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle
With certificate acc. to DIN EN ISO 6789, traceable via in-house DAkkS laboratory to national standards
