Gossen Metrawatt METRALINE BASE KIT Handheld multimeter Digital incl. voltmeter, incl. bag CAT IV 300 V Display (counts)
EAN:
Part number:
Item no:
Number
Total (€ 719.00 / piece)
€ 719.00
incl. VAT
Only 2 Piece(s) available
Highlights & Details
- All-in-one measuring device set for the introduction in the electrical measurement technology - Ideal for training, electrical trade, workshop, building technology and basic service tasks.

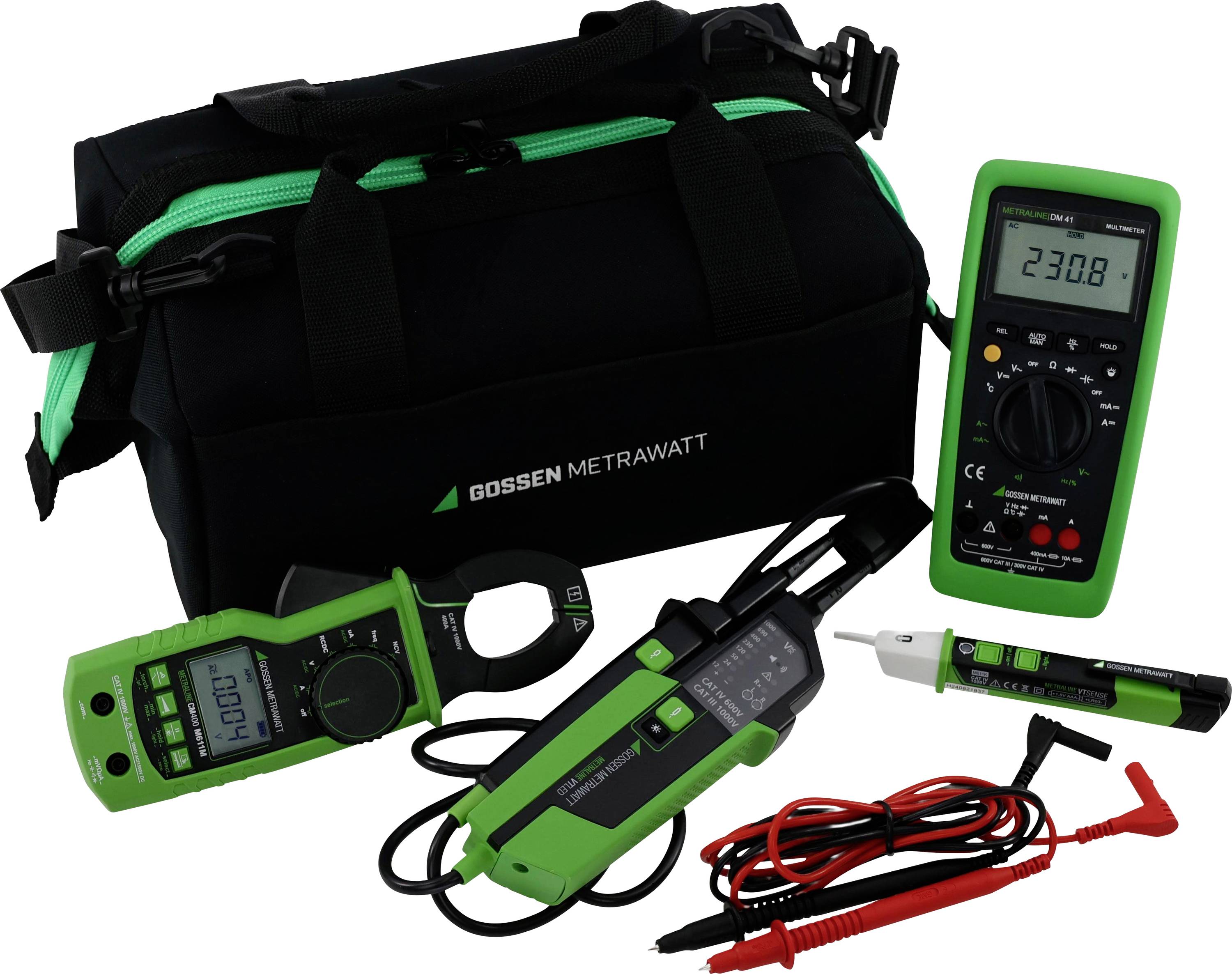

- Consisting of METALLINE DM41 RMS multimeter, METALLINE VT LED 2-pin voltage tester, METALLINE CM 400 clip-on ammeter, METALLINE VT SENSE contact-less voltage tester and SC30 softcase bag.
- Practical base equipment for basic electrical measurements, voltage tests, non-contact AC/DC current measurements and quick pre-test of live lines.
- Compact, mobile and clearly organized – safely stored and conveniently transported in the SC30 softcase bag.
- Ready to use and put together in an easy to understand way – an optimal product selection as a useful set for typical basic applications.
Technical specifications
- Voltage reading range DC (min.)
100 µV
- Product type
Handheld multimeter
- Voltage DC reading range (max.)
600 V
- V AC reading range (min.)
100 µV
- V AC reading range (max.)
600 V
- Amperage reading range DC (min.)
10 µA
- A DC reading range (max.)
10 A
- A AC reading range (min.)
10 µA
- Amperage reading range AC (max.)
10 A
- Reading range - capacity
0.000001 µF - 200 µF
- Frequency reading range
0.000001 kHz - 500 kHz
- Temperature
-50-1300 °C
- Basic accuracy
0.4 %
- Height
53 mm
- Width
86 mm
- Length
188 mm
- Weight
480 g
Manufacturer's standards (with certificate)
- Reading category
CAT IV 300 V
- Voltage metering
AC/DC
- Current reading
AC/DC
- Type
METRALINE BASE KIT
- Display
Digital
- Display (counts)
4000
- Dim
(L x W x H) 188 x 86 x 53 mm
- Temperature reading range (max.)
1300 °C
- Temperature reading range (min.)
-50 °C
- Features
incl. voltmeter
incl. bag
IP52
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3819819 Gossen Metrawatt METRALINE BASE KIT Handheld multimeter Digital incl. voltmeter, incl. bag CAT IV 300 V Display (counts)
Description
With the METROLINE BASE KIT, users receive a compact complete solution that sensibly connects several measurement and test tasks with one another. This not only saves on procurement costs, but also ensures that the most important devices are available together at all times.
This text is machine translated.
This text is machine translated.
Features
- RMS MULTIMETER METALLINE DM41
- 2-pin voltage tester METALLINE VT LED
- Clip-on ammeter METALLINE CM 400 for non-contact AC and DC current measurement
- Contact-free voltage tester METRALINE VT SENSE
- Softcase-Bag SC30
