Name: Gossen Metrawatt METRALINE PV 1500 PV multimeter Digital incl. testing cable CAT IV 1000 V Display (counts): 4
Brand: Gossen Metrawatt
SKU: 3558193
Availability: InStock

Highlights & Details

METRALINE PV 1500

CAT IV 1000 V

Technical specifications

Diode test, torch, self-test

Voltage reading range DC (min.): 1 mV

Product type: PV multimeter

Voltage DC reading range (max.): 1500 V

V AC reading range (min.): 1 mV

V AC reading range (max.): 1000 V

Amperage reading range DC (min.): 0.2 A

A DC reading range (max.): 1000 A

A AC reading range (min.): 0.2 A

Amperage reading range AC (max.): 1000 A

Reading range - resistance: 40 MΩ

Reading range - capacity: 100 µF

Frequency reading range: 9.99 MHz

Measurement type (details): True RMS

Height: 255 mm

Width: 43 mm

Length: 81 mm

Weight: 300 g

: Manufacturer's standards (no certificate)

Reading category: CAT IV 1000 V

Voltage metering: AC/DC

Current reading: AC/DC

Type: METRALINE PV 1500

Display: Digital

Display (counts): 4

Dim: (L x W x H) 81 x 43 x 255 mm

Features: incl. testing cable

Opening range of current clamps: 35 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3558193 Gossen Metrawatt METRALINE PV 1500 PV multimeter Digital incl. testing cable CAT IV 1000 V Display (counts): 4

User & Safety Instructions

User & Safety Instructions 3558193 Gossen Metrawatt METRALINE PV 1500 PV multimeter Digital incl. testing cable CAT IV 1000 V Display (counts): 4

Description

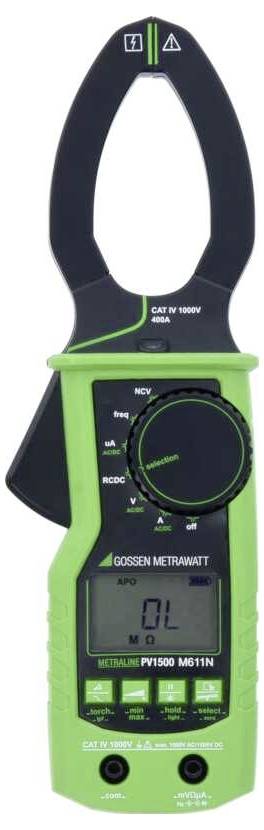

The METALLINE PV 1500 is the optimal solution for the effective current measurement of AC/DC in busbars up to 1000 A. This large-format, drop-shaped current clamp is designed especially for measurements at busbars. Equipped with an LCD display with background lighting, automatic cut-off and LPF, this innovative device offers a wide range of measuring functions, from resistance measuring to contactless voltage detection. Certified according to CAT IV 1000V – CAT III 1500V the METALLINE PV 1500 ensures the highest safety and is an indispensable tool for every electrical technician.

This text is machine translated.

Features

Current measurement AC/DC up to 1,000A
µA-Measurement AC/DC for HVAC current measurement
Voltage measurement AC / DC up to 1500VDC
Highest safety with measuring category CAT IV 1000V – CAT III 1500V
TRMS
Resistance measurement
Capacitance testing
Frequency measurement
Diode test and continuity check
Contact-free voltage detection
LPF (low-pass filter)
Torch
LCD with lighting Automatic shutdown
Self-test

Scope of delivery

2 test leads (1 × red, 1 × black);2 batteries (1.5 V, AAA, IEC LR03); operating instructions
