Gossen Metrawatt PROFiTEST MF XTRA 0105-Set VDE tester kit, Electrical tester set Calibrated to (DAkkS standards) VDE st
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Number
Total (€ 3,646.22 / piece)
€
Highlights & Details
Test set for repeat testing according to DIN VDE 0105-100 for testing the effectiveness of protective measures on electrical installations.
- Context-sensitive color graphic displayMeasurement and test procedure - simple creation of the plant structure / measuring & saving / generating logs Pre-configured and self-programmable test sequences for quick testing of electrical systems Memory concept for up to 50,000 recordsTesting all current all-current sensitive RCDs, RDC-DD, RCMBProtection of the operator by PE detection when used by finger contactTest of differential current monitoring devicesTesting of insulation monitoring devicesFuture-oriented connectivityFour-wire measuring technology - no compensation of the measurement leads required
Technical specifications
- Display:Context-sensitive color graphic display Soft key buttons Allows you to conveniently select sub-functions And parameters. Unavailable subfunctions and Parameters are automatically hidden.Special measurements:Selective earth resistance RE (mains operation)With 2-pin adapter, probe, earthing and clip-on current sensor(3-pole measurement method)Measurement potential equalizationCurrent measurement with pliers Field directionEarth leakage resistance RE(ISO)Voltage dropLocation isolation ZSTCounter start (kWh test)Testing of E-loading columns andElectric vehicles on E-loading pillars (IEC 61851-1)Earthing resistance RE (battery-operated)3- or 4-pole measurement method via adapter PRO-RESpecific earth resistance (battery-operated)(4-pole measurement method via adapter PRO-RE)Testing of insulation monitoring devices (IMDS)Checking differential current monitoring devices (RCMS)Leakage current with Adapter PRO-ABCheck residual voltage (Ures) Intelligent ramp for RCD testing(Testing tripping time and tripping current with only one measurement)Logging of error simulations on PRCDs with thePROFITEST PRCD adapterInclusive IZYTRONIQ database software for managing equipment, machinery, equipment and medical devices in combination with locations across a double tree structure and for managing auditors, test equipment, catalogs and sequences.
- Product type
VDE tester kit
DAkkS standards
- Reading category
CAT III 600 V
CAT IV 300 V
- Interfaces
USB
- Dim
(L x W x H) 330 x 260 x 90 mm
- Weight
2.7 kg
IP40
- Reading range (VDE)
Loop impedance
RCD testing (AC, A, F, B, B+, EV)
PRCD testing (2-pin, 3-pin, PRCDS, PRCDS+, PRCDK)
Insulation resistance
Earth resistance
Earth fault loop impedance
Earth leakage resistance
Earth leakage current
Touch voltage
Voltage
Show more
- DIN standard
DIN VDE 0100
DIN VDE 0105
DIN VDE 0113
DIN VDE 0413
DIN EN 61010-1
DIN EN 61557
- Display type
Digital
- Width
260 mm
- Height
90 mm
- Length
330 mm
- Test procedure
automated
manual
- Voltage supply
Rechargeable
Battery
- Memory (space)
50000
- Memory
Yes
- Type
PROFiTEST MF XTRA 0105-Set
- VDE standard
0100
0100-600
0105
0113
0411
0413
- Features
incl. case
incl. software
Documents & Downloads
Datasheet
Datasheet 2730563 Gossen Metrawatt PROFiTEST MF XTRA 0105-Set VDE tester kit, Electrical tester set Calibrated to (DAkkS standards) VDE st
User & Safety Instructions
User & Safety Instructions 2730563 Gossen Metrawatt PROFiTEST MF XTRA 0105-Set VDE tester kit, Electrical tester set Calibrated to (DAkkS standards) VDE st
Description
The PROFITEST MF XTRA 0105-set makes the investment decision easy for you. Because with the accessories customized perfectly to your requirements, the set is especially suitable for its testing tasks within the framework of the DGUV-regulation 3. Professional recording of the test objects and documentation of the test.
This text is machine translated.
This text is machine translated.
Features

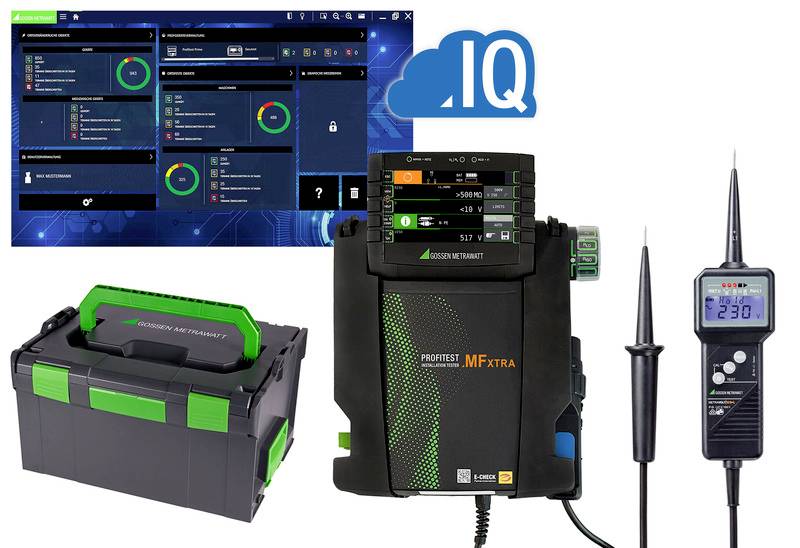

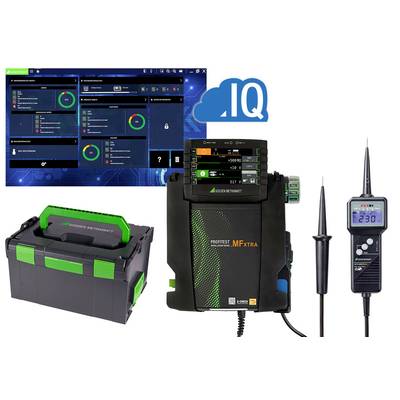

- PROFITEST MF XTRA - installation testerSortimo L-BOXX: System case with inner division for PROFITEST MF and accessories• IZYTRONIQ BUSINESS professional - database software + cloud-voucherMETRAVOLT 12D+L voltage and continuity tester
Scope of delivery
- 1 x Prof.test MF XTRA1 x earthing-contact plug inserts (country-specific)1 x 2-pin measuring adapter and1 x cable for expansion to 3-pin adapter (PRO-A3-II)2 x alligator clips1 x shoulder belt1 x set of rechargeable batteries (Z502H)1 x chargers (Z502R)1 x quick user manual1 x side sheet safety information1 x DAkkS calibration certificate1 x USB-interface cable 1 X METRAVOLT 12D+L1 x Sortimo plastic system case with inlay1 x software IZYTRONIQ BUSINESS PROFESSIONAL1 x IZYTRONIQ Cloud voucher for 12 months
