Name: GP GP Ni-MH Industrial 750 AAH 1A1P-C1 AA battery (rechargeable) NiMH 1.2 V 750 mAh 1 pc(s)
Brand: GP
SKU: 3450980
Availability: InStock

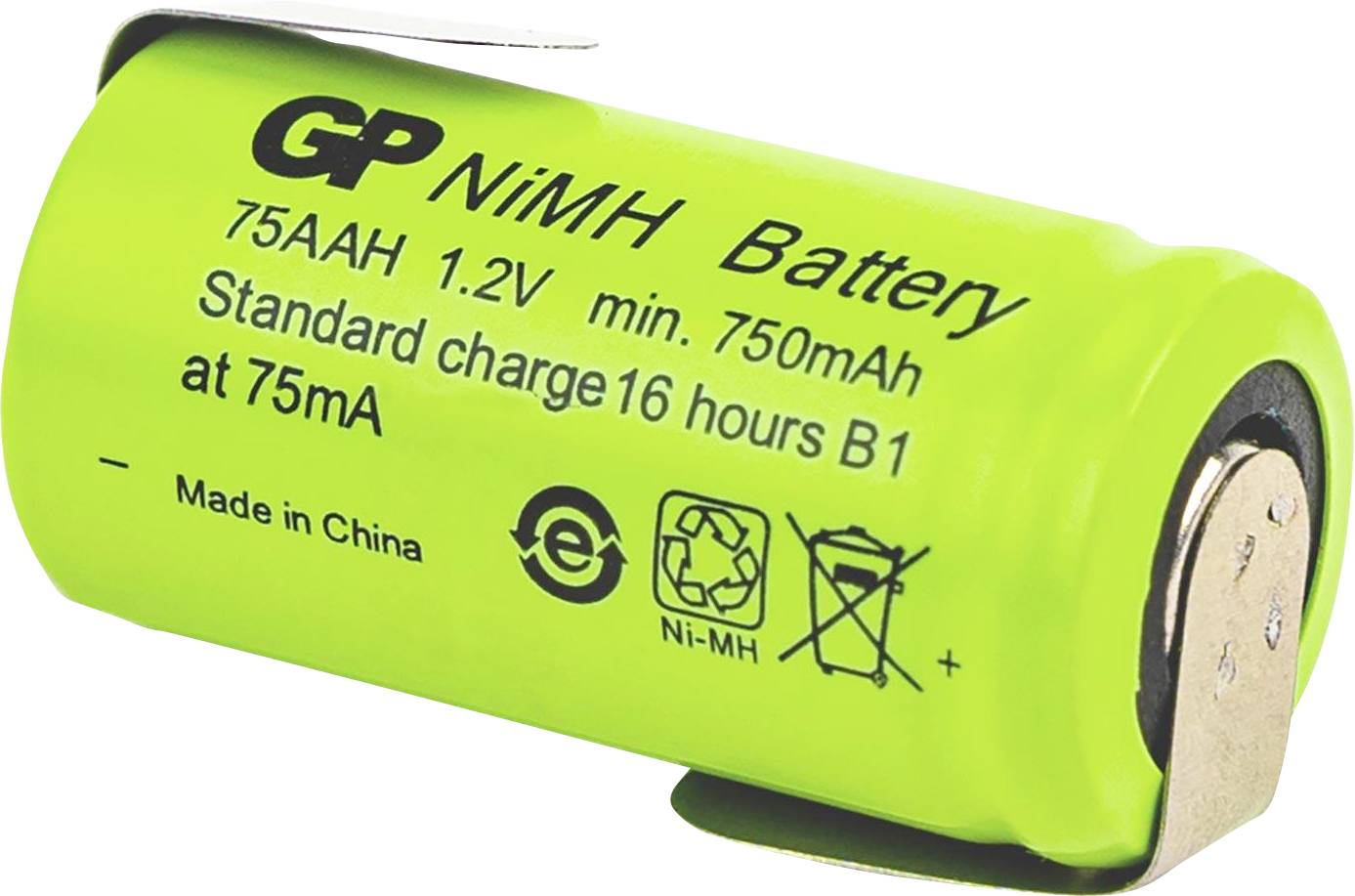

A cylindrical NiMH battery labeled '75AAH 1.2V, 750mAh'. Text includes: 'Standard charge 16 hours at 75mA'. Made in China.

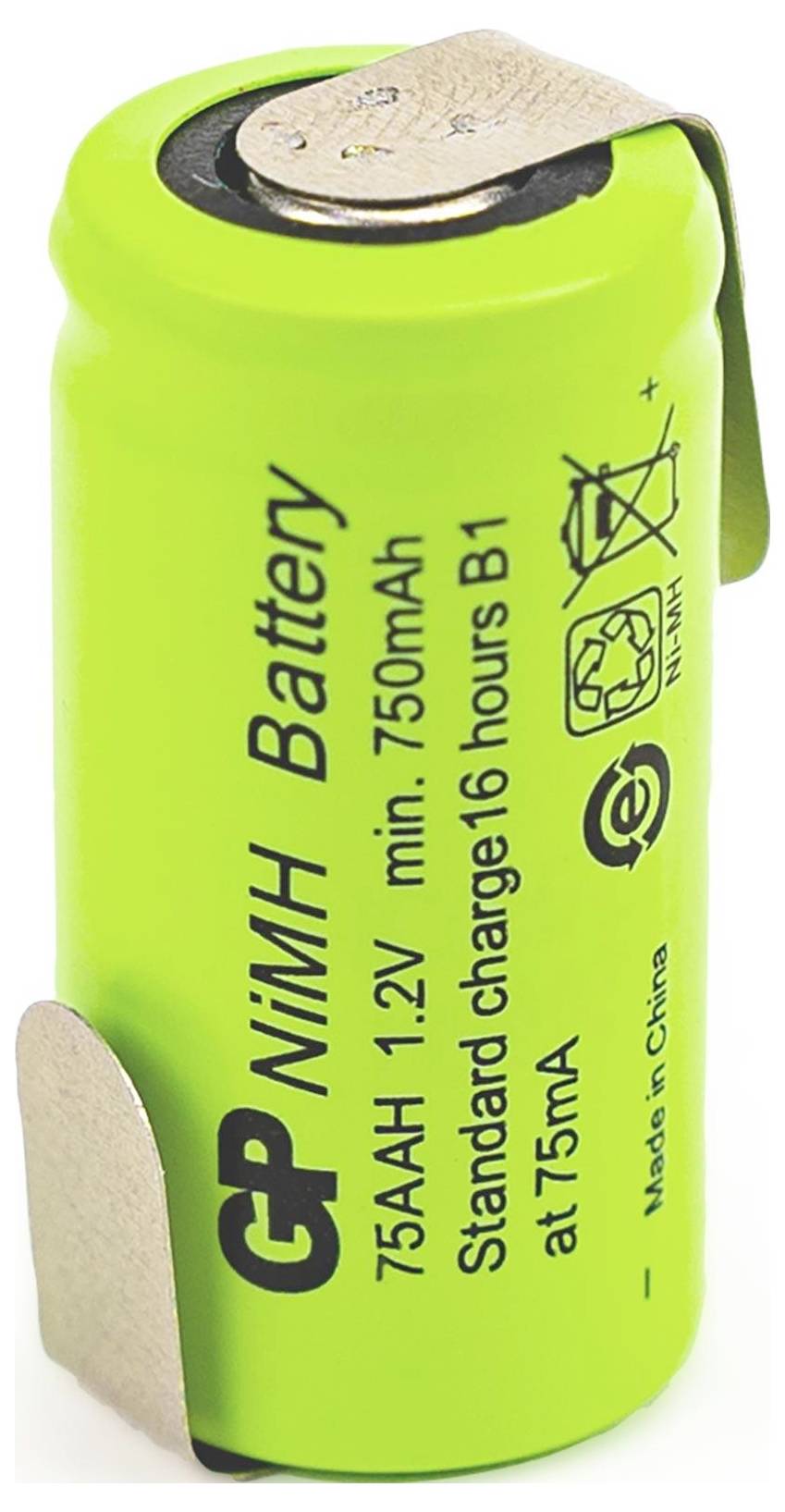

A green NiMH AA battery, 1.2V, 750mAh, 'Standard charge 16 hours at 75mA', with metal tabs attached.

GP GP Ni-MH Industrial 750 AAH 1A1P-C1 AA battery (rechargeable) NiMH 1.2 V 750 mAh 1 pc(s)-2

1/3

Datasheet (PDF)

Fast track dispatch on Thu 15 Oct

31 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 4.29 / piece)

€ 4.29

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

GP Ni-MH industrial 750 AAH 1A1P-C1, 1 pieces

Capacity 750 mAh

Technical specifications

Service life: Greater than 500 cycles (IEC61951-2)
Charging options: Standard charging (75mA, 16 hours) and quick charging (375mA-750mA, charging monitoring required)
Temperature range: Charging 0°C to 45°C,
Discharge: -20°C to 50°C.
Overload protection: 75mA continuous over 1 year without deformation or leakage internal
Resistance: Average 35mΩ at full charge

Product type: AA battery (rechargeable)

Technology: NiMH

Voltage: 1.2 V

Capacity (mAh, Ah): 750 mAh

Height: 28.7 mm

(Ø): 14.5 mm

Content: 1 pc(s)

Type: GP Ni-MH Industrial 750 AAH 1A1P-C1

Rechargeable: No

Dim: (Ø x H) 14.5 mm x 28.7 mm

Documents & Downloads

Datasheet

Datasheet 3450980 GP GP Ni-MH Industrial 750 AAH 1A1P-C1 AA battery (rechargeable) NiMH 1.2 V 750 mAh 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3450980 GP GP Ni-MH Industrial 750 AAH 1A1P-C1 AA battery (rechargeable) NiMH 1.2 V 750 mAh 1 pc(s)

Description

GP75AAH industrial NiMH battery cell

The GP75AAH is an industrial NiMH battery cell, which was developed for applications that require a reliable and durable energy source. With a rated voltage of 1.2V and a capacity of 750mAh, this cell provides a stable power supply and a long service life of over 500 charging cycles according to IEC61951-2 standards. Equipped with a soldering thread, for easy integration in battery packs and industrial applications, this cell is suitable for discharge currents from 75mA to 2250mA. The GP75AAH supports both standard and quick charge options, with quick charge monitoring required (375mA-750mA) to prevent overcharging and overheating.1 packs.

This cell is designed exclusively for industrial applications and is not suitable for retail trade.

This text is machine translated.
