Name: Green Cell GC-AGM12V90AH-J VRLA AGM 90 Ah 12 V 1 pc(s)
Brand: Green Cell
SKU: 3773477
Availability: BackOrder

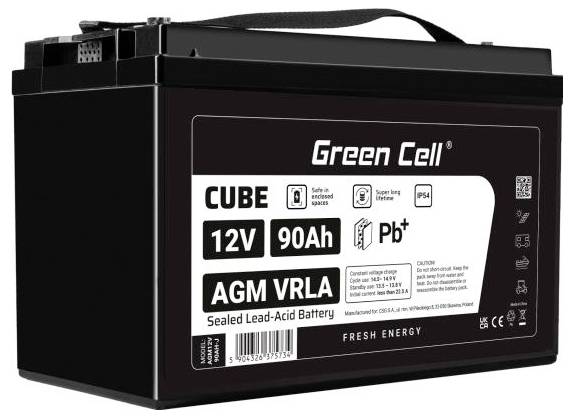

Black Green Cell Cube 12V 90Ah AGM VRLA sealed lead-acid battery with carry handle and front label.

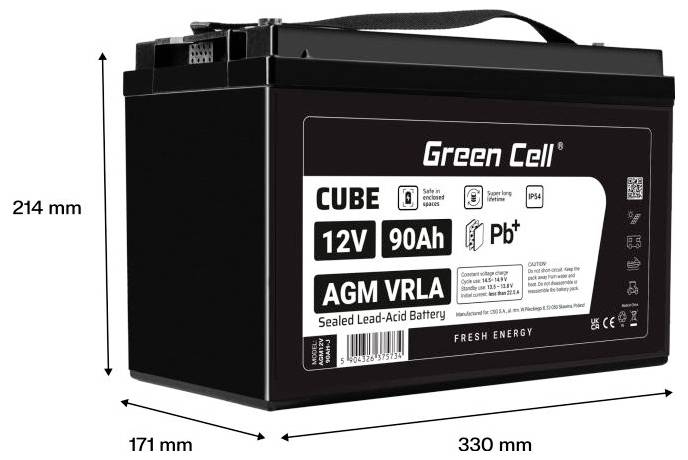

Black Green Cell CUBE 12V 90Ah AGM VRLA sealed lead-acid battery, labeled 330 mm long, 171 mm wide, and 214 mm high.<br>

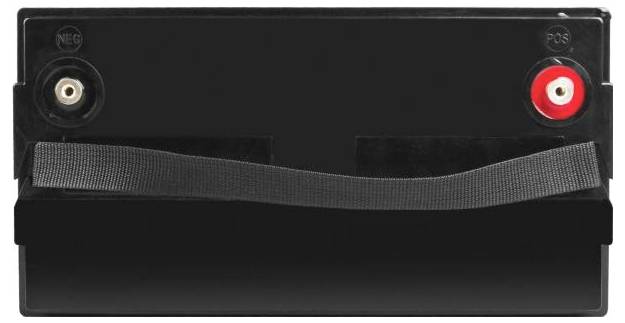

Black battery with positive and negative terminal posts, labeled red 'POS' and black 'NEG', shown front view with carrying strap.

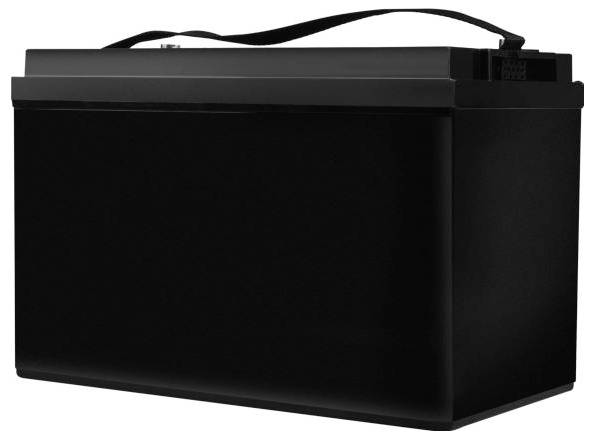

Black rectangular battery pack with a top handle against a white background.

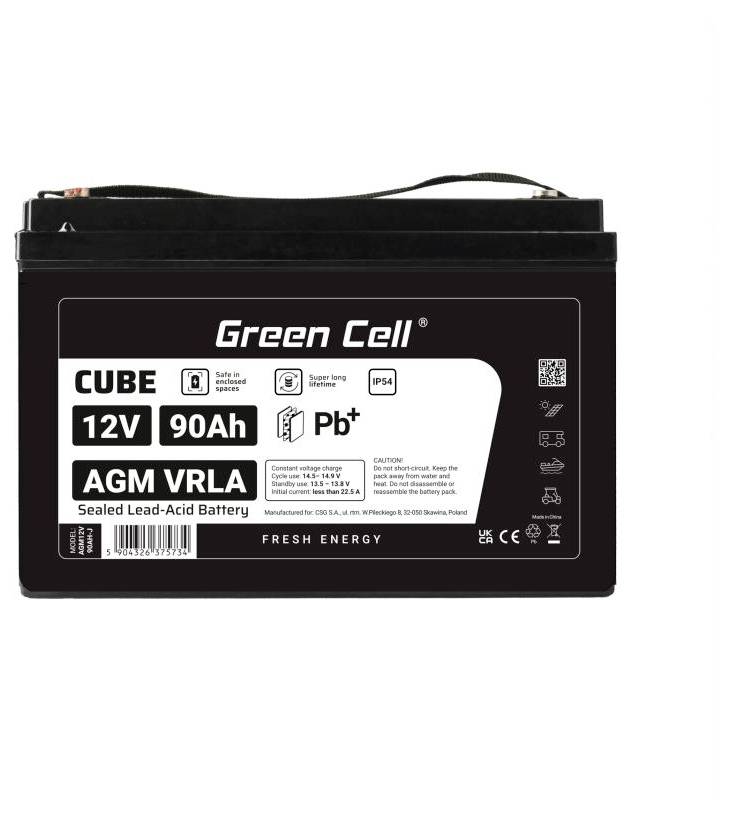

Black Green Cell 12V 90Ah AGM VRLA sealed lead-acid battery with top handle and product label.

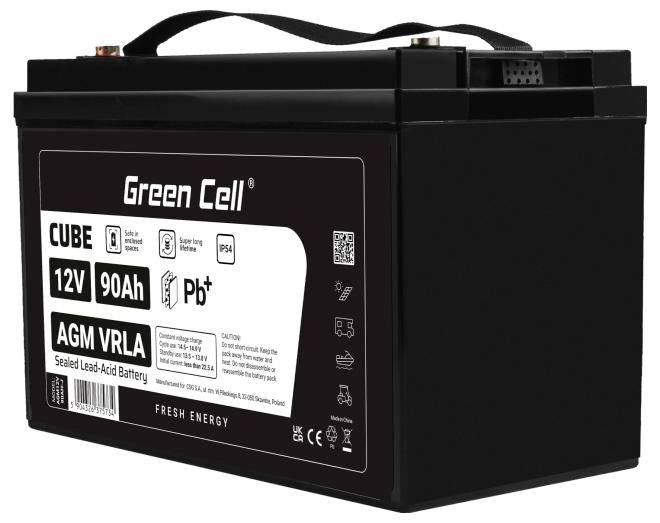

Black Green Cell 12V 90Ah AGM VRLA sealed lead-acid battery with handle and product label.

1/6

Datasheet (PDF)

Dispatches on Thu 29 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 174.99 / piece)

€ 174.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Green Cell GC-AGM12V90AH-J VRLA AGM 90 Ah 12 V 1 pc(s)

Self-discharge: 2% per month (at 25 °C)
Intended use: For boats and photovoltaic systems
Capacity by temperature (40 °C – 102%) (25 °C – 100%) (0 °C – 85%) (-15 °C – 65%)
Trickle charge 13.5 – 13.8 V (-20 mV/°C)
Cyclic charging: 14.5 – 14.9 V (-30 mV/°C)
Maximum charging current 27 A.

Technical specifications

Maximum charging current 27.00 A.
Peak discharge rate (max. 5 s): 900.00 A
Short circuit current 1,760 A
Housing protection class IP54 (durable and sealed)
Lifetime: Up to 5 years in buffer mode or at least 260 full cycles in cyclic operation
Charging voltage (buffer mode): 13.5 - 13.8 VDC (or 2.275 V/cell at 25°C) Charging voltage (cyclic operation): 14.4 - 15.0 VDC (or 2.45 V/cell at 25°C) Inner resistance (fully charged): 4.94 mOhm (at 25°C)

Product type: VRLA

Technology: AGM

Voltage: 12 V

Capacity (mAh, Ah): 90 Ah

Height: 218 mm

Weight: 24.6 kg

Content: 1 pc(s)

Type: GC-AGM12V90AH-J

Rechargeable: Yes

Connector: M5 connector

Voltage: 1.2 V

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3773477 Green Cell GC-AGM12V90AH-J VRLA AGM 90 Ah 12 V 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3773477 Green Cell GC-AGM12V90AH-J VRLA AGM 90 Ah 12 V 1 pc(s)

Description

The AGM Cube IP54 battery represents a new level of quality for Greencell batteries, in which the safety of the user is emphasized, WAS is certified by the IP54 certification. The number "5" indicates a high level of protection against access to hazardous parts and dust resistance, while the number "4" stands for water tightness and protection against splash water from all directions. This ensures that the AGM battery is maximum safe even for beginners.

This text is machine translated.
